Summary of Contents for Blizzard Lighting Kontrol 5

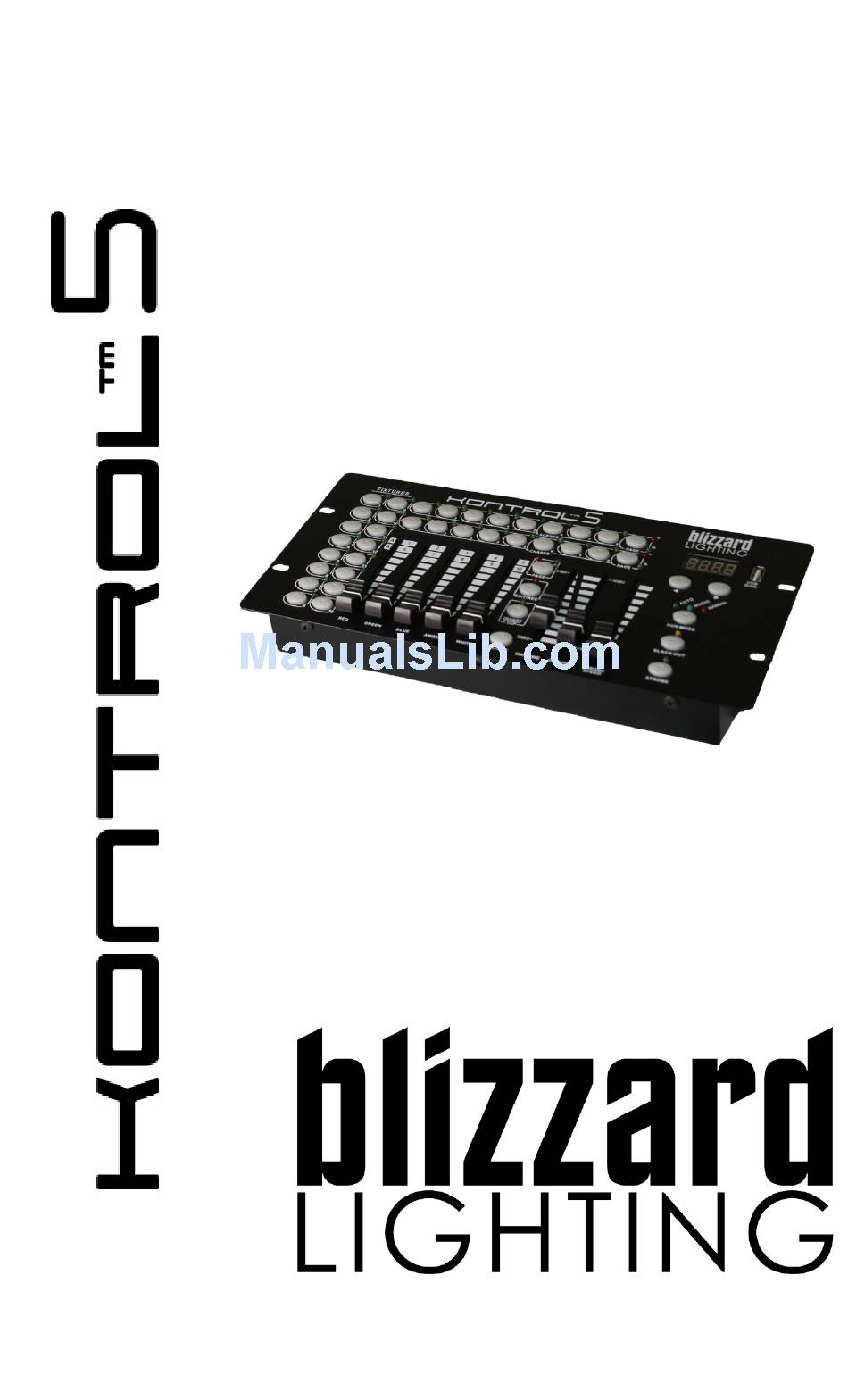

- Page 1 COPYRIGHT 2012-13 BLIZZARD LIGHTING, LLC WISCONSIN, USA...
-
Page 2: Table Of Contents
3.6.2 Data Load 3.6.3 Firmware Update 4. APPENDIX 4.1 A Quick Lesson On DMX 4.2 Keeping Your KONTROL 5 As Good As New 4.3 Returns (Gasp!) & Shipping Issues 4.5 TECH SPECS! KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. -
Page 3: Getting Started
We could tell just by lookin’ atcha. You’re a bit of a control freak, aren’t ya? Just kidding! CONGRATULATIONS! You’ve purchased a GREAT little DMX controller! Bravo! Now that you’ve got your KONTROL 5™, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Important Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzard- lighting.com. 1.5 Instructions on Our Instructions We try to make these manuals easy to read and as fun as reading an in- struction manual can be. -
Page 5: Introduction
All chases can be executed at the same time. On the surface you will find various programming tools such as 5 RGBAW/ universal channel sliders, quick access fixture and scene buttons, and an LED display indicator for easier navigation of controls and menu functions. 2.3 Nifty, Spiffy Diagram (front) KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. ALL RIGHTS RESERVED Page 5... -
Page 6: Nifty, Spiffy Diagram (Back)
Plug in ONLY the included AC/DC adaptor here. DMX Output Connector 3-pin DMX output - this is where all the magic happens 2.4 Nifty, Spiffy Diagram (back) KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. Page 6 ALL RIGHTS RESERVED... -
Page 7: Common Terms
Playbacks can be either scenes or chases that are directly called to execution by the user. A playback can also be consid- ered program memory that can be recalled during a show. KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. ALL RIGHTS RESERVED... -
Page 8: Operating Instructions
The table above refers to a standard 9-DIP Switch binary con- figurable device. 3.1.3 The LED Display Screen KONTROL 5 features a 4-position LED display which provides information about the current mode, function and status of the controller. The messages displayed on the screen are detailed here: LED Display Means... -
Page 9: Resetting The System
Enter programming mode as described in Section 3.2.1. Select the desired scene bank using <LEFT/RIGhT>. Hold <DEL/CLEAR>, then press the <SCENE 1-8> button you wish to delete. KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. ALL RIGHTS RESERVED Page 9... -
Page 10: Chase Programming
3.4 Chase Programming A chase is a sequence of different scenes or steps which are called one after another. KONTROL 5 can store up to 16 programs of 200 scenes each. 3.4.1 Creating A New Chase Enter programming mode as described in Section 3.2.1. -
Page 11: Playback
Manually (Manual Chase Mode). We’ll look at all the options now. 3.5.1 Manual Control Mode Allows the user to create a precise static color using KONTROL 5’s 4 control faders. Ensure that BLACKOUT mode is not selected, IE that the LED indica- tor above the <BLACKOUT>... -
Page 12: Auto Mode
In manual mode, the chases will move through their individually steps only when triggered manually by the user. Follow the steps indicated in Section 3.5.3. KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. Page 12 ALL RIGHTS RESERVED... -
Page 13: Playback Override
Allows the user to stop all fixture output immediately (except while strobing is active). Press the <BLACKOUT> button. All output will cease. The LED indicator will illuminate. Press the <BLACKOUT> button again, and playback will resume KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. ALL RIGHTS RESERVED Page 13... -
Page 14: Usb Functions
( ) as indicated above 3.6.3 Firmware Update Allows the user to upgrade KONTROL 5’s internal firmware from a USB Flash “Thumbdrive.” WARNING: AFTER STARTING FIRMWARE UPGRADE, DO NOT POWER DOWN KONTROL 5 UNTIL THE UPGRADE FINISHES!!! UNPLUG ALL FIXTURES FROM KONTROL 5 PRIOR TO PROCEEDING. - Page 15 Turn the unit off. With the unit off, press and hold the <EDIT/REC> & <LEFT> but- tons. Continue to hold the button combination until Kontrol 5’s LED display UP-- shows “ .” Release the button combination, then press any button to proceed with the upgrade.
-
Page 16: Appendix
KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. Page 16... -
Page 17: Keeping Your Kontrol 5 As Good As New
4.2 Keeping Your KONTROL 5 As Good As New The KONTROL 5 you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 18: Tech Specs
Output 3-pin XLR Female USB Data Format USB Specification Disk Format FAT16 / FAT32 ONLY Maximum Disk Size Know What? Chicken Butt! Warranty 2-year limited warranty. KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. Page 18 ALL RIGHTS RESERVED... - Page 19 Your mom misses you! Write her a quick note here! (And give this page a reason for living). KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. ALL RIGHTS RESERVED Page 19...
- Page 20 KONTROL 5 Manual Rev A. © 2012-13 Blizzard Lighting, LLC. Page 20 ALL RIGHTS RESERVED...
