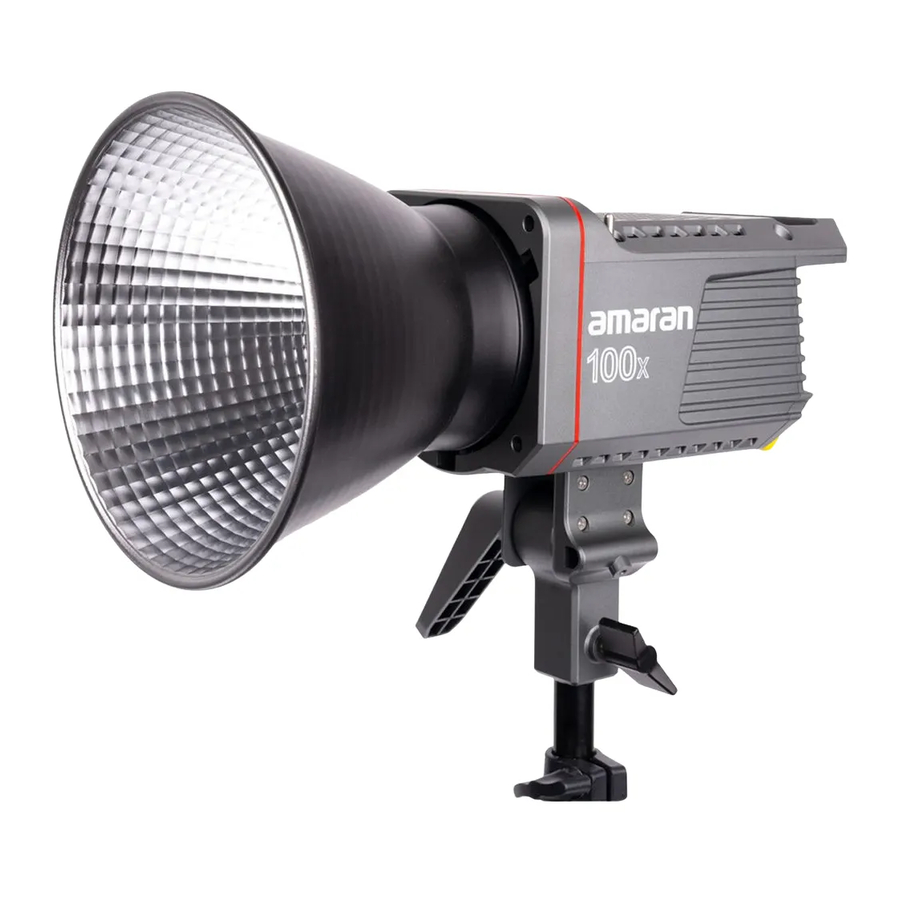

Aputure Amaran 100x - Lighting Equipment Manual

Check list

When you unbox the product, please make sure all the items listed below are included.
Otherwise, please contact the seller immediately

Product Details

1. Light


Installations

1. Attaching/detaching the protection cover
   Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out. Reverse rotation will put the protective cover into.

   * Notice: Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away.
2. Installation and removal of 55° Reflector
   Push the lever handle according to the arrow direction shown in the picture, and rotate the 55° Reflector into it. Rotating in the opposite direction pulls out the 55° Reflector.


3. Setting up the Light
   Adjust the lamp body to the appropriate height, rotate tie-down to fix the lamp body on the tripod, then adjust the lamp body to the required angel, and tighten the lock handle.


4. Soft light umbrella installation
   Insert the soft light handle into the hole and lock the lock knob on the hole.


5. Adapter mounting
   Run the wire rope through the adapter clasp and hang it on the bracket.


The power supply

Powered by AC

* Please press the spring-loaded lock button on the power cord to remove the power cord. Do not pull it out forcibly.

Operations

1. Press the power button to turn the light on and off


2. Manual control
   1. Brightness adjustment
      1. Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness change range is (0-100) %, and display the change of (0-100) % in real time on the LIGHT body OLED display;
      2. Click the INT adjustment knob to quickly switch the brightness level: 20%→40%→60%→80%→100%→20%→40%→60%→80%→ 80%→ 40%→60%→80%→100% cycle switch.


   2. CCTS adjustment
      1. Rotate the CCT adjusting knob to increase or decrease with 100K as the change amount to change the current CCT value (2700K-6500K), and display (2700K-6500K) CCT value in real time on the light body display screen.
      2. Click the CCT adjustment knob to quickly switch the color temperature shift: 2700K→3200K→4300K→5500K→6500K→2700K→3200K→4300K→5500K→6500K cycle switch.


3. Wireless mode adjustment
   The user can connect the light body named Amaran 100x-xxxxxx through the bluetooth of the mobile phone or tablet (Bluetooth serial number). At this time, the light body can be controlled wirelessly through the mobile phone or tablet. When the light effect is controlled by APP, the word "FX" is displayed in the upper left corner of LCD.
   In wireless mode, 9 lighting effects can be controlled through App: paparazzi, fireworks, faulty bulb, lightning, TV, pulse, flash, explosion and Fire. And App can control all kinds of light effect CCT, brightness, frequency.
4. Reset Bluetooth
   1. Long press the Bluetooth Reset button to reset bluetooth.
   2. During the Reset process, the LCD displays BT Reset and the Bluetooth icon is flashing, and the percentage shows the current Reset progress (1%-50%-100%).


   3. The LCD will display [Success] 2 seconds after the Bluetooth reset is successful.


   4. If the Bluetooth reset is unsuccessful, the LCD will display [Failure] and disappear after 2 seconds.


   5. After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to connect to and control the light.
5. OTA mode
   Firmware updates can be updated online via the Sidus Link app for OTA updates.


6. Using the Sidus Link APP
   You can download the Sidus Link app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit sidus.link/app/help for more details regarding how to use the app to control your Aputure lights.

   Sidus.link/app/help

   Get Sidus Link^® App

Specifications

Photometrics

* This is an averaged result, the number might be slightly different on each light.
