Summary of Contents for Aputure amaran 150c

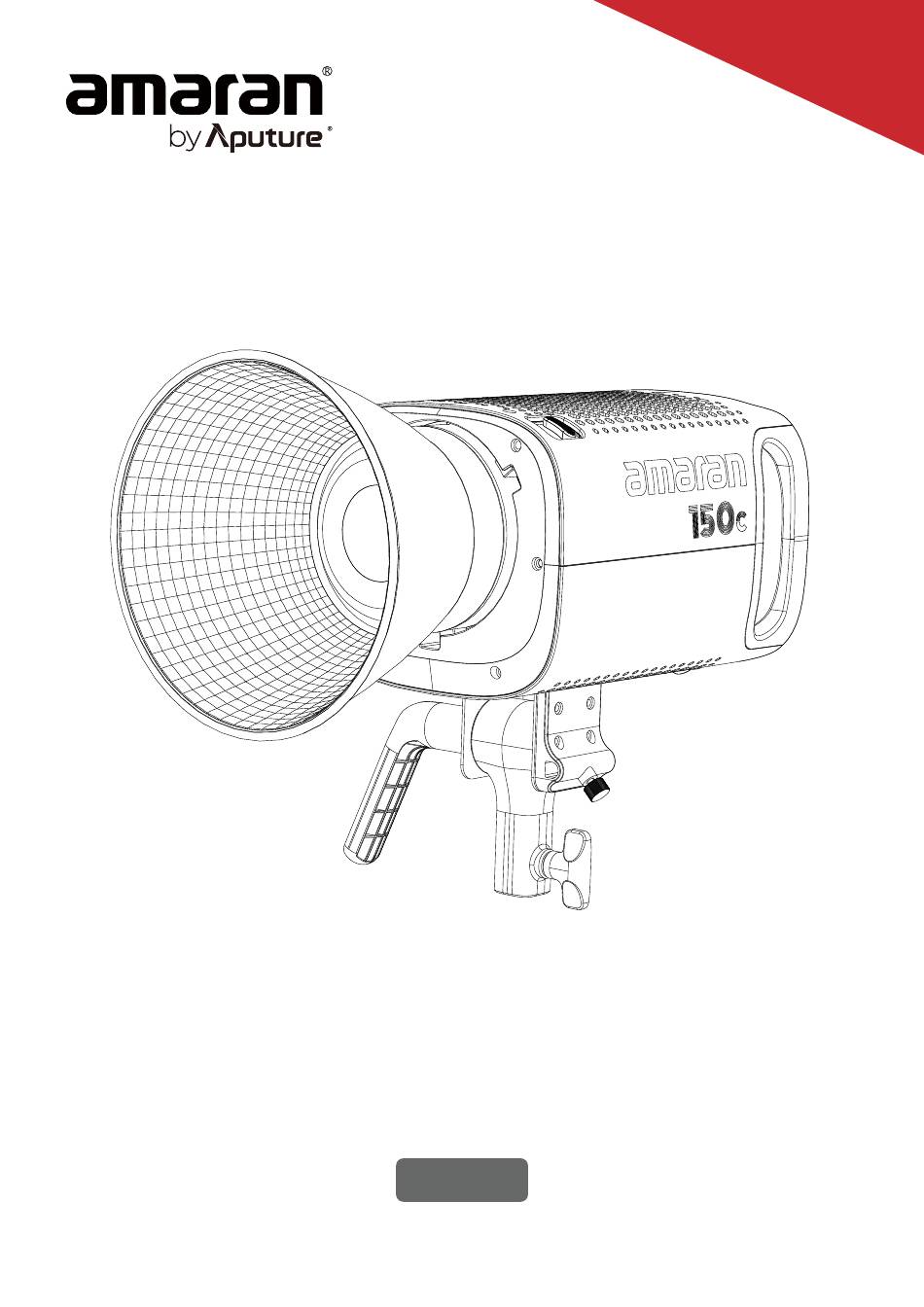

- Page 1 150c Product Manual English...
-
Page 2: Important Safety Instructions

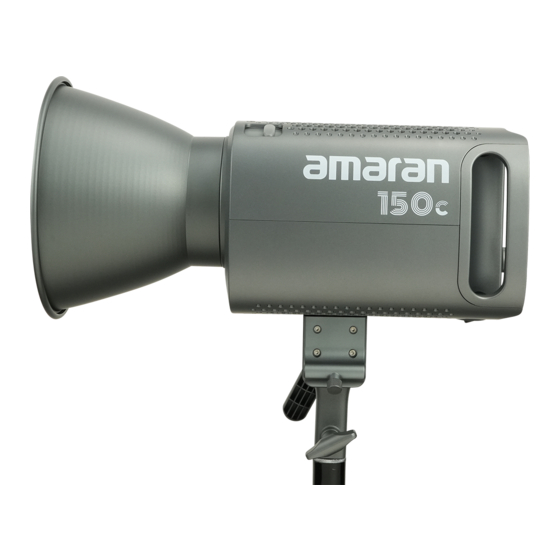

Thank you for purchasing the "amaran" series of RGBWW COB lights - amaran 150c. Amaran 150c is a 150W full color LED light. It has a new and colorful appearance design and supports full-color output of light sources. Advanced software interaction design, minimalist control method, compatible with Sidus Link®... -
Page 3: Components List
This device has been evaluated to meet general RF exposure requirements. Components List Please make sure all accessories listed below are completed before using. If not, please contact with your sellers immediately. amaran 150c Standard Kit： amaran 150c×1 Power Adapter×1 Hyper reflector×1... -
Page 4: Product Details
Product Details Protective cover Bowens mount Bowens mount Hyper reflector release button COB chipset Soft light umbrella hole Locking handle Locking knob Tie Down LCD Display Bluetooth reset button CTR knob INT knob Power button DC-in connector... -
Page 5: Installations
Installations 1.Detaching /attaching the Protection Cover Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out. Reverse rotation will put the protective cover into. WARNING Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away. -
Page 6: Power Supply
4. Soft light umbrella installation Insert the soft light handle into the hole, then lock the locking knob. 5. Power supply Powered by AC. AC 100V-240V *Please press the button on the DC interface to remove the power cord from the lamp. Do not pull it out forcibly. *Please press the spring-loaded lock button on the power cord to remove the power cord. -
Page 7: Manual Control
2.Manual Control CCT Mode HSI Mode 2.2.1 CCT Rotate the INT knob to adjust intensity level. Press the CTR knob to select CCT or G/M and rotate the knob to adjust the corresponding value. INT (Intensity): 0.0 - 100.0 % CCT (Correlated Color Temp.): 2500 K - 7500 K G/M (Green / Magenta adjustment): -1.0 ~ +1.0 2.2.2 HSI... - Page 8 Connect Sidus Link® APP, the user can find the Bluetooth serial number corresponding to the lamp in the APP and connect. When controlling the light effect through the APP, "FX" will be displayed on the upper left corner of the screen. In wireless mode, 9 lighting effects can be controlled through APP: Paparazzi / Lightning / TV / Fire / Faulty Bulb / Pulsing / Cop Car / Party Lights / Fireworks.
- Page 9 You can download the Sidus Link® app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit Sidus.link/app/help for moredetails regarding how to use the app to control your Aputure® lights. Get Sidus Link...
-
Page 10: Specifications
Specifications DC Power Input (Max) Power Output (light) 180 W 150 W 2500 K - 7500 K±300K ≥95 TLCI ≥95 3200K/5600K：≥95 SSI (D32) SSI (D56) 3200K/5600K：≥95 TM-30 Rf（avg.） TM-30 Rg（avg.） Beam angle 11196 lm (5600K) Luminous flux Naked：86°， Operating Voltage Operating Current DC 48V Hyper reflector：63°... - Page 11 Photometrics Fresnel 2X Fresnel 2X LS 600 Hyper Distance Bare Bulb reflector /lux Spot/lux Flood/lux 4160 12380 13020 26340 2300 K 1046 1690 3210 1185 4610 13680 14420 29120 1156 1870 3570 3200 K 1306 5120 15110 15960 32300 1275 2072 3950 4300 K...
