- Page 1 213pt 100pt amaran 200x S Product Manual English...
-
Page 2: Important Safety Instructions

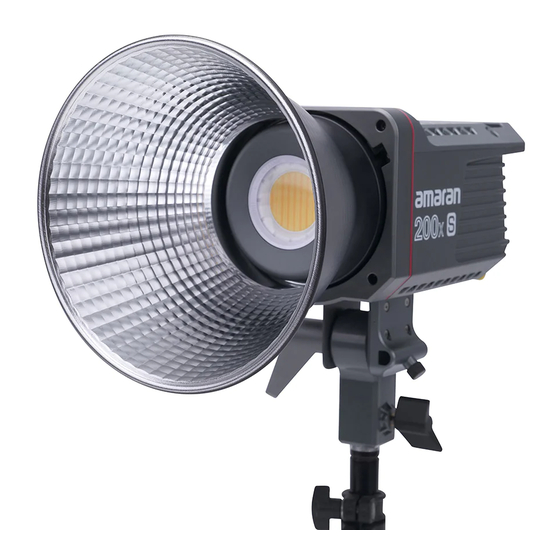

Thank you for purchasing the "amaran" series of RGBWW COB lights - amaran 200x S. Amaran 200x S is a 200W full color LED light. It has a new and colorful appearance design and supports full-color output of light sources. Advanced software interaction design, minimalist control method, com- patible with Sidus Link®... -
Page 3: Fcc Compliance Statement
We recommend only using the original Aputure® cable accessories. Please note that any malfunc- tions caused by using unauthorized accessories are not covered by the warranty. The user may pay for maintenance. This product is certified by CE, ROHS, UKCA, FCC, IC, RCM, PSE, KC, inspection report, NCC. Please operate the product in full compliance with relevant country's standards. -
Page 4: Components List
Components List Please make sure all accessories listed below are completed before using. If not, please contact with your sellers immediately. amaran 200x S Standard Kit: Protection Cover (1 pc) amaran 200x S (1 pc) Cable Tie Hyper-Reflector Power Adapter... -
Page 5: Installations
Bowens Mount Release Latch Bowens Mount COB chipset Hyper reflector Soft light umbrella hole Locking knob Locking handle Tie Down OLED Display INT knob CCT knob Bluetooth Reset key DC-in connector Power switch button Installations 1.Detaching /attaching the Protection Cover Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out. - Page 6 Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away. 2. Attaching/detaching the Reflector Push the lever handle according to the arrow direction shown in the picture, and rotate the reflector into it.
-
Page 7: Power Supply
5. Adapter mounting Run the wire rope through the adapter clasp and hang it on the bracket. 6. Power supply Powered by AC. AC 100V-240V *Please press the button on the DC interface to remove the power cord from the lamp. Do not pull it out forcibly. *Please press the spring-loaded lock button on the power cord to remove the power cord. -
Page 8: Manual Control
2.Manual Control 2.1 Menu 2.2 INT / CCT 2.2.1 Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness change range is (0~100) %, and display the change of (0~100) % in real time on the LCD display. Click the INT adjustment knob to quickly switch the brightness level: 20%→40%→60%→80%→100%→20% →40%→60%→80%→100% cycle switch. - Page 9 2.3 FX Connect Sidus Link® APP, the user can find the Bluetooth serial number corresponding to the lamp in the APP and connect. When controlling the light effect through the APP, "FX" will be displayed on the upper left corner of the screen. In wireless mode, 9 lighting effects can be controlled through APP:Pa- parazzi / Fireworks / Faulty Bulb / Lightning / TV / Pulsing / Strobe / Explosion / Fire.
-
Page 10: Specifications
You can download the Sidus Link® app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit Sidus.link/app/help for more details regarding how to use the app to control your Aputure® lights. Sidus.link/app/help Specifications... - Page 11 AC：100V-240 V / 2.7 A Sidus Link® App Operating temperature Storage temperature -10℃ ~ +40℃ -20℃ ~ +80℃ Firmware Remote control Sidus Link® App ≤ 100 m upgrade method distance(Bluetooth) Display Cooling method Active Dimensions 207×115×115 mm/ (Bracket not included) 8×5×5 in Weight 1560 g / 3.4 lbs...
