Summary of Contents for Aputure amaran 300c

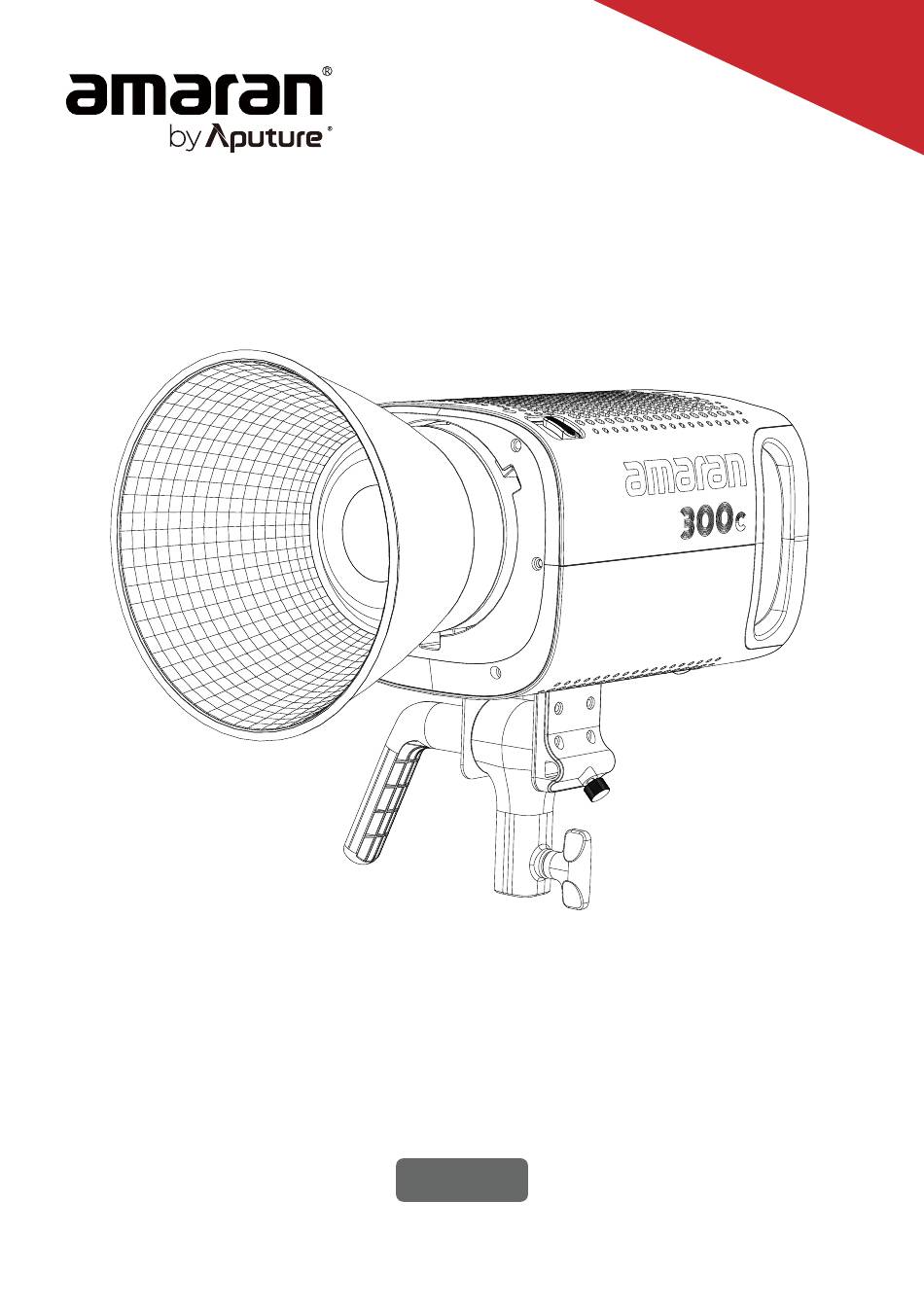

- Page 1 300c Product Manual English...
-
Page 2: Important Safety Instructions

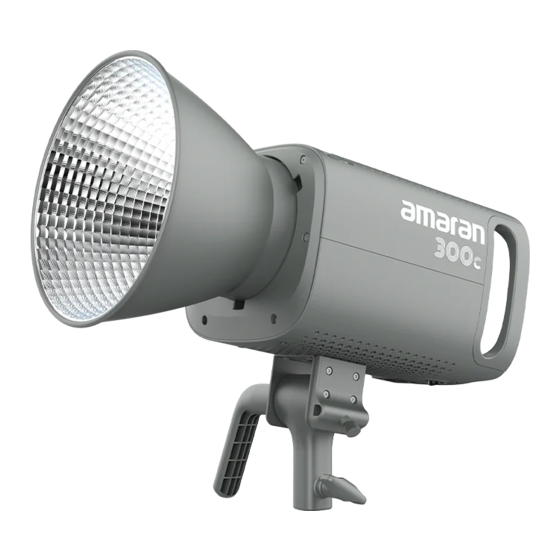

Thank you for purchasing the "amaran" series of RGBWW COB lights - amaran 300c. Amaran 300c is a 300W full color LED light. It has a new and colorful appearance design and supports full-color output of light sources. Advanced software interaction design, minimalist control method, compatible with Sidus Link®... -
Page 3: Components List
This device has been evaluated to meet general RF exposure requirements. Components List Please make sure all accessories listed below are completed before using. If not, please contact with your sellers immediately. amaran 300c Standard Kit： amaran 300c×1 Power Adapter×1 Hyper reflector×1... -
Page 4: Product Details
Product Details Protective cover Bowens mount Bowens mount Hyper reflector release button COB chipset Soft light umbrella hole Locking handle Locking knob Tie Down LCD Display Bluetooth reset button CTR knob INT knob Power button DC-in connector... -
Page 5: Installations
Installations 1.Detaching /attaching the Protection Cover Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out. Reverse rotation will put the protective cover into. WARNING Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away. -
Page 6: Power Supply
4. Soft light umbrella installation Insert the soft light handle into the hole, then lock the locking knob. 5. Power supply Powered by AC. AC 100V-240V *Please press the button on the DC interface to remove the power cord from the lamp. Do not pull it out forcibly. *Please press the spring-loaded lock button on the power cord to remove the power cord. -
Page 7: Manual Control
2.Manual Control CCT Mode HSI Mode 2.2.1 CCT Rotate the INT knob to adjust intensity level. Press the CTR knob to select CCT or G/M and rotate the knob to adjust the corresponding value. INT (Intensity): 0.0 - 100.0 % CCT (Correlated Color Temp.): 2500 K - 7500 K G/M (Green / Magenta adjustment): -1.0 ~ +1.0 2.2.2 HSI... - Page 8 Connect Sidus Link® APP, the user can find the Bluetooth serial number corresponding to the lamp in the APP and connect. When controlling the light effect through the APP, "FX" will be displayed on the upper left corner of the screen. In wireless mode, 9 lighting effects can be controlled through APP: Paparazzi / Lightning / TV / Fire / Faulty Bulb / Pulsing / Cop Car / Party Lights / Fireworks.
- Page 9 You can download the Sidus Link® app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit Sidus.link/app/help for moredetails regarding how to use the app to control your Aputure® lights. Get Sidus Link...
-
Page 10: Specifications
Specifications DC Power Input (Max) Power Output (light) 360 W 300W 2500 K - 7500 K±300K ≥95 3200K：≥95 ≥95 TLCI 5600K：≥92 SSI (D32) SSI (D56) TM-30 Rf（avg.） TM-30 Rg（avg.） Naked：90°， Beam angle 19389 lm (5600K) Luminous flux Hyper reflector：65° 7.5 A Operating Voltage Operating Current DC 48V... - Page 11 Photometrics Fresnel 2X Fresnel 2X LS 600 Hyper Distance Bare Bulb reflector /lux Spot/lux Flood/lux 7000 19790 18960 32800 2500 K 1757 2387 4050 1405 7520 21390 20440 35300 1896 2580 4370 3200 K 1515 8260 23510 22300 38600 1004 2080 2817 4790...
