Summary of Contents for Aputure amaran T4c

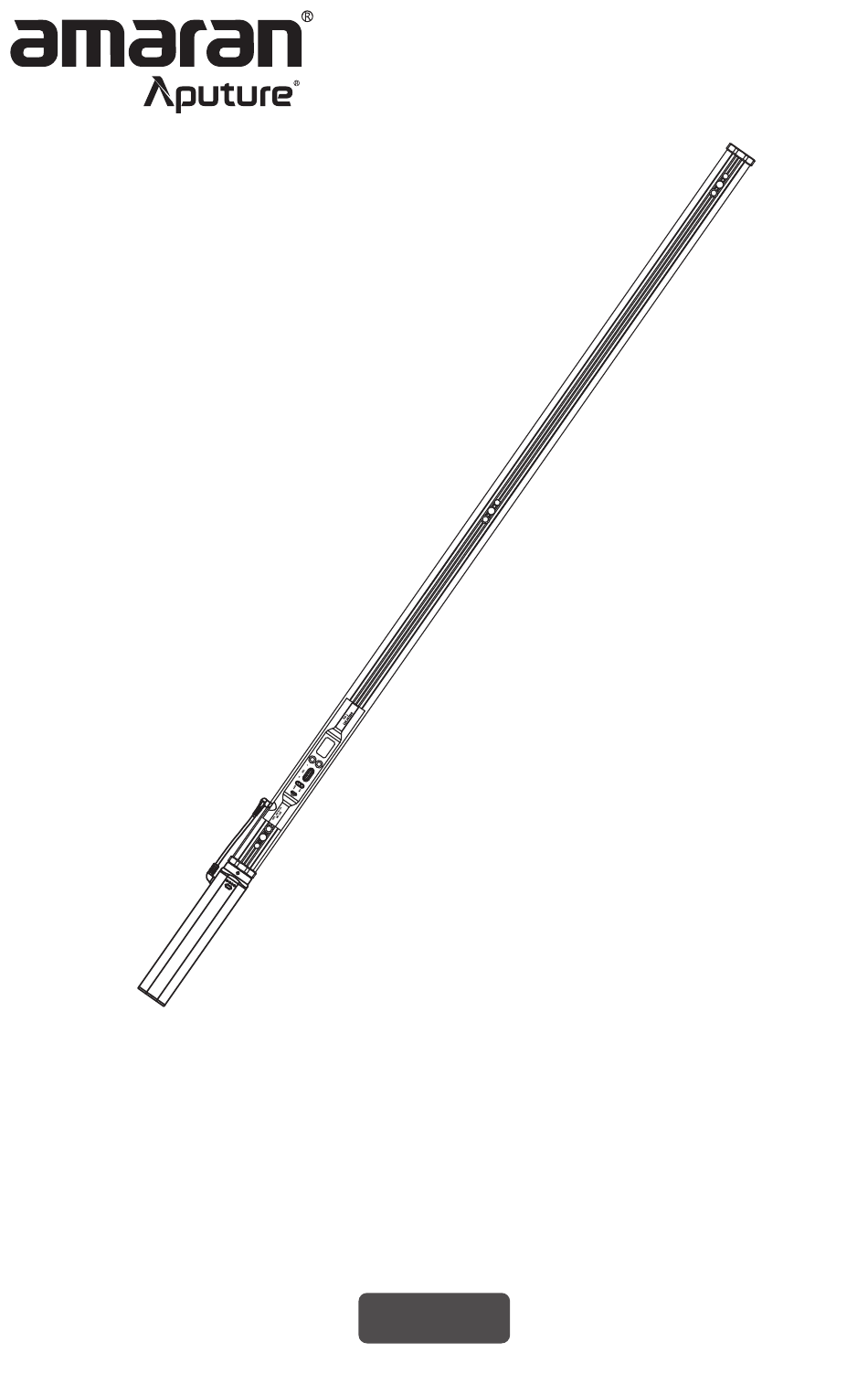

- Page 1 T4c Product Manual English...
-
Page 2: Important Safety Instructions
Foreword Thank you for purchasing "amaran" LED photography lights - amaran T4c. Amaran T4c is amaran newly designed cost performance light fixture. Compact structure design, compact and light , excellent texture. Has a high performance level, such as high brightness, high color rendering index, can adjust the brightness, etc. -
Page 3: Fcc Compliance Statement
Any malfunctions caused by unauthorized disassembly are not covered by the warranty. The user may pay for maintenance. 18. We recommend only using the original Aputure cable accessories. Please note that any malfunctions caused by using unauthorized accessories are not covered by the warranty. -
Page 4: Components List
Tips: The illustrations in the manual are only diagrams for reference. Due to the continuous development of new versions of the product, if there are any differences between the product and the user manual diagrams, please refer to the product itself amaran T4c (1 pc) Carrying Bag (1 pc) -
Page 5: Product Details
Product Details 1. T4c Type-C to DMX adapter 3/8 Screw 3/8 Screw Screen Back Switch Screw NATO Knob DC IN MENU Screw Screw Rail Screw Locking Mechanism 3/8 Screw 3/8 Screw 2. Battery Grip 3/8 Screw DC OUT DC OUT Battery Indicator DC IN... - Page 6 Setting Up the Light A variety of installation methods are integrated on the lamp body. 1. Use a tripod to install the lamp horizontally or vertically. *Tripod not standard Install the tube horizontally 2. Install with 3/8 screw. Install the tube vertically The screw on the The screw on the...
- Page 7 Powering up the Light 1. Powered by AC 2. Powered by DC 3. Remove the battery handle Install the battery handle and lamp in the direction shown in the figure, rotate and After pressing the release button of fasten through the quick-release locking the battery handle,Rotate and mechanism, then connect the DC output disassemble in the direction shown...
- Page 8 Operate 1. Turning on the Light Press the battery handle power indicator button to check the remaining battery, and then turn on the light. Switch Battery grip release button 2. Manual Control 2.1 CCT mode: press the knob to enter CCT mode, then rotate the knob to select color temperature, brightness, G/M adjustment.
- Page 9 2.3 GEL mode: press the knob to enter GEL mode，then rotate the knob to select brightness, color temperature and Gel, press the knob to enter the submenu to adjust the brightness(0%~100%), color temperature (3200K/5600K) and Gel. 2.4 FX mode: press the knob to enter FX mode, then rotate the knob to select Club Lights, Paparazzi , Lightning , TV , Candle, Fire, Strobe, Explosion, Faulty Bulb, Pulsing , Welding , Cop...
- Page 10 2.9 Screen-off time: press the knob to enter screen-off time setting, rotate the knob to select Norm, 15S, 30S, 60S. 2.10 BT Reset: press the knob to enter BT Reset, rotate the knob to select “YES”, press the knob to reset Bluetooth; select "No" to return to the main menu.
- Page 11 3. DMX Control 3.1 Connecting Type-c to DMX adapter to the lighting fixture. * Type-c to DMX adapter is not standard OUTPUT DMX512 Connecting DMX to only one light 3.2 Connect a standard DMX controller OUTPUT DMX512 Daisy chaining multiple lights using DMX 3.3 The DMX interface schematic.
-
Page 12: Specifications
You can download the Sidus Link app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit sidus.link/app/help for more details regarding how to use the app to control your Aputure lights. Get Sidus Link Sidus.link/app/help... - Page 13 Photometrics 距离(M) 照度(lux) 0.5m 2500K Bare Bulb 1856 lux / 172 fc 676 lux / 62 fc 108 lux / 10 fc 215 lux / 19.8 fc 3200K Bare Bulb 1898 lux / 176 fc 690 lux / 64 fc 110 lux / 10.2 fc 219 lux / 20.3 fc 4300K...
