Aputure light Dome SE Product Manual

Thank you!
Thank you for purchasing the Aputure Light Dome SE.

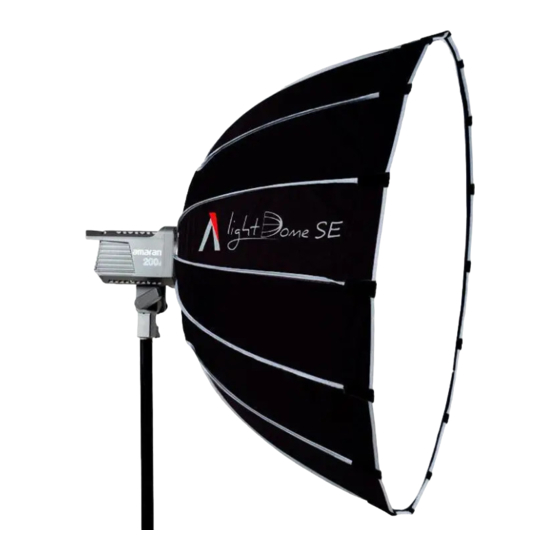

Aputure's Light Dome SE is a deep softbox with Bowens mount for the
Light Storm LS series and amaran COB series LED video light, and is
compatible with other LED video light which with Bowens mount.
Material list
Softbox (1pc)
Outside Diffuser 1 (1pc)
Inside Diffuser (1pc)
Product Manual
English
Carrying Bag (1pc)
Detailed product manual can be found on www.aputure.com .
-1-
Installation
1) Speed Ring Adapter installation
1
2
Red dot match: Insert bracket to speed ring Fasten the speed ring adapter.
adapter, symmetrically install all brackets.
Eggcrate (1pc)
3
Outside Diffuser 2
(1pc)
Stick magic strip well.
2) Diffuser installation
Speed Ring Adapter
(1pc)
1 2
-2-
3) Eggcrate installation Specifications
Item
Softbox unfolded
Outside Diffuser 1
Outside Diffuser 2
Inside Diffuser
Speed Ring Adapter
4) Light Dome SE installation
Eggcrate
Trademarks
Bowens is a trademark or registered trademark of Bowens in China or
other countries.
2
1
-3-
为折线(不印刷)
折页成型（英文在正面）：
Dimension Net Weight
Φ850mmx450mm
（Φ33.46"x17.72"）
Φ820mm（Φ32.28"）
1.09kg
Φ820mm（Φ32.28"）
(2.4 lb)
Φ240mm（Φ9.45"）
Standard Bowens Mount
Φ820mm（Φ32.28"）
-4-
