optris CS Operator's Manual page 14

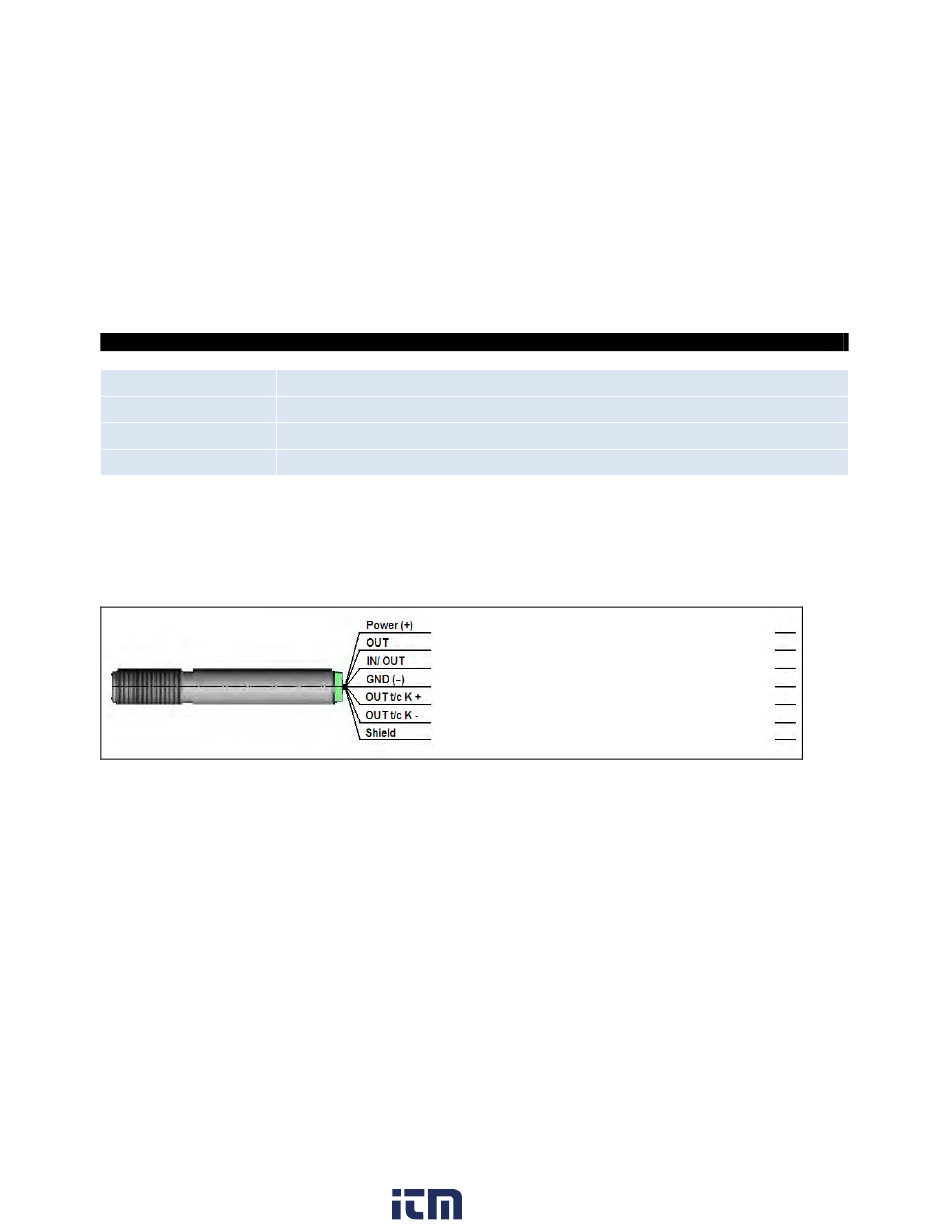

Technical Data
Vcc adjust mode
Output impedances
Current draw
Power supply
1) 0...4.6 V at supply voltage 5 VDC; also valid for alarm output
2) only at supply voltage ≥ 11 V
3) inverted RS232, TTL, 9.6 kBaud
4) loadable up to 500 mA if the mV output is not used
5) High level: > 0.8 V/ Low level: < 0.8 V
6) The CS sensor may only be powered either via USB or externally, but not simultaneously!
1) The t/c wires are indicated with an additional cable marker to avoid wrong connections due to the identical cable colors of other wires
(white, green).
1.800.561.8187
10 adjustable emissivity and alarm values by variation of supply voltage/ Service mode for analog output
min. 10 kΩ load impedance
10 mA
5...30 VDC
6)
Power supply [white]
Analog output/ TxD (5 V)/ Alarm output [yellow]
Analog input/ RxD (5 V)/ Open collector output [green]
Ground (⊥) [brown]
Thermocouple output type K (+) [green]
Thermocouple output type K (-) [white]
Shield [black]
