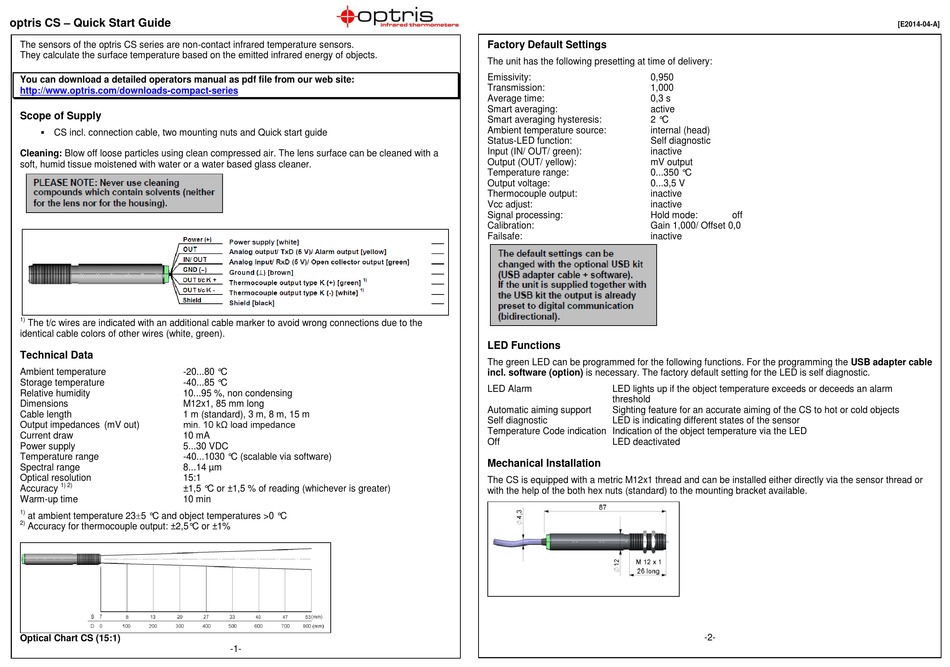

optris CS – Quick Start Guide

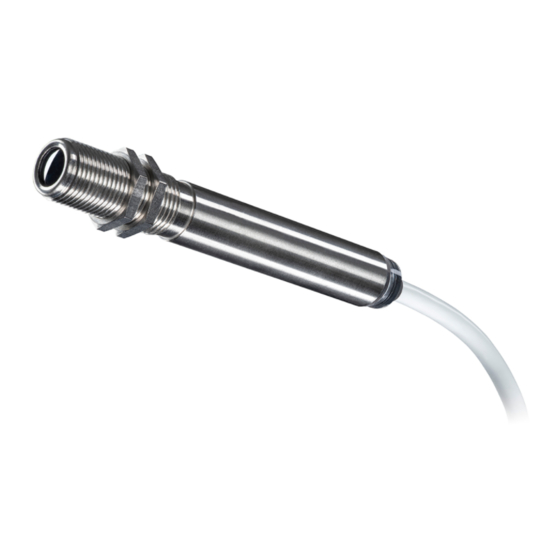

The sensors of the optris CS series are non-contact infrared temperature sensors.
They calculate the surface temperature based on the emitted infrared energy of objects.
You can download a detailed operators manual as pdf file from our web site:
http://www.optris.com/downloads-compact-series
Scope of Supply
 CS incl. connection cable, two mounting nuts and Quick start guide
Cleaning: Blow off loose particles using clean compressed air. The lens surface can be cleaned with a
soft, humid tissue moistened with water or a water based glass cleaner.
1)
The t/c wires are indicated with an additional cable marker to avoid wrong connections due to the
identical cable colors of other wires (white, green).
Technical Data
Ambient temperature -20...80 °C
Storage temperature -40...85 °C
Relative humidity 10...95 %, non condensing
Dimensions M12x1, 85 mm long
Cable length 1 m (standard), 3 m, 8 m, 15 m
min. 10 kΩ load impedance
Output impedances (mV out)
Current draw 10 mA
Power supply 5...30 VDC
Temperature range -40...1030 °C (scalable via software)
Spectral range 8...14 µm
Optical resolution 15:1
1) 2)
Accuracy ±1,5 °C or ±1,5 % of reading (whichever is greater)
Warm-up time 10 min
1)
at ambient temperature 235 °C and object temperatures >0 °C
2)
Accuracy for thermocouple output: ±2,5°C or ±1%
Optical Chart CS (15:1)
-1-
Factory Default Settings
The unit has the following presetting at time of delivery:
Emissivity: 0,950
Transmission: 1,000
Average time: 0,3 s
Smart averaging: active
Smart averaging hysteresis: 2 °C
Ambient temperature source: internal (head)
Status-LED function: Self diagnostic
Input (IN/ OUT/ green): inactive
Output (OUT/ yellow): mV output
Temperature range: 0...350 °C
Output voltage: 0...3,5 V
Thermocouple output: inactive
Vcc adjust: inactive
Signal processing: Hold mode:
Calibration: Gain 1,000/ Offset 0,0
Failsafe: inactive
LED Functions
The green LED can be programmed for the following functions. For the programming the USB adapter cable
incl. software (option) is necessary. The factory default setting for the LED is self diagnostic.
LED Alarm LED lights up if the object temperature exceeds or deceeds an alarm
threshold
Automatic aiming support Sighting feature for an accurate aiming of the CS to hot or cold objects
Self diagnostic LED is indicating different states of the sensor
Temperature Code indication Indication of the object temperature via the LED
Off LED deactivated
Mechanical Installation
The CS is equipped with a metric M12x1 thread and can be installed either directly via the sensor thread or
with the help of the both hex nuts (standard) to the mounting bracket available.
off
-2-
[E2014-04-A]
