EVAL-AD7606BFMCZ
Export Capture Data
Click Export to export captured data. The waveform,
histogram, and FFT data is stored in .xml files along with the
values of parameters at capture.
Waveform Graph
The data waveform graph shows each successive sample of the
ADC output. The user can zoom and pan the waveform using
the embedded waveform tools. The channels to display can be
selected in Display Channels.
Display Units and Axis Controls
Click the Display Units dropdown list to select whether the
data graph displays in units of hexadecimal, volts, or codes. The
axis controls are dynamic.
User Guide

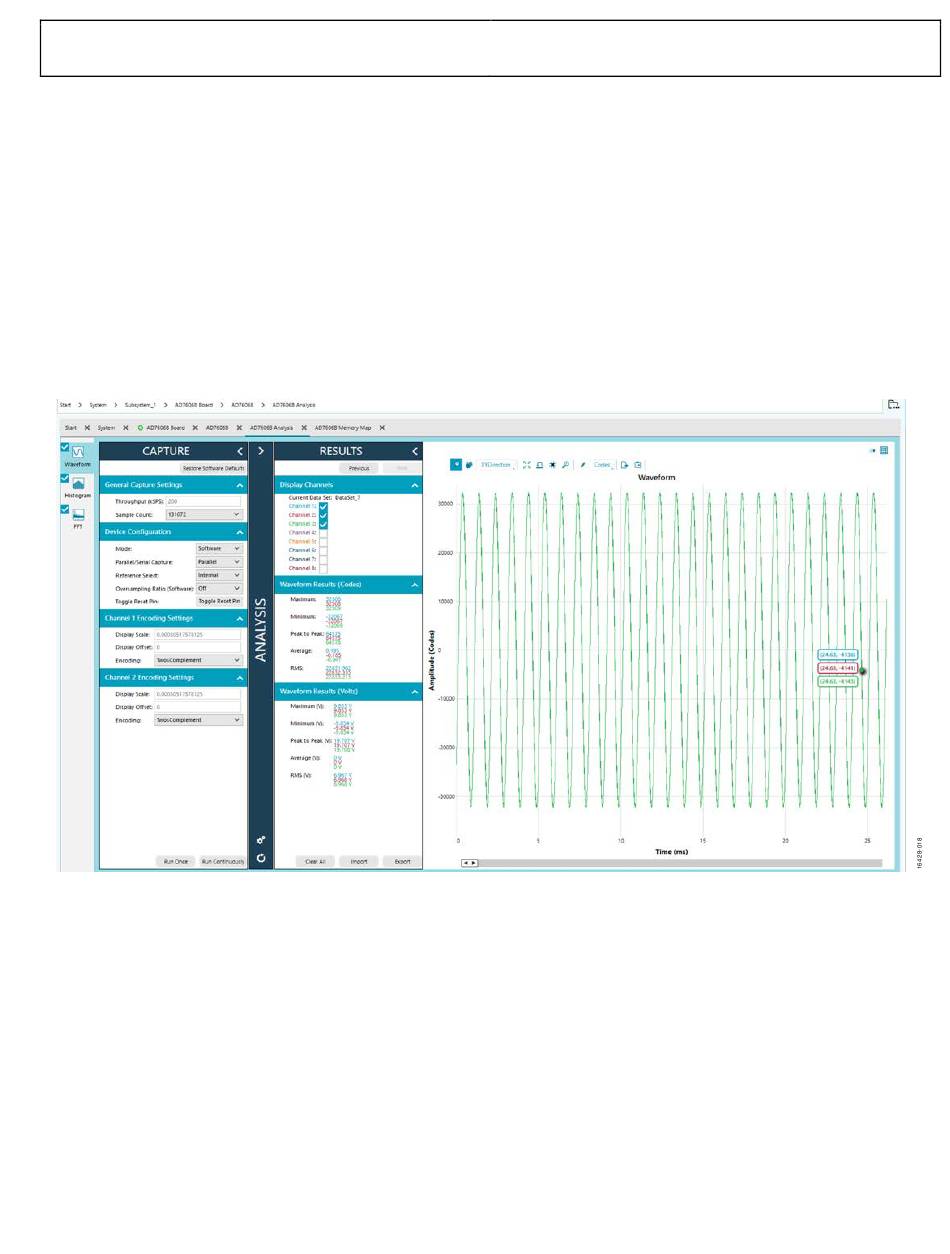

Figure 16. Waveform Tab
Rev. A | Page 13 of 15
When selecting either y-scale dynamic or x-scale dynamic, the
corresponding axis width automatically adjusts to show the
entire range of the ADC results after each batch of samples.

HISTOGRAM TAB

The Histogram tab contains the histogram graph and the
results pane, as shown in Figure 17.
Results
Results displays the information related to the dc performance.
Histogram Graph
The histogram graph displays the number of hits per code within
the sampled data. This graph is useful for dc analysis and indicates
the noise performance of the device.
UG-1225
