UG-849
EVAL-AD7177-2SDZ User Guide
HISTOGRAM TAB (19)
Histogram Graph and Controls (20 and 21)
The data histogram graph shows the number of times each sample of the ADC output occurs. The control toolbar in the histogram graph
allows you to zoom in on the data (see Figure 9). Click the x-axis and y-axis to change the scales on the graph (see Figure 9).
19
20
21

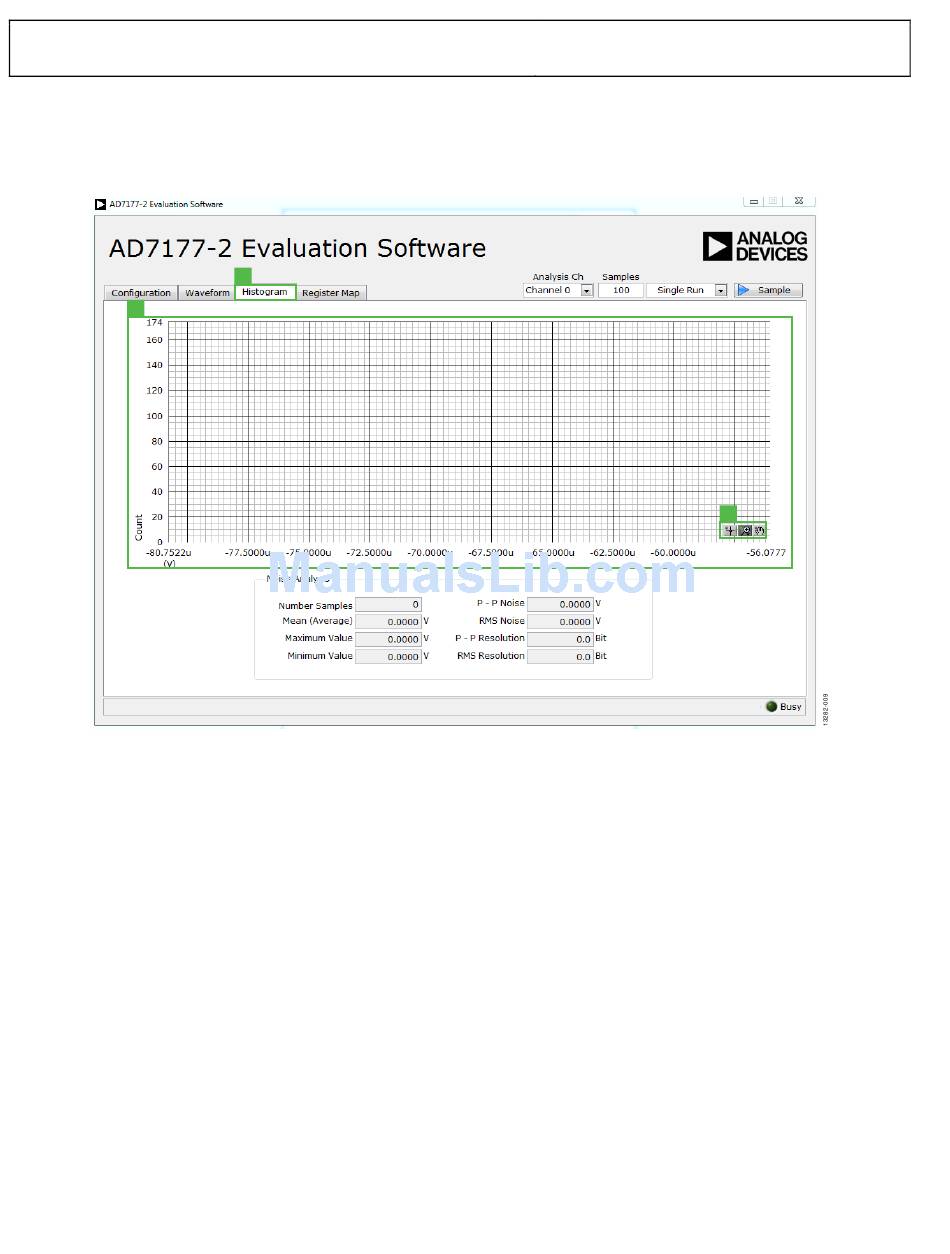

Figure 9. Histogram Tab of the
AD7177-2
Evaluation Software
Rev. 0 | Page 12 of 14
