UG-1225
EVALUATION BOARD SOFTWARE
SOFTWARE INSTALLATION
Download the
ACE
evaluation software from the
product page. Both the EVAL-AD7606BFMCZ software and the
EVAL-SDP-CH1Z
(SDP-H1) board drivers must be installed.
Warning
The
ACE
evaluation software and drivers must be installed before
connecting the EVAL-AD7606BFMCZ evaluation board and the
EVAL-SDP-CH1Z
(SDP-H1) board to the USB port of the PC
to ensure that the evaluation system is correctly recognized when
it is connected to the PC.
Installing the
ACE
Evaluation Software
To install the
ACE
evaluation software, take the following steps:
1.
Download the
ACE
evaluation software to a Windows®-
based PC.
2.
Double click the ACEInstall.exe file to begin the
installation. By default, the software is saved to:
C:\Program Files (x86)> Analog Devices > ACE.
3.
A dialog box appears asking for permission to allow the
program to make changes to the PC. Click Yes to begin the
installation process.
4.
Click Next > to continue the installation, as shown in
Figure 2.

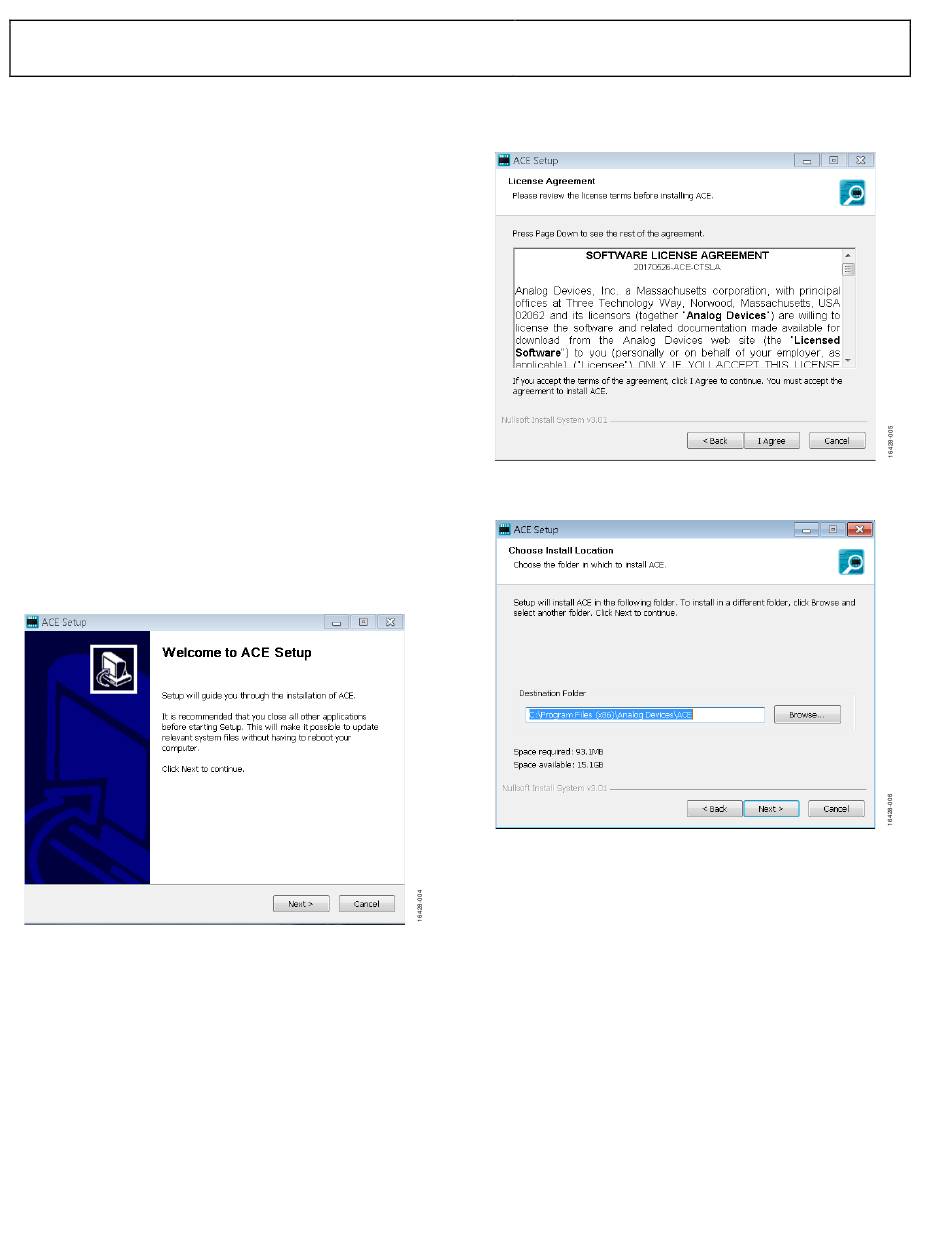

Figure 2. Evaluation Software Install Confirmation
5.
AD7606B
6.
Rev. A | Page 6 of 15
EVAL-AD7606BFMCZ
Read the license and click I Agree.
Figure 3. License Agreement
Choose the install location and click Next >.
Figure 4. Choose Install Location Window
User Guide
