UG-1225

AD7606B EVALUATION SOFTWARE OPERATION

Launching the Software
After the EVAL-AD7606BFMCZ and
boards are correctly connected to the PC, launch the
evaluation software.
1. From the Start menu, select All Programs > Analog
Devices > ACE> ACE.exe, which brings up the window
shown in Figure 10.
2. If the EVAL-AD7606BFMCZ evaluation board is not
connected to the USB port via the
the software is launched, the AD7606B Eval Board icon does
not show up in the Attached Hardware section. Connect the
EVAL-AD7606BFMCZ and the
USB port of the PC and wait a few seconds, and then follow
the instructions that appear in the dialogue box.
3. Double-click the AD7606B Eval Board icon to view the
window shown in Figure 10.
4. Double-click the AD7606B chip icon to access the window
shown in Figure 11.
5. Click Software Defaults and then click Apply Changes.
EVAL-SDP-CH1Z
ACE
EVAL-SDP-CH1Z when
EVAL-SDP-CH1Z to the

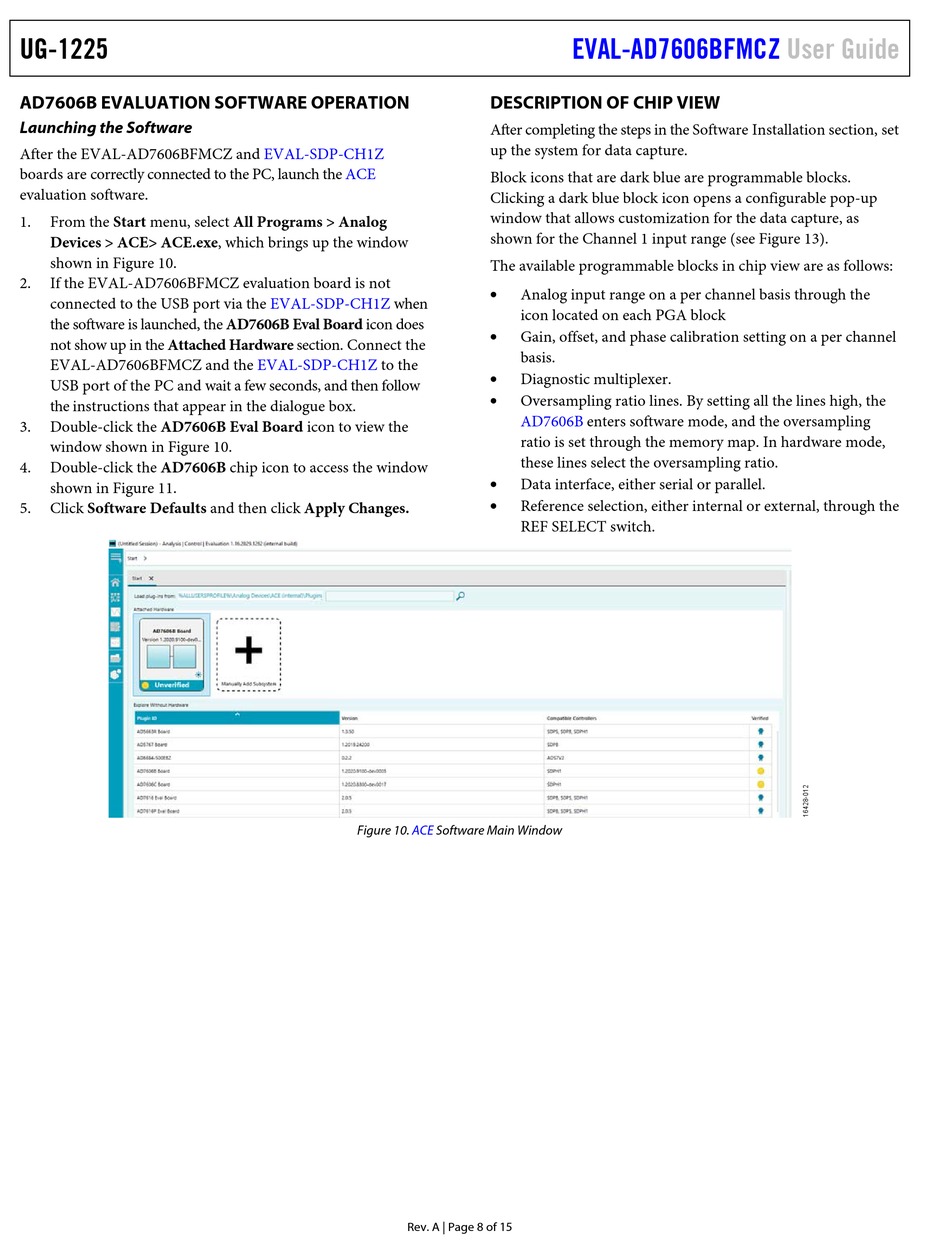

Figure 10. ACE Software Main Window
Rev. A | Page 8 of 15
EVAL-AD7606BFMCZ

DESCRIPTION OF CHIP VIEW

After completing the steps in the Software Installation section, set
up the system for data capture.
Block icons that are dark blue are programmable blocks.
Clicking a dark blue block icon opens a configurable pop-up
window that allows customization for the data capture, as
shown for the Channel 1 input range (see Figure 13).
The available programmable blocks in chip view are as follows:

Analog input range on a per channel basis through the
icon located on each PGA block

Gain, offset, and phase calibration setting on a per channel
basis.

Diagnostic multiplexer.

Oversampling ratio lines. By setting all the lines high, the
AD7606B enters software mode, and the oversampling
ratio is set through the memory map. In hardware mode,
these lines select the oversampling ratio.

Data interface, either serial or parallel.

Reference selection, either internal or external, through the
REF SELECT switch.
