HISTOGRAM TAB (28)

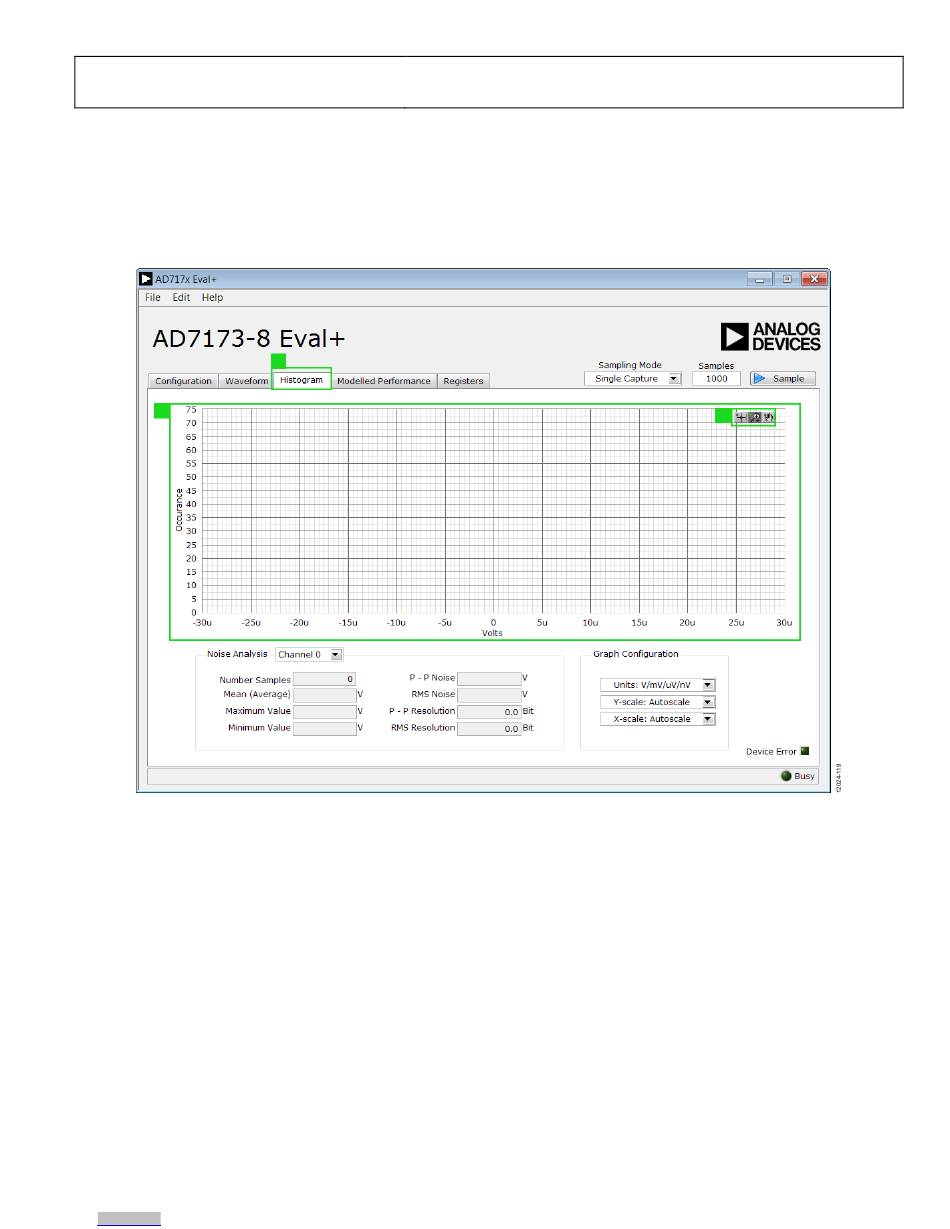

Figure 19 shows the Histogram tab of the AD717x Eval+
Software.
29
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
28
Figure 19. Histogram Tab of the
Rev. A | Page 15 of 34
Histogram Graph and Controls (29 and 30)
The data histogram graph (29) shows the number of times each
sample of the ADC output occurs. The control toolbar (30) in the
histogram graph allows the user to zoom in on the data (see
Figure 19). Click the x-axis and y-axis to change the scales on the
graph (see Figure 19).
AD7173-8 Eval+ Software
UG-631
30
