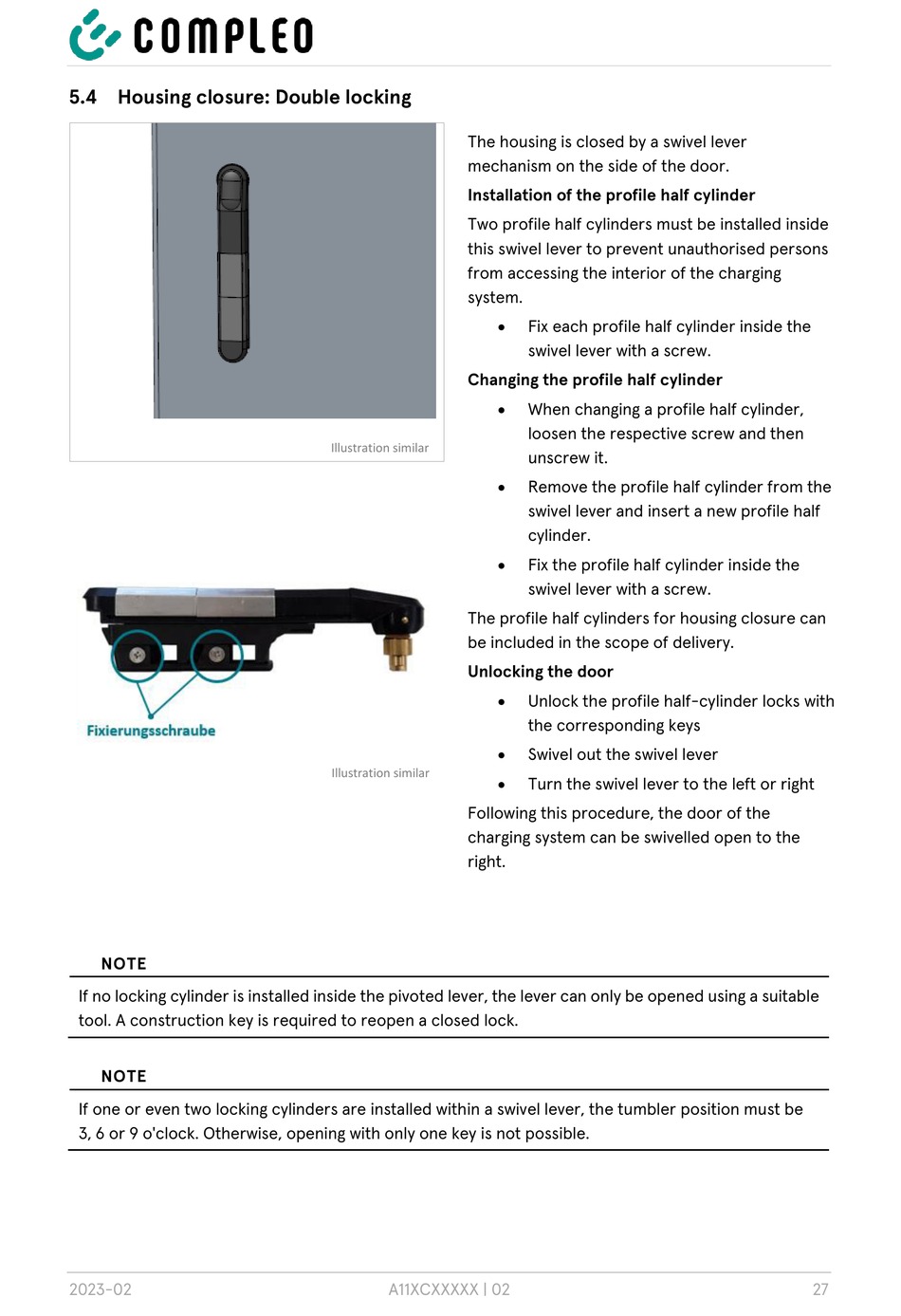

5.4 Housing closure: Double locking

NOTE
If no locking cylinder is installed inside the pivoted lever, the lever can only be opened using a suitable
tool. A construction key is required to reopen a closed lock.
NOTE
If one or even two locking cylinders are installed within a swivel lever, the tumbler position must be
3, 6 or 9 o'clock. Otherwise, opening with only one key is not possible.
2023-02
The housing is closed by a swivel lever
mechanism on the side of the door.
Installation of the profile half cylinder
Two profile half cylinders must be installed inside
this swivel lever to prevent unauthorised persons
from accessing the interior of the charging
system.

Changing the profile half cylinder

Illustration similar


The profile half cylinders for housing closure can
be included in the scope of delivery.
Unlocking the door


Illustration similar

Following this procedure, the door of the
charging system can be swivelled open to the
right.
A11XCXXXXX | 02
Fix each profile half cylinder inside the
swivel lever with a screw.
When changing a profile half cylinder,
loosen the respective screw and then
unscrew it.
Remove the profile half cylinder from the
swivel lever and insert a new profile half
cylinder.
Fix the profile half cylinder inside the
swivel lever with a screw.
Unlock the profile half-cylinder locks with
the corresponding keys
Swivel out the swivel lever
Turn the swivel lever to the left or right
