3.3 Series label

The charging systems from Compleo Charging Solutions AG can be identified by an individual serial number. A

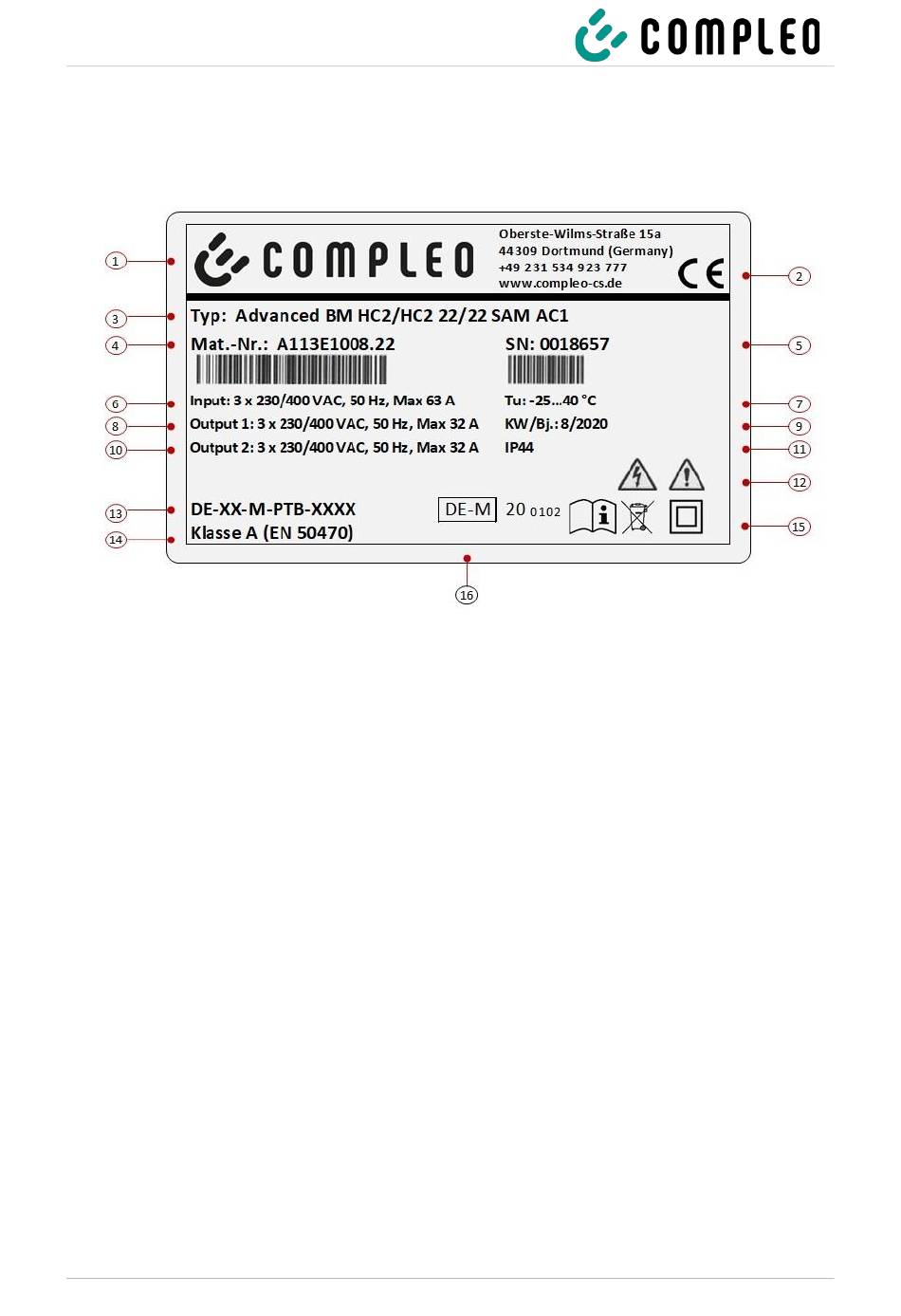

series label is attached inside the charging system. The following illustration shows an example of a series label:
The following information can be identified by means of the serial label:
(1) Name of the manufacturer
(2) Address/ Service number/ Website of the manufacturer
(3) Type/ Installation type/ Charging interfaces/ Charging capacities of charging system
(4) Material number or article number of the charging system
(5) Serial number of the charging system
(6) Input: Number of phases x voltage frequency input current
(7) Ambient temperature
(8) Output AC: Voltage, max. current
(9) Calendar week and year of manufacture
(10) Output DC: Voltage range, max. current
(11) Protection type and protection class of the charging system Pictogram (safety information)
(12) Number of the type examination certificate
(13) Accuracy class of the measuring instrument according to EN 50470
(14) Pictogram (protection class, disposal, operating and maintenance instructions)
(15) Metrology marking
14
Illustration similar
A11XCXXXXX | 02 2023-02
