Installation: Mounting Image Sensor - Alarm.Com Knowledge Base ADC-IS-300-LP Installation Manual

captured until initialization is complete. Check by verifying if the rules are confirmed on the Partner Portal or
MobileTech app.
8. The sensor is now learned into the panel. Sensors are enrolled in group 17 by default. Image Sensors may be
enrolled in groups 15, 17, 20, 25 or 35.
◦ To change the sensor group after the sensor is enrolled using the control panel:
a. Tap Settings.
b. Enter the installer code.
c. Tap Installation.
d. Tap Security Sensors.
e. Tap to edit the Image Sensor.

Installation: Mounting Image Sensor

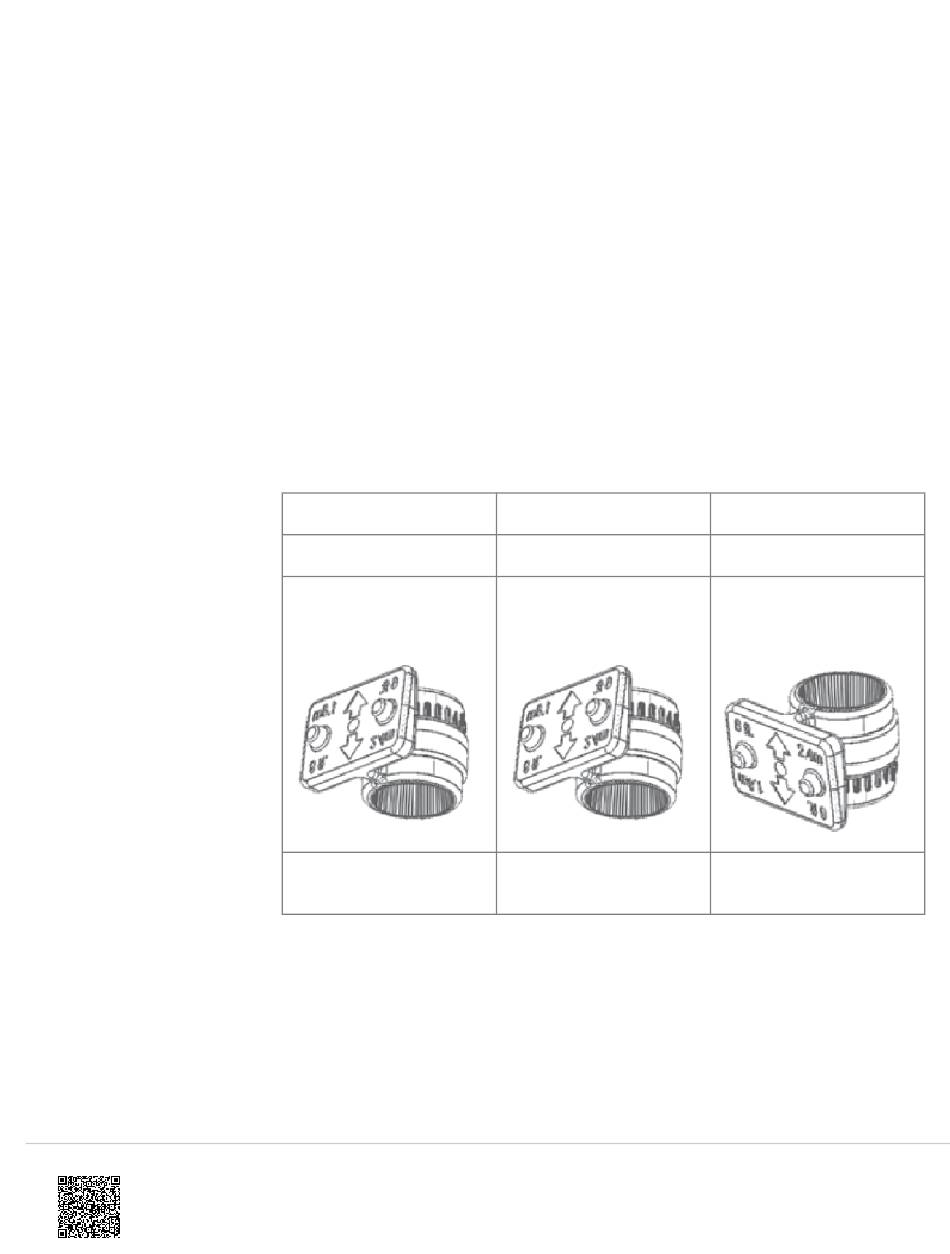

1. Choose the desired location and mounting angle for the Image Sensor using the information in the chart. There are
three options:
Intended Operation
Mounting Height
Angle
Bracket Orientation
Coverage Distance
2. Screw the bracket to the backplate of the Image Sensor.
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa...
Pet Immunity
6 Feet
Shallow, 6°
Teeth Up
30 to 35 ft.
Larger Rooms
8 Feet
Shallow, 6°
Teeth Up
30 to 35 ft.
Updated: Fri, 10 Mar 2023 20:26:10 GMT
Smaller Rooms
8 Feet
Deep, 18°
Teeth Down
15 to 20 ft.
