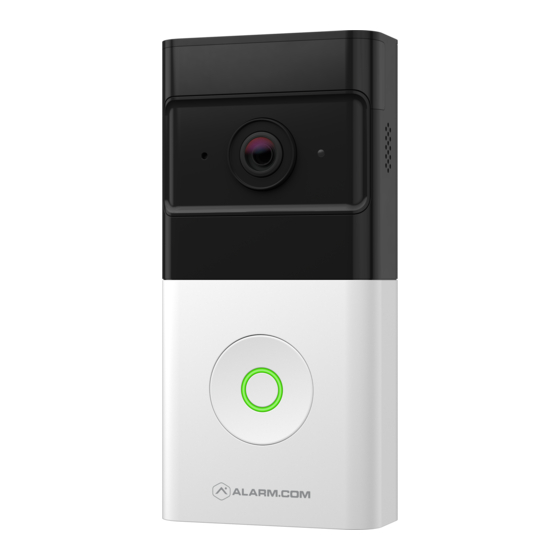

Alarm.com Wireless Video Doorbell (ADC-VDB780B) - Installation Guide
Use this guide to assist with the installation of your ADC-VDB780B Wireless Video Doorbell.
In the box
• ADC-VDB780B Wireless Video Doorbell
• ADC-VDB780B mounting plate
• 10º tilt wedge
• Battery pack
• Charging cable
• Mounting screws (2)
• Mounting anchors (2)
• Wedge screws (4)
• Quick start guide
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Video_Devices/Alarm.com_Wireless_Video_Doorbell_(A...
Updated: Wed, 08 Mar 2023 14:28:25 GMT
1
