Qolsys IQ Panel Image Sensor Version 3 - Installation Guide
This guide contains instructions for installing an Image Sensor Version 3 (ADC-IS-300-LP) on a Qolsys IQ panel.
Product summary and technical specifications

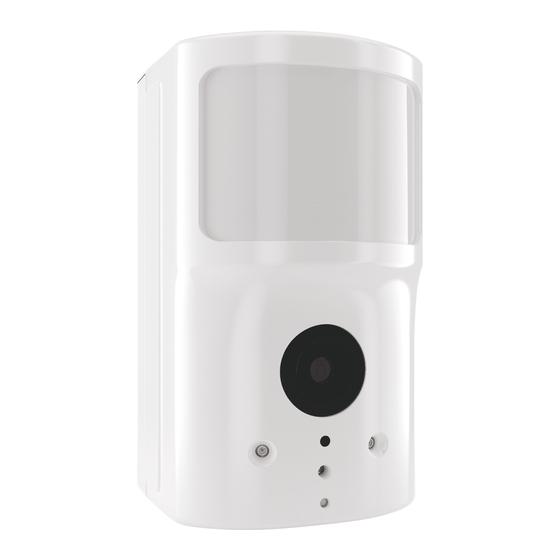

The Image Sensor is a pet immune PIR (passive infrared) motion detector with a built-in camera designed to capture
images during alarm or non-alarm events when motion is detected.
Product features:
• Communicates wirelessly to the security control panel
• 35 foot detection range with a 90 degree horizontal FOV
• Configurable PIR sensitivity and pet immunity settings
• Image: VGA 640x480 pixels
• Color Images (except in night vision)
• Night vision image capture with infrared flash (black & white)
• Tamper detection, walk test mode, supervision
• All systems can support up to three Image Sensors
• UL 639 certified
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa...
Updated: Fri, 10 Mar 2023 20:26:10 GMT
1
Advertisement
Table of Contents
Related Manuals for Alarm.Com Knowledge Base ADC-IS-300-LP
Summary of Contents for Alarm.Com Knowledge Base ADC-IS-300-LP
- Page 1 • Night vision image capture with infrared flash (black & white) • Tamper detection, walk test mode, supervision • All systems can support up to three Image Sensors • UL 639 certified https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT...
-
Page 2: Installation: Preparing Panel For Enrollment
Select service package (including an Images add-on) and register the Alarm.com module serial number on the Alarm.com Partner Portal or MobileTech app. Register module and test Power up the panel and initiate a comm-test to ensure the Alarm.com module is properly installed and communicating with Alarm.com. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa…... -
Page 3: Installation: Enrolling Image Sensor To Panel
6. Exit Auto-Learn mode on the panel. The Image Sensor LED alternates between green and yellow while the customer’s device list is updated with Alarm.com. The LED turns solid green when the Image Sensor has been successfully added to the customer’s account. -
Page 4: Installation: Mounting Image Sensor
Teeth Down Teeth Up Teeth Up Bracket Orientation 15 to 20 ft. Coverage Distance 30 to 35 ft. 30 to 35 ft. 2. Screw the bracket to the backplate of the Image Sensor. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT... - Page 5 5. Place and secure the Image Sensor on the arm and secure the arm on the mounting bracket in the desired location. Adjust the horizontal positioning of the sensor to point towards the desired coverage area. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT...
- Page 6 MobileTech app. Installers are required to be onsite to test by running a comm test at the panel. 4. Test night image captures by darkening the room as much as possible (turn off the lights and close the shades). https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT...
-
Page 7: Other Feature Compatibility
7. Tap Start PIR Test. The screen displays a confirmation message to indicate the test mode command has been sent. Note: It may take up to 30 seconds for test mode to take effect. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT... -
Page 8: Trouble Conditions
By default, trouble conditions (malfunction, tamper & low battery) are displayed on the panel LCD. Enable or disable trouble condition messages on the control panel LCD via the Alarm.com Partner Portal. Trouble conditions are always reported to the Alarm.com Customer Website and customers will receive tamper/low/malfunction notifications if they are subscribed, regardless of the panel setting. - Page 9 To replace the sensor batteries, slide the front of the sensor up off the sensor-back. Dispose of used batteries per the battery manufacturer instructions and following local regulations. Replacing batteries https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT...
- Page 10 Image Sensor LED reference chart https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT...
-
Page 11: Resetting The Image Sensor
Resetting the Image Sensor There are two ways to reset the Image Sensor. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT... - Page 12 After releasing the reset button, the Image Sensor enters sensor power-up mode (blinking red LED) followed by memory check (solid red LED) followed by either a blinking green or blinking yellow light. For the full list of status indicators and expected behaviors, see the Camera LED reference chart. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT...
-
Page 13: Deleting Image Sensor From Panel
2. Perform a network reset of the Image Sensor. This can only be completed after the Image Sensor is deleted from the account, or if the Image Sensor is out of range of its current network. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT... - Page 14 PIR lens and camera coverage diagrams Figure 3. Side View: PIR Lens Coverage https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT...
-
Page 15: General Troubleshooting Steps
• Verify sensor is receiving power: After inserting batteries, the sensor LED should illuminate or flash within 10 seconds. • Verify sensor is not communicating with another network: If the sensor has been previously enrolled in a different https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Image_Sensor/Image_Sensor_Version_3/Qolsys_IQ_Pa… Updated: Fri, 10 Mar 2023 20:26:10 GMT... -
Page 16: Sensor Non-Responsive
• Enable auto uploads: During the first four hours after any sensor is enrolled onto the system, alarm images will not automatically be uploaded to Alarm.com. Automatic uploads are automatically enabled after four hours. For more information about enabling uploads sooner, see Configure automatic Image Sensor uploads.
