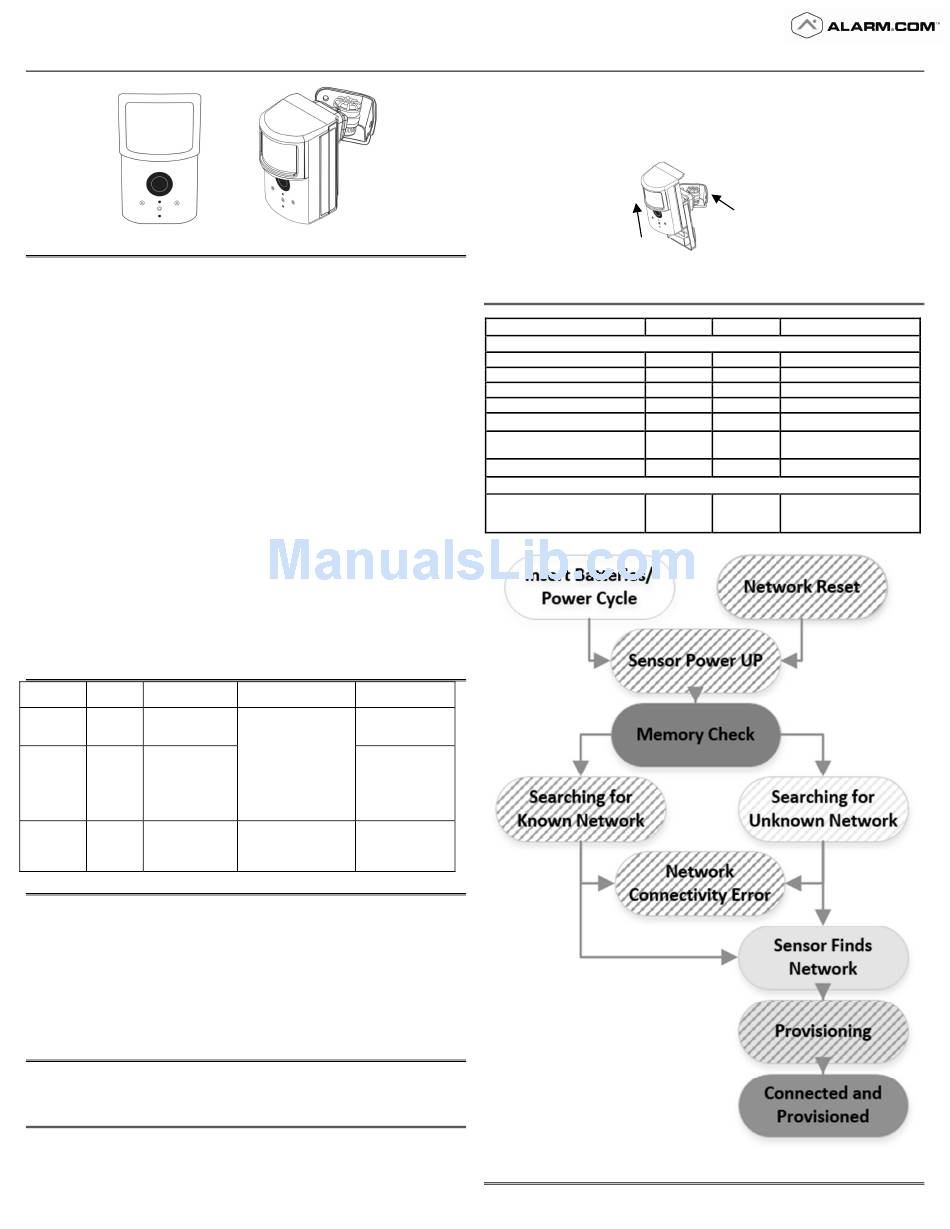

Alarm.Com ADC-IS-300-LP Installation Manual

Interlogix part number:
Alarm.com part number: ADC-IS-300-LP
Alarm.com Image Sensor Version 3 - Interlogix
PRODUCT SUMMARY & TECHNICAL SPECIFICATIONS

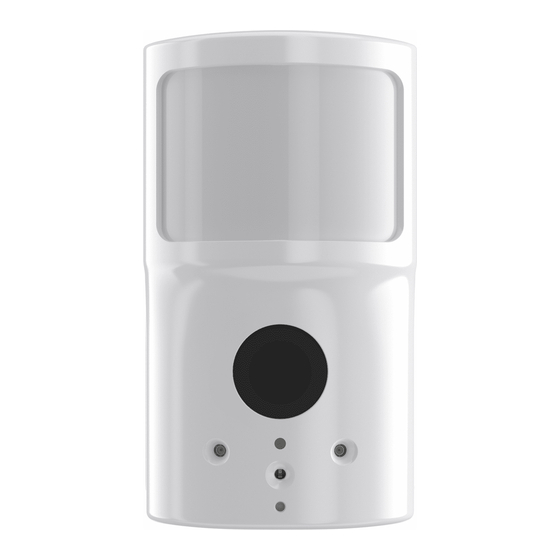

The Image Sensor is a pet immune PIR (passive infrared) motion detector with a built-in
camera designed to capture images during alarm or non-alarm events when motion is
detected.
Product Features:
• Communicates wirelessly to the security control panel
• 35 foot detection range with a 90 degree horizontal FOV-ALR
• Configurable PIR sensitivity and pet immunity settings
• Image: VGA 640x480 pixels
• Color Images (except in night vision)
• Night vision image capture with infrared flash (black & white)
• Tamper detection, walk test mode, supervision
• All systems can support up to three Image Sensors
• UL 639 certified
Technical Specifications:
• Alarm.com Model Number: ADC-IS-300-LP
• Interlogix Part Numbers:
• Power Source: Recommended 2 AA 1.5v Energizer Ultimate Lithium Batteries.
• Batteries: Refer to the Batteries section for details
• Operating Temperature Range: 32° to 110°F for non-pet applications, 60° to 110°F for
pet applications.
• Weight: 3.1 oz. (with batteries and without mounting accessories)
• Dimensions: 3.1'' h x 1.8'' w x 2.3'' d
• Supervisory Interval: 100 minutes (sensor), 3 hours (alarm hardwire)
• Wireless Signal Range: Greater than 400 ft open air
• Color: White
• Recommended Mounting Height and Angle: Refer to the Recommended Install
Height and Angle Table
• Motion Profiles & Sensor Range: Refer to the PIR Sensitivity Settings Table
HARDWARE COMPATIBILITY REQUIREMENTS – By Panel
Panel Module
Panel
Version Firmware
Simon
V1.3+ Firmware 146+
XT
Simon
V1.0+ Firmware 151+
XTi
CDMA – v177+
Concord 4.0+
HSPA – v183+
OTHER FEATURE COMPATIBILITY
Two-Way Voice Compatibility - Images cannot be transmitted while a Two-Way Voice
call is in session. When the Image Sensor is installed on a system with Two-Way Voice
over the cellular network, image transmission during an alarm may be interrupted by the
two-way session. The image transmission resumes once the call has terminated.
Simon XT 2WTTS Compatibility - When using a Two Way Talking Touchscreen with the
Simon XT panel, Image Sensor activity during alarms is reported or visible on the
touchscreen. When alarms are tripped on an enrolled Image Sensor, the alarms are
reported and displayed on the 2WTTS through the sensor 39 hardwire zone. Periodic
activations on hardwire zone 39 will appear on the touchscreen as a result of the hardwire
supervisions.
PET IMMUNITY SETTINGS
Two parts to making the Image Sensor pet immune:
1. Set PIR sensitivity settings to "low",
2. Mount set at a height of 6 ft, and install the sensor with the 6 degree mounting angle.
BATTERIES
Battery type: The Image Sensor uses 2 AA 1.5v Energizer Ultimate Lithium batteries (UL
compliant).
Expected Battery Life: Approximately 4 years with lithium batteries.
Voltage Thresholds: With lithium batteries, low battery alerts are issued at 3.05V. The
sensor cannot operate when the voltage reads below 2.30V.
1
Extra Hardware Other
Requires Image Daughterboard
Sensor will take one
Daughterboard for zone
modules with
firmware 185 or
lower. Compatible
No
with all
daughterboard
versions.
All Image
Requires
Sensors must be
daughterboard with
enrolled in same
v104.0+
partition.
Copyright © 2017 Alarm.com. All rights reserved.
Low Battery Notification: Panel will display a low battery alert for the sensor and/or
notifications are issued via the Alarm.com platform if the customer has subscribed to this
notification type.
Replacing batteries: To replace the sensor batteries, slide the front of the sensor up off
the sensor-back. Dispose of used batteries per the battery manufacturer instructions and
following local regulations.
Slide Up
Figure 1. Removing Sensor for Battery Replacement
CAMERA LED REFERENCE CHART
Camera LED Chart: Refer to this chart to understand the camera LED patterns.
Device Status or Error LED
Device & Network State
Sensor Power Up Red
Memory Check Red
Searching for Unknown Network Yellow
Searching for Known Network Green
Sensor Finds Network
Yellow
Provisioning Yellow &
Green
Connected and Provisioned
Green
Network Reset Red
Installation Guide
Hold Here
Pattern Duration of LED Pattern
Blinking 3 seconds
Solid 10 seconds
Blinking 2 minutes
Blinking 2 minutes
Solid 5 seconds
Alternating
5-minute timeout
blinks
Solid 5 seconds
Device Reset
Hold the reset button for
Blinking
ten seconds OR until the
(fast)
LED flashes rapidly.
Rev 3.5
