6.1

STM32H5 Nucleo-144 board layout

MIPI20 connector (CN5)
User LEDs (LD1-LD3)
External debug (JP1)
VDD_MCU power selection (JP4)
IDD measurement (JP5)
ZIO connector (CN8)
STM32 microcontroller (U14)
ST morpho pin header (CN11)
ZIO connector (CN9)
User button (B1)
User USB connector (CN13)
USB V
BUS
UM3115 - Rev 1

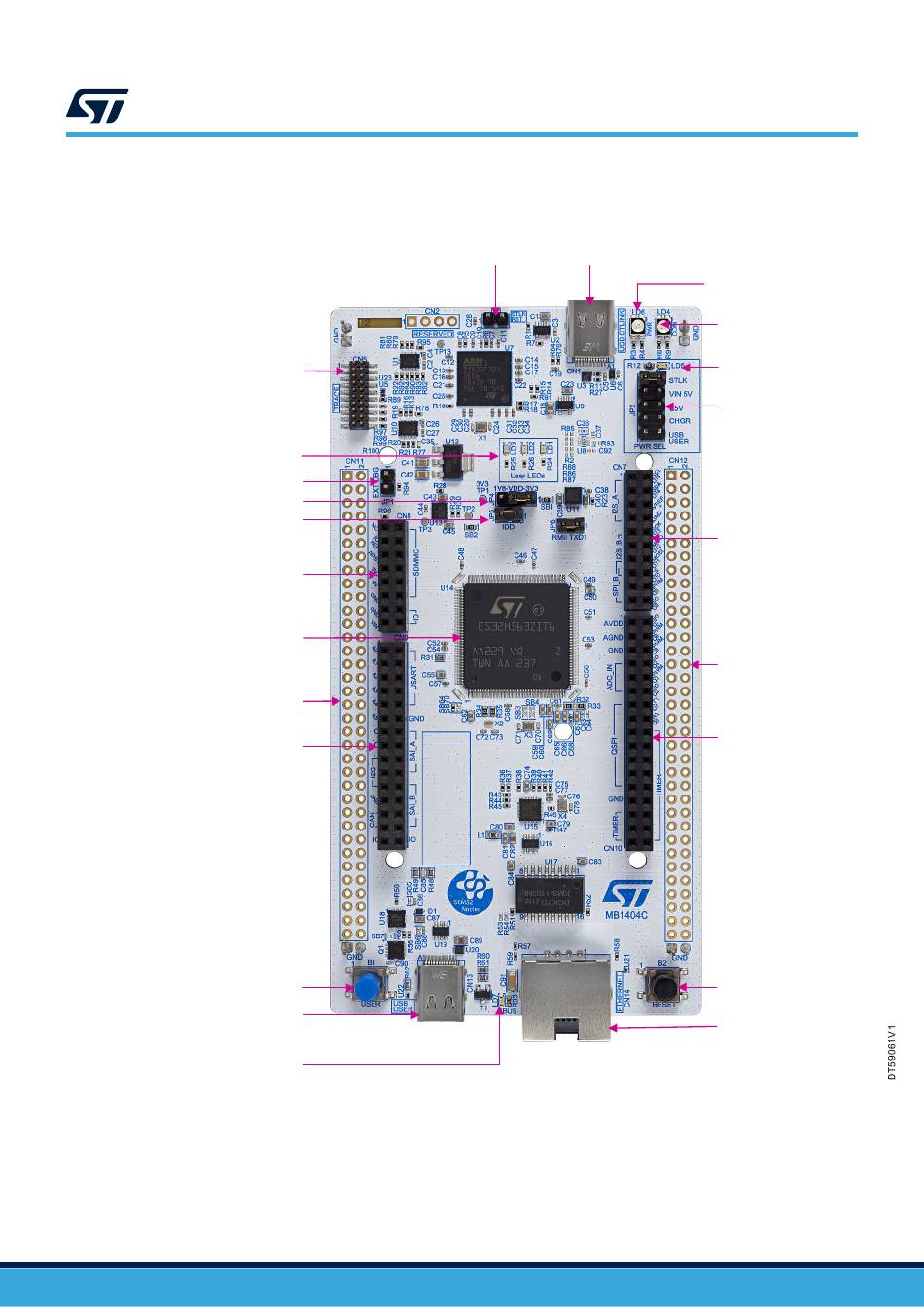

Figure 4. STM32H5 Nucleo-144 board top layout
LED (LD7)
ST-LINK RST (JP3) ST-LINK USB Type-C
UM3115
STM32H5 Nucleo-144 board layout
®
connector (CN1)
ST-LINK power status LED (LD6)
ST-LINK COM LED (LD4)
Power LED (LD5) (green)
Power source selection (JP2)
ZIO connector (CN7)
ST morpho pin header (CN12)
ZIO connector (CN10)
Reset button (B2)
Ethernet RJ45 connector
(CN14)
