13

Expansion connectors

13.1

ST Zio connectors

For all STM32H5 Nucleo-144 boards,
(CN7, CN8, CN9, and CN10), including the support of ARDUINO
CN7, CN8, CN9, and CN10 are female connectors on the top side and male connectors on the bottom side. They
include support for ARDUINO
board.
UM3115 - Rev 1

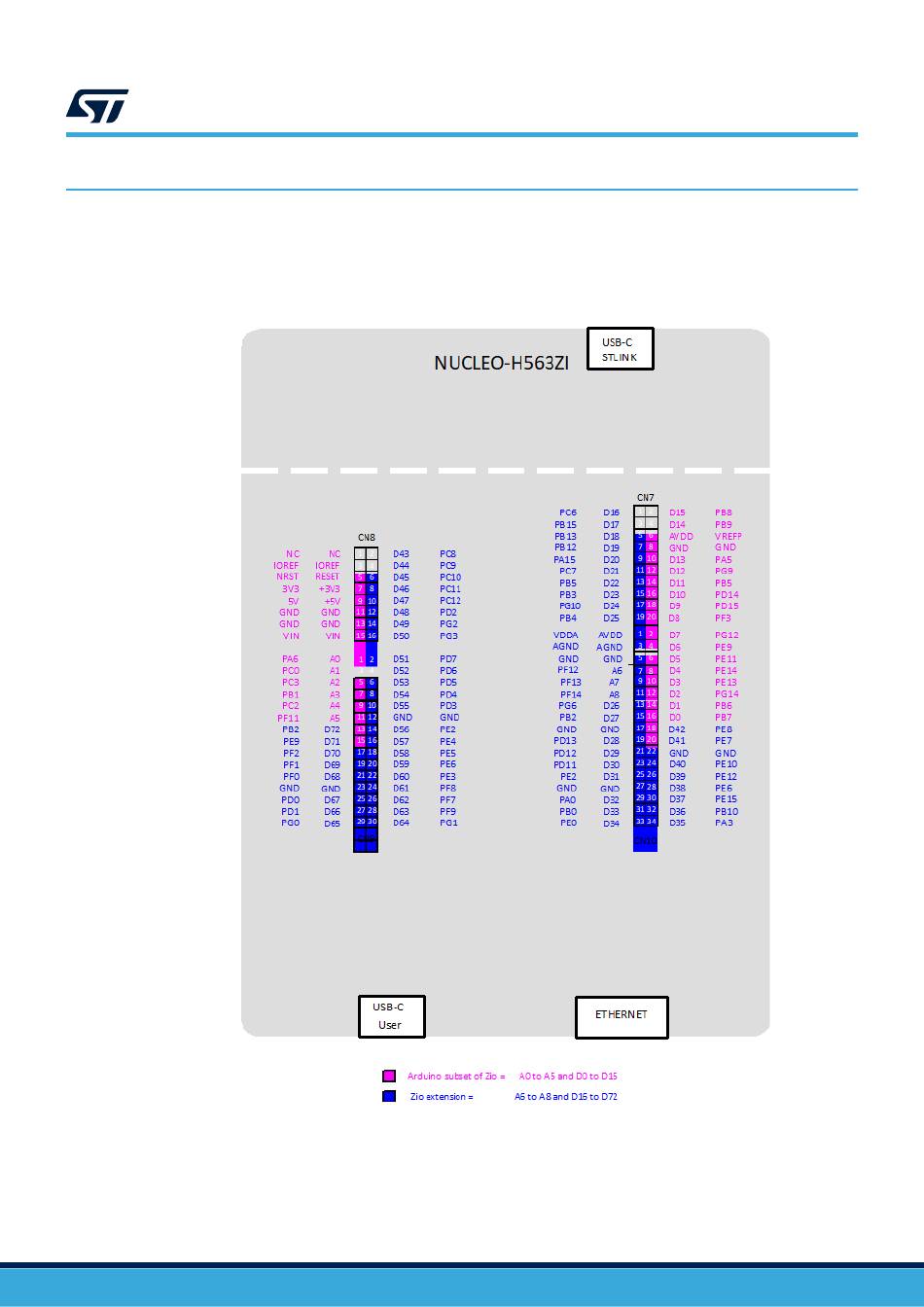

Figure 17 shows the signals connected by default to the ST Zio connectors
Figure 17. STM32H5 Nucleo-144 board
®
Uno V3. Most shields designed for ARDUINO
Expansion connectors
®
Uno V3.
®
can fit the STM32H5 Nucleo-144
UM3115
page 31/43
