The X4 oscillator generates the 25 MHz clock for the PHY. The 50 MHz clock for the MCU (derived from the
25 MHz crystal oscillator) is provided by the RMII_REF_CLK of the PHY.
1. Green LED: Ethernet traffic
2. Amber LED: Ethernet connection
The related pinout for the Ethernet connector is listed in
Connector
CN14
UM3115 - Rev 1

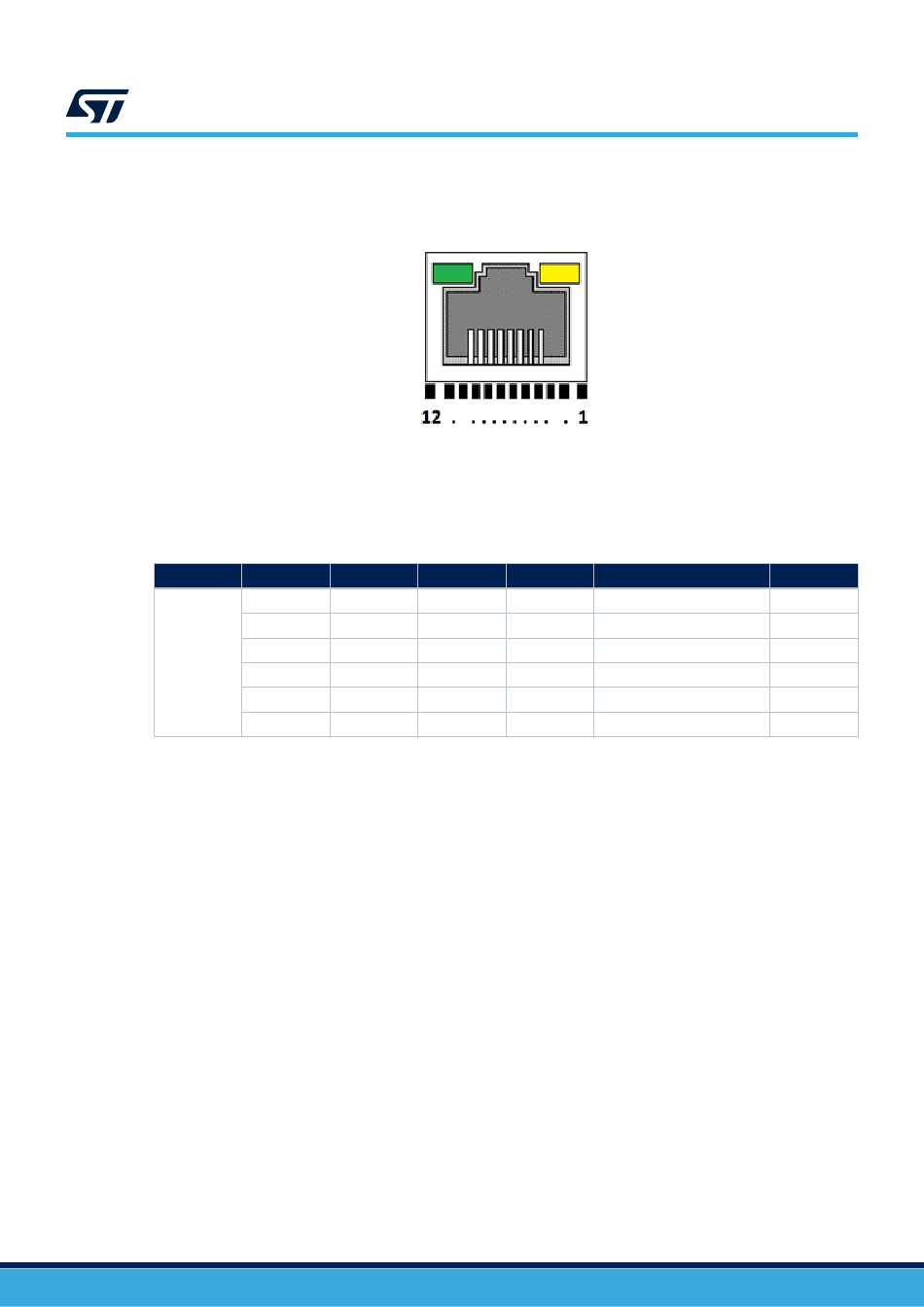

Figure 16. Ethernet RJ45 connector (CN14) front view
Table 20. Ethernet connector (CN14) pinout
Pin number Description
1 TX+
2 TX-
3 RX+
4 NC
5 NC
6 RX-
Table 20. Ethernet connector (CN14)
MCU pin Pin number
- 7
- 8
- 9
- 10
- 11
- 12
UM3115
Ethernet RJ45 connector (CN14)
pinout.
Description MCU pin
NC
NC
Yellow LED cathode
Yellow LED anode
Green LED cathode
Green LED anode
-
-
-
-
-
-
