Installing The Wire Cutter; Installing The Wire Cutter On The Cleaning Device; Maximum Wire Diameter; Operating Principle Of The Electrically Controlled Wire Cutter - Fronius Robacta TC 2000 ext. Operating Instructions Manual

Installing the wire cutter

Installing the
NOTE!
wire cutter on
the cleaning Wire cutters for conventional applications (one wire electrode) and for twin ap-
plications (two wire electrodes) should be installed in the same manner – as de-
device
scribed below.
NOTE!
The spacers, lock washers and screws for installing the wire cutter are supplied
with the wire cutter.

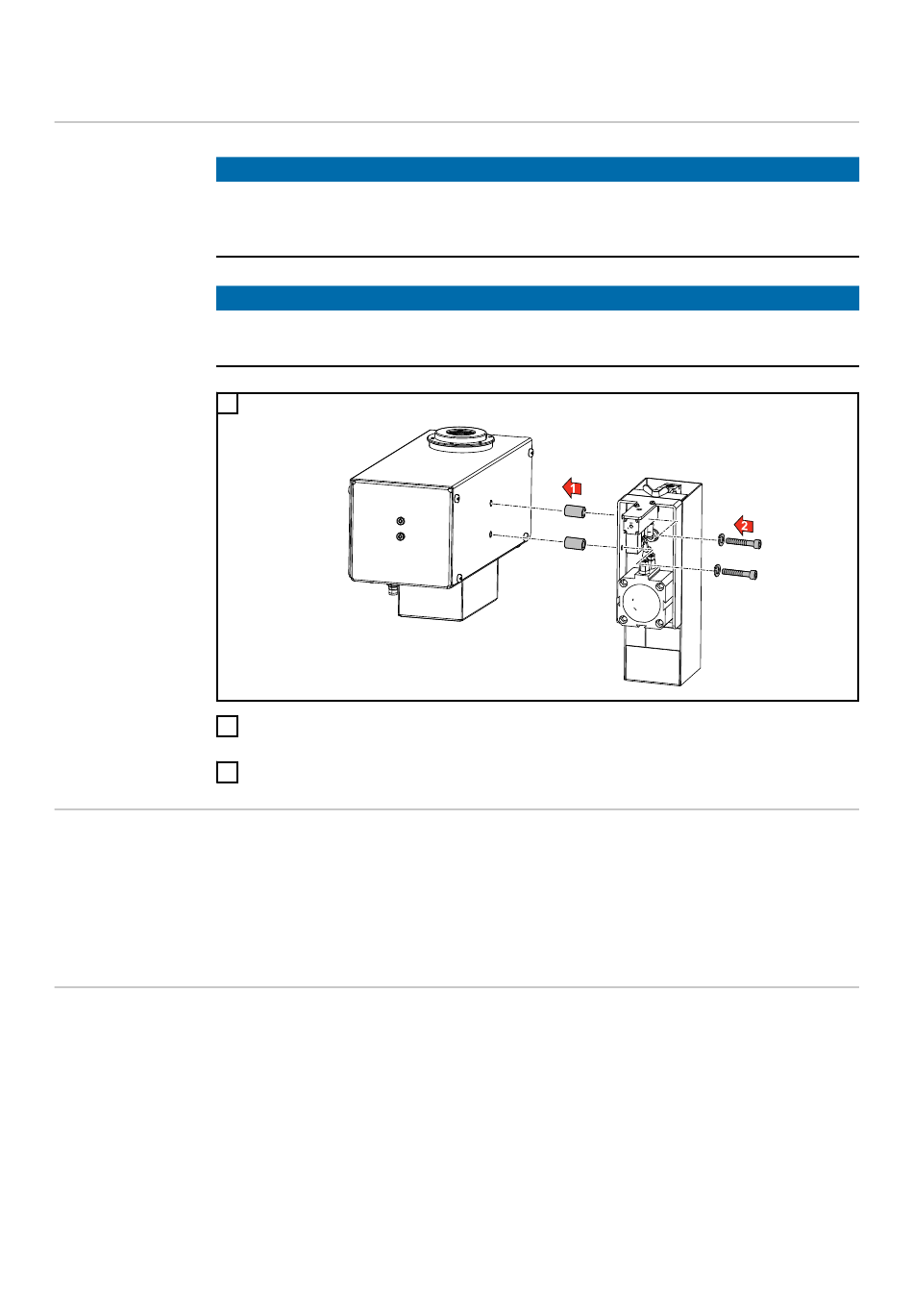

1
2
3
Maximum Wire For conventional applications (one wire electrode), wire electrodes with a diamet-
Diameter er of up to 1.6 mm (0.063 in.) can be cut with the appropriate wire cutter.
For twin applications (two wire electrodes), two wire electrodes with a diameter
of up to 1.6 mm (0.063 in.) can be cut simultaneously with the appropriate wire
cutter.
Operating Prin-
The opening and closing of the electrically controlled wire cutter is triggered by
ciple of the Elec- an active signal from the robot control.
trically Con-
trolled Wire Cut-
ter
42
Connect the wire cutter connection cable to the wire cutter connection sock-
et on the cleaning unit
Connect the wire cutter's compressed air supply
