Setting Up and Connecting the Cleaning Device

Assembly note

NOTE!
Before the definitive installation of the base unit and cleaning unit, make sure
that the cleaning unit interconnecting hosepack is long enough for the planned
installation positions.
After the installation of the devices, the interconnecting hosepack must rest on
the ground without any tensile stress and must not be suspended in the air.
Screwing the
cleaning unit and
work stand to
Danger from welding residues being thrown out of the cleaning aperture of the
the mounting
cleaning unit.
surface (founda-
This can result in serious personal injury and damage to property.
▶
tion)
NOTE!
Depending on the mounting surface (foundation), different mounting materials
may be required for connecting the work stand to the surface.
The mounting materials required for connecting the work stand to the mounting
surface are not supplied with the work stand. The screws that are supplied with
the work stand are not suitable for screwing the work stand to the mounting sur-
face. The installer is responsible for selecting the proper mounting materials.
1
2
38
WARNING!
Only use the cleaning unit with the supplied collecting container for welding
residues.
Position the work stand (available as an option) on a level, solid, and vibra-
tion-free surface
- Position the work stand so that the robot's approach route to the clean-
ing unit on the work stand is as short as possible
Tightly screw the work stand to the mounting surface using the selected
mounting materials

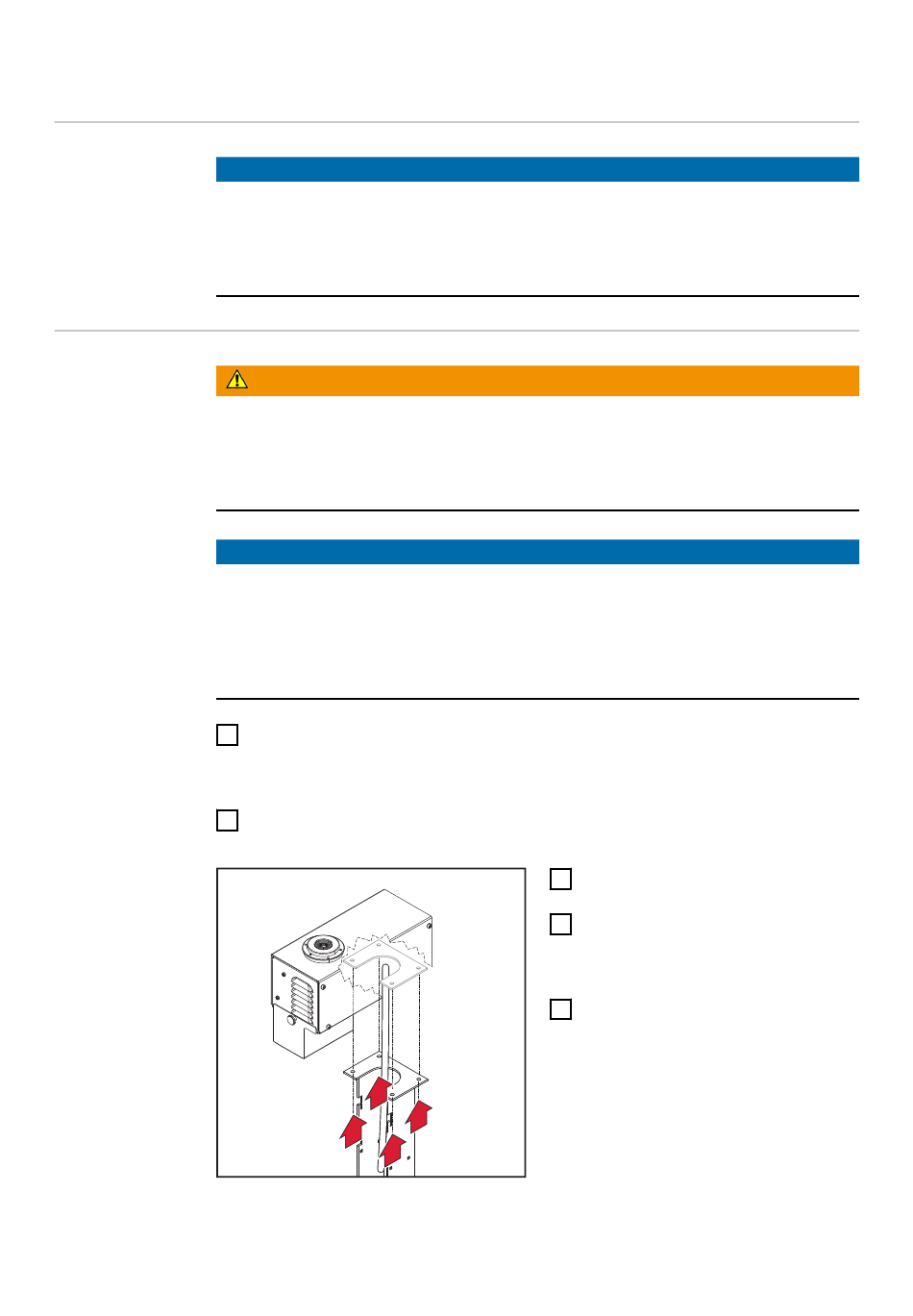

Position the cleaning unit on the
3
work stand
Attach the cleaning unit to the
4
work stand using lock washers and
screws – lock washers and screws
are supplied with the work stand
Clip the collecting container for
5
the welding residues onto the
cleaning unit and fasten it with the
knurled-head screw
