NOTE!
After this indication lights up, one more cleaning process can be carried out.
The device will not charge itself for the next cleaning process until it has cooled
down to the operating temperature.
(3)
(4)
NOTE!
Prerequisite for the cleaning device to perform the above function:
(5)
Danger from electrical current.
This can result in serious personal injury and damage to property.
Connections and
mechanical com-
ponents of the
base unit
Device front
Fill level indication
No function, always lit
Discharge button
If the button is pressed briefly, the cleaning device will carry out the fol-
lowing functions:
1.
Cleaning process is triggered
If the button is pressed and held down, the cleaning device will carry out
the following functions in sequence:
1.
Cleaning process is triggered
Wire cutter is activated (if present)
2.
3.
Compressed air/parting agent mixture is sprayed out of the cleaning
aperture
The signal Quick Stop is set, capacitors are thus charged
Ready to clean indication
Lights up when the device is ready to clean
WARNING!
Once the ready to clean indication (5) lights up, do not disconnect the inter-
connecting hosepack from the base unit.
Before disconnecting the interconnecting hosepack, disconnect the power
supply and the compressed air supply to the base unit.

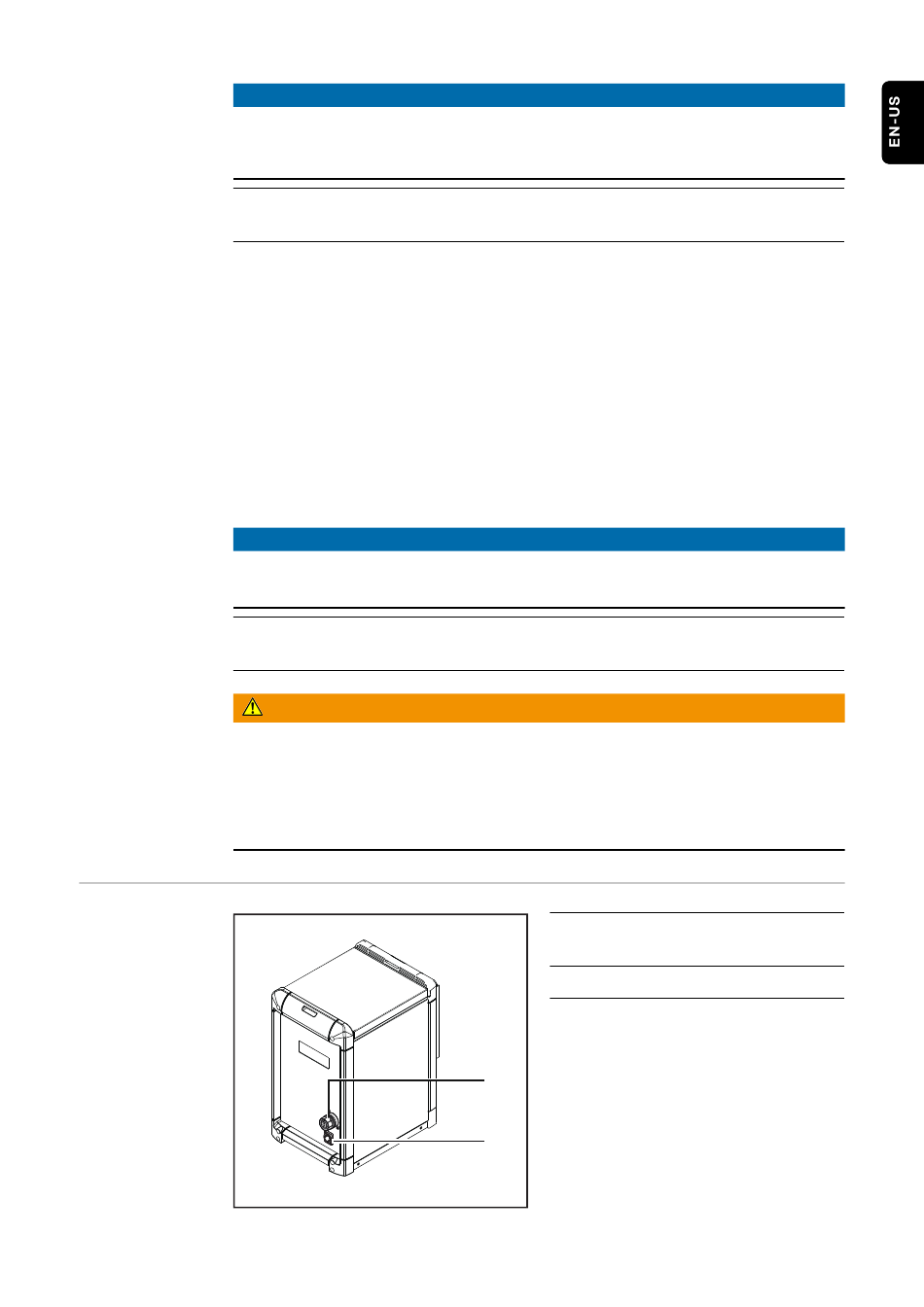

(1)
Standard I/O (X1) connection
socket
(2)
Mains cable connection socket
(1)
(2)
29
