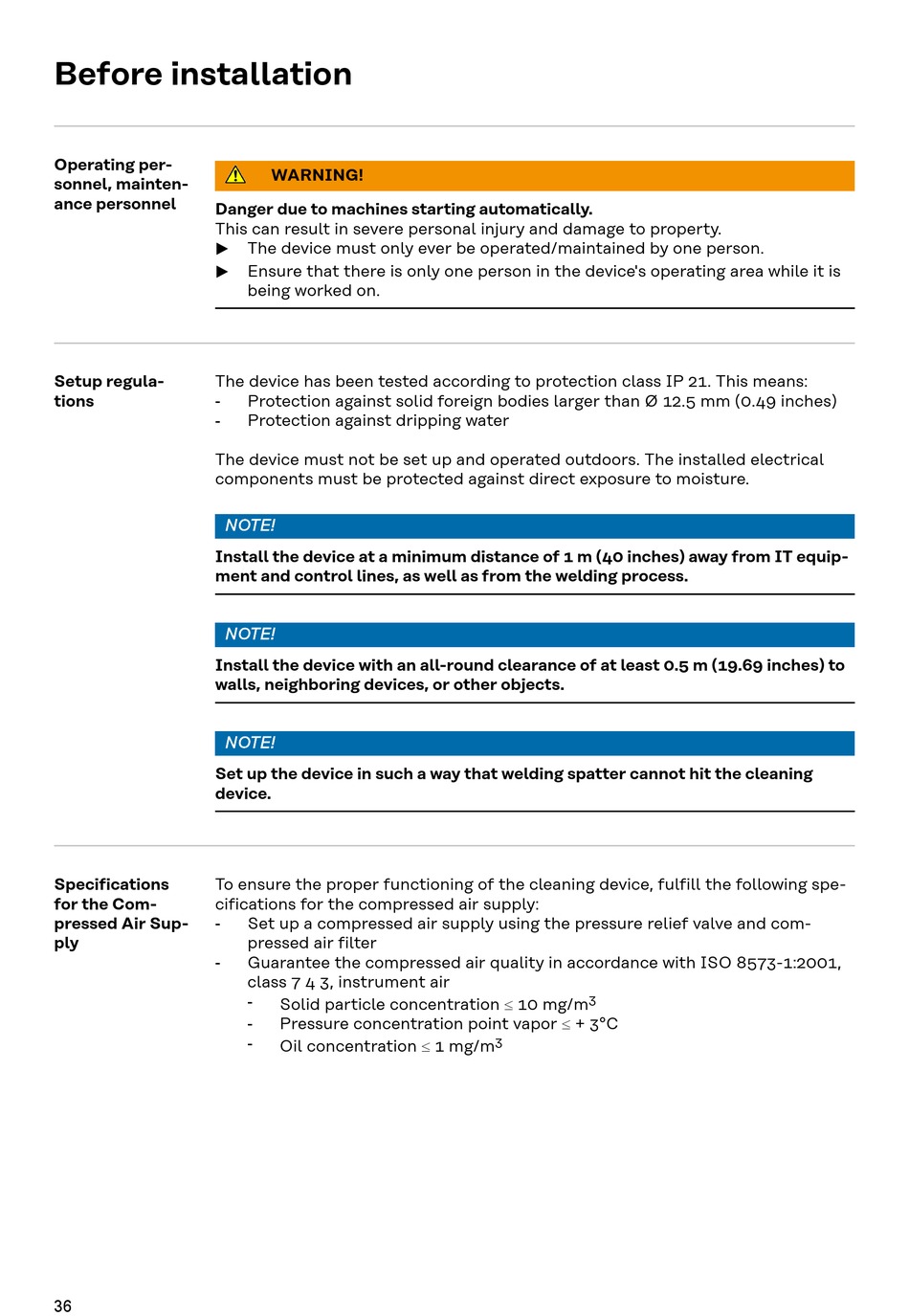

Before installation

Operating per-
sonnel, mainten-
ance personnel
Danger due to machines starting automatically.
This can result in severe personal injury and damage to property.
▶
▶
Setup regula- The device has been tested according to protection class IP 21. This means:
tions -
-
The device must not be set up and operated outdoors. The installed electrical
components must be protected against direct exposure to moisture.
NOTE!
Install the device at a minimum distance of 1 m (40 inches) away from IT equip-
ment and control lines, as well as from the welding process.
NOTE!
Install the device with an all-round clearance of at least 0.5 m (19.69 inches) to
walls, neighboring devices, or other objects.
NOTE!
Set up the device in such a way that welding spatter cannot hit the cleaning
device.
Specifications To ensure the proper functioning of the cleaning device, fulfill the following spe-
for the Com-
cifications for the compressed air supply:
pressed Air Sup- -
ply
-
36
WARNING!
The device must only ever be operated/maintained by one person.
Ensure that there is only one person in the device's operating area while it is
being worked on.
Protection against solid foreign bodies larger than Ø 12.5 mm (0.49 inches)
Protection against dripping water
Set up a compressed air supply using the pressure relief valve and com-
pressed air filter
Guarantee the compressed air quality in accordance with ISO 8573-1:2001,
class 7 4 3, instrument air
-
Solid particle concentration £ 10 mg/m
Pressure concentration point vapor £ + 3°C
-
-
Oil concentration £ 1 mg/m
3
3
