Summary of Contents for Clarke CBP900
- Page 1 BOOSTER PUMP MODEL NO: CBP900 PART NO: 7239201 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC09/22...
-
Page 2: Environmental Recycling Policy

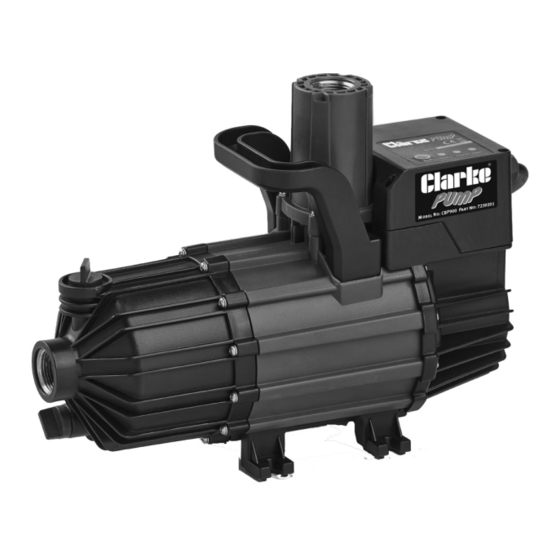

INTRODUCTION Thank you for purchasing this CLARKE booster pump. This non-submersible centrifugal pump is designed to pump clean water for spraying and irrigation purposes and for pumping water to greenhouses. It can also be used for boosting running water feed pressure (not drinking water) or for pumping out wells or ponds. -
Page 3: Specification
SPECIFICATION Water Classification Clean Maximum Delivery 5800 L/hr Maximum Head 32 m Operating pressure 3.2 bar Max Operating Temperature 0-35 Max particle size 0.15 mm Ingress Protection Rating IPx4 Supply 230V ~ 50Hz Rated Power 900 W Input Current@ Maximum Head Input Current@ Maximum Flow 3.9 A Outlet Thread Size... -
Page 4: General Safety Precautions
8. NEVER use for pumping flammable liquids or corrosive chemicals. This pump is designed to pump clean water only. 9. ALWAYS have the pump serviced by your local CLARKE dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 6: Installation Of The Pump
INSTALLATION OF THE PUMP IMPORTANT: The pump MUST NOT be connected to the mains power supply until all hose/pipe installations are completed. INSTALLATION LAYOUT The pump must always be installed and operated in a horizontal position using the fixing holes in the base to secure it in position. The illustration shows typical pipework connection including an inlet filter and hose adapters listed on page 16. - Page 7 Because of the variety of possible installations, no plumbing accessories are supplied with your pump. However, accessories designed specifically for this pump are available from your CLARKE dealer. The performance of your pump will be affected by the diameter of the inlet pipe - any restriction will greatly reduce the flow.
-
Page 8: Priming The Pump
PRIMING THE PUMP When suction lift is used to draw water into the pump it is essential that all connections and hoses are completely air tight or the system will not work. It is necessary to completely fill the inlet side of the pump with water before being started for the first time or if the system has been drained for maintenance/repair. -
Page 9: The Control Panel
THE CONTROL PANEL The "Power On" indicator light indicates that there is power to the pump. Press the "Reset" button to start the pump running. It may also be that the pump is in pressure holding and stopped state. When the pressure on the discharge side is lower than the starting pressure, the pump will automatically start pumping. -
Page 10: Care During Use
1. DO NOT allow the pump to run dry, otherwise the seal between the pump and motor may be damaged. If a leak occurs at this point, allowing water to pass from the pump to the motor, contact your Clarke dealer for overhaul. -
Page 11: Care And Maintenance
The pump should not be taken apart by the user if overhaul is required, but should be taken to your nearest CLARKE dealer for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 12: Troubleshooting
Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your CLARKE making poor seal. dealer for repair. Impeller / mechanical Return to your CLARKE seal is badly worn. dealer for repair. - Page 13 Resistance in inlet pipe Check pipe and clean caused by obstruction. out as necessary Loose rotating Return to your CLARKE component dealer for repairs. Installation of pump is Stop pump and unstable. re-position. Air pocket in pump or Release plug in impeller pipeline.
-
Page 14: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 15 COMPONENT PARTS ID DESCRIPTION ID DESCRIPTION Valve Signal wire Pump head Micro switch Screw assembly Silica gel Hex bolt Inductive probe Spring washer Cable clamp Flat gasket S/t screw Guide plate cover S/t screw Plastic pad Clamping ring Impeller Thrower Guide plate O-ring Main shell...
- Page 16 ID DESCRIPTION ID DESCRIPTION S/t screw Support legs Cable block St screw Terminal box cover Rubber pad St screw O-ring Gasket Switch seal 52-1 screw Washer 52-2 Gasket Holding down nut 52-3 Cable Power cable 52-4 Lug plate Terminal cap 52-5 Gasket Cable tie 53-1 St screw...
- Page 17 SUITABLE ACCESSORIES FOR WATER PUMPS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 18 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 19: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY-CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
