Summary of Contents for Clarke CSV1A

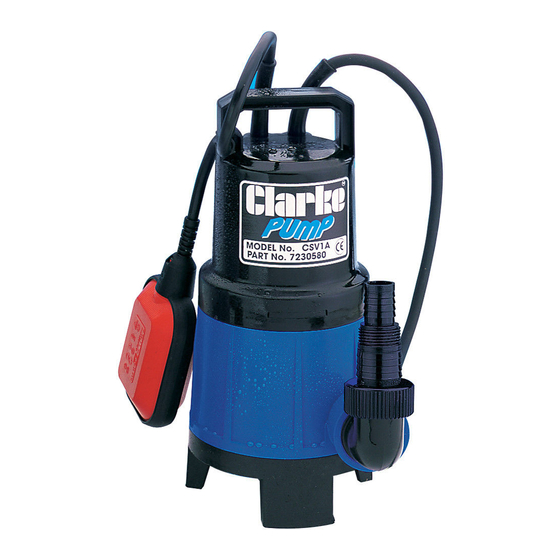

- Page 1 SUBMERSIBLE WATER PUMP MODEL NO: CSV1A, CSV2A PART NO: 7230582, 7230602 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC11/18 iss 5...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Submersible Water Pump. This pump is designed for pumping clean water or water containing solids in suspension. It is not designed for pumping slurry, sludge, mud or heavily polluted water, or any water containing chemicals or other acidic contaminants including salt water. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. These pumps are designed to pump WATER ONLY. Never use for pumping flammable liquids or chemicals. 2. Never run the pump dry. 3. An approved Residual Current Device (RCD) which has a tripping current of less than 30mA must be used when pumping from ponds or swimming pools. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS nnect the mains lead to a suitable 110 Volt (50Hz) electrical supply through an approved plug or a suitably fused isolator switch, or to a suitable portable 110 volt transformer. We recommend that this pump is fitted with a Residual Current Device (RCD). If the pump is to be connected to an outdoor electrical supply, ensure both the plug and the socket are of a British Standard approved waterproo design. - Page 5 The pump is completely submersible and should be placed in a vertical position on a solid flat surface, placing the pump on a couple of house bricks if required. SUITABLE HOSES AND SPARE/REPLACEMENT MULTI HOSE ADAPTERS ARE AVAILABLE FROM YOUR CLARKE DEALER.
-
Page 6: Using The Pump
USING THE PUMP WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE. DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY. WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES. 1. -
Page 7: Maintenance
ENSURE THE CIRCUIT BREAKER IS OPEN. These pumps should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. • Do not use the pump if there is any damage to the mains supply cable or to the float switch or its cable. -
Page 8: Troubleshooting
Replace the strainer and try again. 6. If the pump still fails to start, consult your CLARKE dealer for advice. 7. Float switch may be jammed against side wall, or prevented from moving. -
Page 9: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM... -
Page 10: Parts List
PARTS LIST DESCRIPTION PART NO NO DESCRIPTION PART NO Float-switch LDP1380002 21 Stator (CSV1A) LDS3410004 LDS3600170 21 Stator (CSV2A) LDS3410017 Cable 10m LDP1320016 22 Joint O-ring LDP1200007 Grommet Pump housing LDS3500206 (CSV1A) Grommet LDP1230003 23 Pump housing LDS3500207 (CSV2A) Capacitor... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY...
