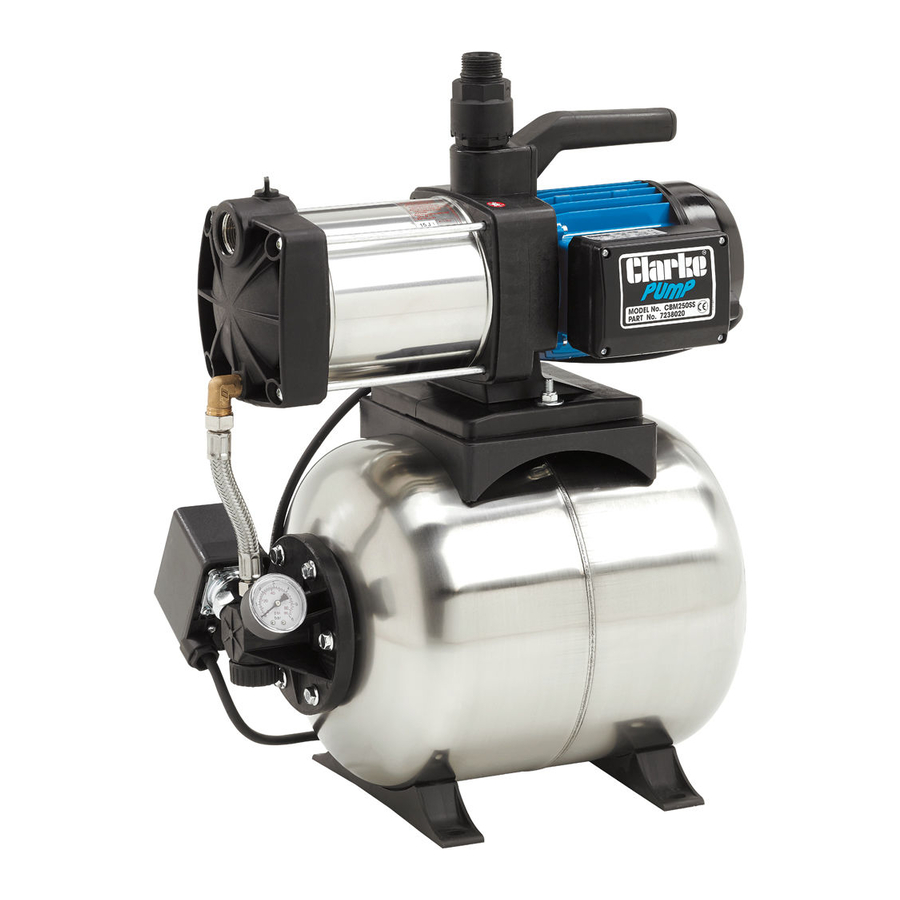

- Page 1 BOOSTER PUMP MODEL NO: CBM250SS PART NO: 7238020 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1220...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE water pump. which is a general purpose pump, suitable for a variety of applications involving the transfer of clean, cold water ONLY (up to a maximum of 35 C) for domestic and gardening applications. -
Page 3: Specification
SPECIFICATION Maximum Delivery 100 l/min Maximum Head 60 m Maximum Suction Lift On/Off Pressure 3.5/5.2 Bar Ingress Protection Rating IPx4 Supply 230V ~ 50Hz Rated Power 1250 W Tank Capacity 24 Litres Outlet Thread Size 1” BSP Weight 19.2 kg Sound Power Level 73 dB LpA PUMP PERFORMANCE CURVE... -
Page 4: General Safety Precautions
The use of non standard parts could be hazardous. 10. NEVER use this product if any part is damaged. Have it inspected and repaired by your local Clarke dealer. Always turn the pump off before carrying out any maintenance. 11. NEVER allow the pump to run dry. -
Page 5: Electrical Installation
ELECTRICAL INSTALLATION WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 6: Installation Of The Pump
Because of the variety of possible installations, no plumbing accessories are supplied as standard with your pump. However, accessories designed specifically for this range of pumps are available from your CLARKE dealer. The pump must always be installed and operated in a horizontal position i.e. - Page 7 This is particularly important in the case of multi- stage pump such as the CBM250SS. A filter specifically designed for all pumps in the range is available from your CLARKE dealer.
- Page 8 In order for the system to operate correctly it is necessary to pressurise the air chamber to 1.5 Bar (22psi), which is carried out as follows: Unscrew the large protection cap on the end of the air chamber to reveal the air valve and use an air line or foot pump to charge the chamber to the specified pressure, checking with a standard air pressure gauge until satisfied.
-
Page 9: Troubleshooting
Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your CLARKE making poor seal. dealer for repair. Impeller / mechanical Return to your CLARKE seal is badly worn. dealer for repair. - Page 10 Installation of pump is Stop pump and unstable. re-position. Air pocket in pump or Release plug in impeller pipeline. housing to release air. Damaged impeller Return to your CLARKE dealer for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 11: Maintenance And Cleaning
The pump should not be taken apart by the user if overhaul is required, but should be taken to your nearest CLARKE dealer for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 12 COMPONENT PARTS CBM250SS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 13: Component Parts List
COMPONENT PARTS LIST ID DESCRIPTION ID DESCRIPTION Terminal Bearing Joint Shaft with bearings Flexible pipe Stator Cross screw Gasket Spring washer Capacitor holder O-ring Capacitor Flange MC1” gas Screw O-ring O-ring Screw 3/8” gas Capacitor holder cover Joint Spring washer O-ring Cable fastener Counterflange... - Page 14 ID DESCRIPTION ID DESCRIPTION 4-way Flange Adjuster O-ring Elbow Pressure Switch Foot Cable Bracket Cable Non-return valve Clip O-ring Spring Joint O-ring ACCESSORIES Part No:7950190 1” BSP Hose adaptor 90 bend (female) 1” BSP Plastic Foot Valve Filter FVF10 Part No:7950680 1”...
-
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
