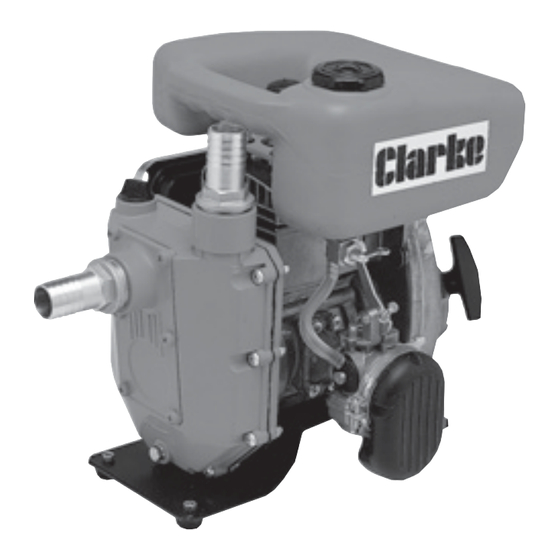

- Page 1 Petrol Driven Water Pump Petrol Driven Water Pump Model No. CD1 - 1 Part No. 7230034 OPERATING & MAINTENANCE INSTRUCTIONS...
-
Page 2: Table Of Contents
Thank you for purchasing this Clarke CD1 petrol driven water pump. Before attempting to operate this pump please read this instruction manual thoroughly and follow all directions carefully. This is for your own safety and that of others around you, and to help you achieve long and trouble free service from your pump. -
Page 3: Installation
Installation WARNING! Never run the engine in an enclosed space. Ensure adequate ventilation at all times. The pump must be situated on a firm, flat, level surface. Make sure that the pump is placed away from the edge of any pit or pool and cannot fall in. -
Page 4: Operating Instructions
Operating Instructions The pump is designed to pump water. Do not use it to pump flammable liquids or chemicals. Before starting the pump engine, prime the pump by removing the vent plug and filling the pump casing with water. Do not run the pump dry as damage can result. -
Page 5: Maintenance
Maintenance Clean the engine and pump assembly regularly, checking for any loose bolts etc. Lubricate linkages with a general purpose oil or grease as appropriate. The engine is lubricated internally by the 2-stroke fuel. Clean the air filter at least every 30 hours of operation; more frequently if the pump is used in a particularly dusty environment. -
Page 6: Parts List And Exploded View - Engine
Parts List and Exploded view - Engine No.Qty Description Part No No.Qty Description Part No 1 4 Screw M5 x 25 GM7306 37 1 Con rod assembly GMB152 2 1 Cover (std recoil starter) GMB219 38 1 Piston pin GMB146 2A 1 Cover (B53 recoil starter)GMB387 39 2 Circlip GMB147... -
Page 8: Parts List And Exploded View - B53 Recoil Starter
Parts List and Exploded View - B53 Recoil Starter No. Qty Description Part No Screw M5 x 25 GM8110 Cover GMA430 Spring cover GMA399 Return spring GMA378 Start pulley GMA447 Plastic insert GMA136 Spring GMA207 Cover GMA409 Screw M6 x 35 GMA655 Handgrip and cord GMA741... -
Page 9: Parts List And Exploded View - Standard Recoil Starter
Parts List & Exploded View - Standard Recoil Starter No. Qty Description Part No Starter case GMB233 Cotter GMB213 Return spring GMB159 Start pulley GMB329 Washer GMB327 Washer GMB238 Screw GM7525 Handgrip and cord GMA741 Complete pawl box GMB225 Complete recoil starter GM8145... -
Page 10: Parts List And Exploded View - Pump
(with standard recoil starter) Spare Parts and Service Contacts For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com...
