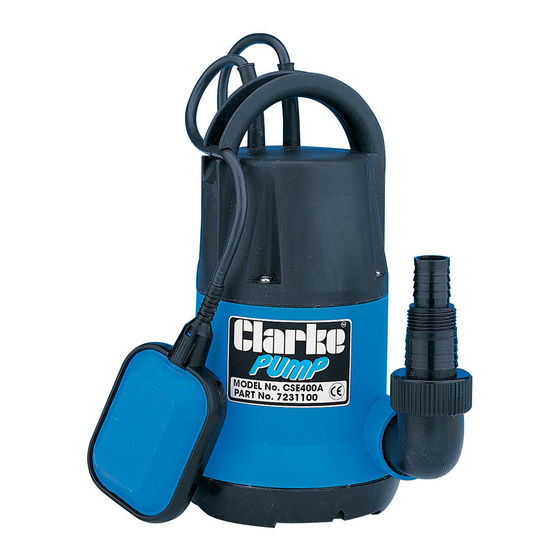

- Page 1 SUBMERSIBLE WATER PUMP MODEL NO: CSE400A PART NO: 723100 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0818 iss 3...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE submersible pump. This highly efficient pump is designed for pumping clean water only, please see Features, page 5), and are ideally suited for draining ponds, pools, building excavations etc, where water temperature does not exceed 35°C. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS GENERAL PUMP SPECIFIC 1. Read all instructions before use 1. Do not pump explosive / and save these instructions for flammable liquids or chemicals. future use. 2. Never allow the pump to run dry 2. An approved residual current or operate out of the water. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. - Page 5 FEATURES This pump is of rugged and durable construction, designed for long lasting operation and its plastic body provides good anti corrosive properties. The motor is provided with built in overload protection. For your information the chart, on page 9 shows the flow rate for the pump at various heads.
- Page 6 If you subsequently need to install a larger diameter hose, replacement adapters are available from your Clarke dealer. Ensure the hose is secured with a suitable worm drive clip (not supplied).
-
Page 7: Positioning The Pump
SETTING UP AND USING THE PUMP POSITIONING THE PUMP 1. Place the pump on a flat surface in the area that you want to drain. • If there is sediment in the operating area, the pump should be placed vertically on house bricks or similar. •... -
Page 8: Maintenance
This pump should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. Do not use the pump if there is any damage to the mains supply cable, or to the float switch or its cable. -
Page 9: Specifications
305 x 155 mm SPARE PARTS Replacement parts are shown in Fig.1. Elbow (1) and 3-stage Adapter (2). Please consult your local Clarke dealer or Clarke International Spare Parts Department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Troubleshooting
6. Float switch may be jammed against side wall, or prevented from moving. 7. If the pump still fails to start, consult your CLARKE dealer for advice. PUMP WILL 1. Check that the inlet is not blocked. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
