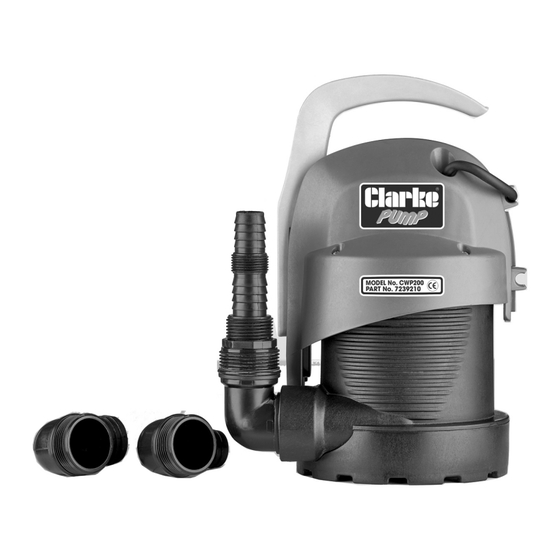

- Page 1 SUBMERSIBLE CLEAN WATER PUMP MODEL NO: CWP200 PART NO: 7939210 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0719 - ISS 1...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE submersible pump. The pump is designed for domestic use, such as drying out basements and garages subject to flooding, and for pumping drainage wells, rainwater collecting traps or infiltrations from roof gutters, etc. -
Page 3: Specifications
SPECIFICATIONS Dimensions (L x W x H) 150 x 205 x 285/245 mm (handle raised/lowered Weight 3.75 kg Cable length 10 m Power supply 230V ~ 50Hz Ingress protection IPX8 ¼ Outlet thread diameter ”BSP female Rated power 220W Maximum head height 5.5 m Maximum particle size 0.5 mm... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS GENERAL 1. Read all these instructions before use and save them for future reference. 2. An approved residual current device (RCD) which has a tripping current of less then 30mA MUST be used for all operations. 3. The electrical supply must be the same as that on the rating plate. 4. -
Page 5: Electrical Connections
9. NEVER insert your fingers into the pump whilst it is connected to the mains. 10. Keep the pump clear of any sediment by standing it on a platform or brick or suspending it at a suitable depth. 11. Do not use the pump if the water is liable to freeze, as this can cause damage to the pump. -
Page 6: Installing The Pump
Do not overtighten. • Hoses to suit each of the above adaptor sizes are all readily available from your local Clarke dealer. FITTING THE MULTI-STEP ADAPTER The stepped hose adaptor supplied is designed to be used for either screw type hose connection or push fit. -
Page 7: Positioning The Pump
POSITIONING THE PUMP 1. Stand the pump upright on a flat surface in the pool that you want to drain. 2. If there is sediment in the pool or pond, place the pump on blocks, to avoid blocking the water inlet. 3. -
Page 8: Maintenance
This pump should require no maintenance other than regular cleaning. If the pump shows signs of wear or damage contact your CLARKE dealer for advice. Check the pump regularly to ensure the water inlet is clear of leaves or other debris taking care to remove any debris from around the impeller. -
Page 9: Troubleshooting
6. Water level too low. 7. If the pump still fails to start, consult your CLARKE dealer for advice. PUMP WILL 1. Check that the inlet is not blocked. -
Page 10: Component Parts
COMPONENT PARTS Impeller Surround O-ring Lower Body O-ring set Motor Winding Washer Motor Bearing Motor Rotor Wave Washer Sealing Ring Upper Enclosure Main Housing Impeller Circlip Capacitor Retaining Clip Sealing Ring Lower Enclosure Screw Upper Moulding Gland Gland Connecting Plate Collet Collet Washer... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
