- Page 1 BOOSTER PUMP MODEL NO: CBT1400SS PART NO: 7238023 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC02/24...
-
Page 2: Environmental Recycling Policy

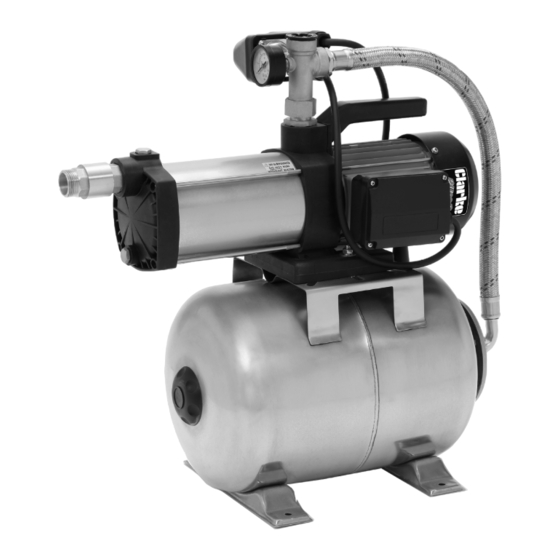

INTRODUCTION Thank you for purchasing this CLARKE Booster Pump. which is suitable for a variety of applications involving the transfer of clean, cold water (up to a maximum of 35 C) for domestic and gardening applications. Please read this manual thoroughly and ensure you are familiar with all aspects relating to your particular pump before its connection and use. -
Page 3: Specification
SPECIFICATION Model CBT1400SS Maximum Delivery 90 L/min Maximum Head 50 metres Operating Pressure 3.6-5.0 Bar Ingress Protection Rating IPx5 Supply 230V~ 50Hz Rated Input Power 1650 W Rated Output Power 1300 W Input current @ Maximum Head 5.92 A Input current @ Maximum Flow 5.88 A... -
Page 4: General Safety Precautions
The use of non standard parts could be hazardous. 10. NEVER use this product if any part is damaged. Have it inspected and repaired by your local Clarke dealer. Always turn the pump off before carrying out any maintenance. 11. NEVER allow the pump to run dry. -
Page 5: Electrical Installation
ELECTRICAL INSTALLATION WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch. This product may be fitted with a non-rewireable plug. -
Page 6: Installation Of The Pump
Because of the variety of possible installations, no plumbing accessories are supplied. However, accessories designed specifically for this range of pumps are available from your CLARKE dealer. The performance of your pump will be effected by the diameter of the inlet pipe - any restriction will greatly reduce the flow. -
Page 7: Preparation For Use
A 1” BSP hose adapter will be required for connection to the inlet and outlet port. These are available from your CLARKE dealer. A foot valve and filter should be fitted to the lower end of the suction hose as illustrated, so as to help... -
Page 8: Priming The Pump
In order for the system to operate correctly it is necessary to pressurise the air chamber between 2 Bar and 2.5 Bar (28-35psi), which is carried out as follows. Unscrew the protective cap on the end of the air chamber to reveal the air valve and use an air line or foot pump to charge the pressure vessel to the specified pressure. -
Page 9: Care And Maintenance
The pump should not be taken apart by the user if overhaul is required, but should be taken to your nearest CLARKE dealer for repair. Suitable Accessories from the CLARKE range Part No:7950200 1”... - Page 10 1” Dia Layflat Delivery Hose Part No:7955110 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 11: Troubleshooting
Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your CLARKE making poor seal. dealer for repair. Impeller / mechanical Return to your CLARKE seal is badly worn. dealer for repair. - Page 12 Stop pump and unstable. re-position. Air pocket in pump or Release plug in impeller pipeline. housing to release air. Damaged impeller. Return to your CLARKE dealer for repair. PF1 FILTER SUPPLIED WITH THE PUMP Description Transparent body Filter cartridge O-ring Top body...
-
Page 13: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 14 COMPONENT PARTS ID DESCRIPTION ID DESCRIPTION Brass screw plug Tie bolt Mx165 Suction end casing Terminal box cover Self priming cover Power cable Locking nut Seal Impeller Capacitor Diffuser Terminal box End bushing Cable clamp Pump housing Seal Circlip O-ring Discharge section Connecting wires Tank Bladder...
