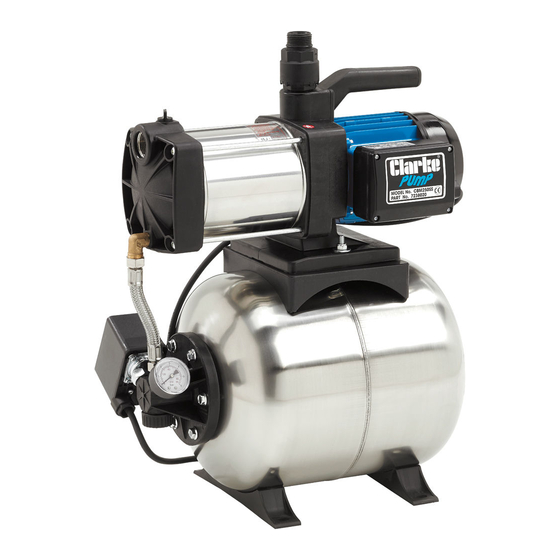

  • Page 1 Model Nos CBM100SS, 130SS, 250SS, 240 & 240E CBM100SS, 130SS, 250SS, 240 & 240E CPE100P, 100TF, 120 & 130SS CPE100P, 100TF, 120 & 130SS HANDY PUMP 2 HANDY PUMP 2 OPERATING & MAINTENANCE INSTRUCTIONS © 0406...
  • Page 2: Table Of Contents

    Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. When disposing of this product, ensure it is disposed of according to all local ordinances.
  • Page 3: Safety Precautions

    Thank you for purchasing this CLARKE Water Pump, which is a general purpose pump, suitable for a variety of applications involving the transfer of clean, cold water ONLY (up to a maximum of 35 C) - for domestic and gardening applications.
  • Page 4: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING THIS EQUIPMENT MUST BE EARTHED This appliance, which is provided with a 3-pin BS 1363 plug, should be connected to a standard domestic 13 amp, 230 volt (50Hz), electrical supply and we strongly recommend that this be done through a Residual Current Device (RCD). Should the plug require renewing at any time, the wires should be connected in accordance with the following colour code: Green &...
  • Page 5: Water Connections

    4 metre inlet hose complete with a foot valve and filter). However, accessories designed specifically for this range of pumps are available from your CLARKE dealer and are listed on page 30. The pump must always be installed and operated in a horizontal position i.e. with the outlet port facing vertically upwards.
  • Page 6 The filter should hang vertically when completed. CBM240E This pump is set up as a BOOSTER Pump by incorporating the CLARKE EPC 1000 HYDROTRONIC UNIT - a computerised electronic device which automatically switches the pump ON and OFF whenever a tap, or other restriction in the outlet side of the pump, such as a spray lance etc., is turned ON or OFF.
  • Page 7: Priming The Pump

    CPE100TF, CBM100SS, CBM130SS and CBM250SS These units are set up as a BOOSTER pumps by utilising an air chamber with a pressure regulator to provide a constant pressure at the outlet. All models are provided with non-return valves and Model CPE100TF is also provided with an inlet filter.
  • Page 8: Troubleshooting

    1. Pressure switch faulty 1. Consult your CLARKE dealer. 2. No water at pump inlet 2. Check for blockage. 3. Faulty Impeller 3. Disasemble and investigate. Should you still experience problems, then contact your Clarke dealer, or CLARKE International Service Department for advice.
  • Page 9: Specifications

    SPECIFICATIONS CPE100P Motor ....... 230V 50Hz Power ......700 Watts Max. Flow ......50 Litres/min Max. Head ...... 42 Metres Max. Suction Height ..9 Metres Max Output Pressure ..6 Bar Part No......7230630 Weight ......6.8 Kg CPE100TF Motor .......
  • Page 10 CPE130SS Motor ....... 230V 50Hz Power ......1250 Watts Max. Flow ......81 L/min Max. Head ...... 50 Metres Max. Suction Height ..9 Metres Part No......7230680 Weight ......19.6 Kg CBM 240 & 240E Motor ....... 230V 50Hz Power .......
  • Page 11 CBM100SS Motor ......230V 50Hz Power ......700 Watts Max. Flow ...... 51 L/min Max. Head ....35 Metres Max. Suction Height ..9 Metres Air Reservoir ....24 Litres ON/OFF Pressure ..2.0/3.5 Bar Part No......7238000 Weight ......15.2 Kg CBM130SS Motor ......
  • Page 12: Parts Lists And Diagrams

    CPE100P...
  • Page 13 CPE100P Item Description Part No. Pump Housing LDS3600249 Cap 3/8" Gas LDS3500009 Joint O-ring LDP1200004 Screw LDP1100002 Washer LDP1120009 Joint O-ring LDP1200024 Injector LDS3250011 Diffuser LDS3500247 Joint 0-ring LDP1200025 Impeller LDS3250009 Mechanical Seal LDP1220003 Flange With Handle LDS3600151 LDP1110001 Joint LDP1240001 Flange LDS3120007...
  • Page 14: Cpe100Tf

    CPE100TF...
  • Page 15 CPE100TF No. Description Part No. No. Description Part No. Joint ....... 1 .. LDP1240006 32 Screw ......1 .. LDP1100055 Nipple ......1 .. LDS3500202 33 Washer ......1 .. LDP1120051 Joint ....... 1 .. LDP1240010 34 Spring ring ..... 1 .. LDP1120002 Flexible Pipe ....
  • Page 16: Cpe130Ss

    CPE130SS...
  • Page 17 CPE130SS Item Description Part No. 1 ... Pump Housing ............. 1 ....LDS3220002 2 ... Screw 3/8" Gas ............2 ....LDS3500009 3 ... Joint O-Ring ..............2 ....LDP1200004 4 ... Screw ................8 ....LDP1100025 5 ... Washer ................8 ....LDP1120008 6 ...
  • Page 18: Cpe120

    CPE120...
  • Page 19 CPE120 Item Description Part Number Pump Housing ............... 1 ....LDS3600030 Screw 3/8" Gas ..............2 ....LDS3500009 Joint O-Ring ................2 ....LDP1200004 Screw ..................8 ....LDP1100002 Washer ..................8 ....LDP1120009 Screw 1/4" Gas ..............2 ....LDS3500008 Joint O-Ring ................
  • Page 20: Cbm240

    CBM240...
  • Page 21 CBM240 No. Description Part No. No. Description Part No. Flange Mc 1" Gas ..... LDS3500280 28 Bearing ....... LDP1180006 Screw 3/8" Gas ....LDS3500009 29 Shaft With Bearings ... LDS3111009 Joint O.ring ......LDP1200004 30 Stator ........LDS3410207 Cross Screw ......LDP1100040 31 Gasket 63/71 .....
  • Page 22: Cbm240E

    CBM240E...
  • Page 23 CBM240E No. Description Part No. No. Description Part No. 29 Shaft With Bearings LDS3111009 1 Filter LDP1591076 2 Cross Screw LDP1100040 30 Stator LDS3410207 3 Nipple LDP1590023 31 Gasket 63/71 LDS3500199 4 Joint O-ring LDP1200002 32 Base Capacitor Holder LDS3500212 5 Spring-washer LDP1120021 33 Capacitor...
  • Page 24: Handy Pump 2

    HANDY PUMP 2...
  • Page 25 HANDY PUMP 2 Item Description Part Number 1 ..... Pump Housing ............1 ....LDS3220002 2 ..... Screw 3/8" Gas ............2 ....LDS3500009 3 ..... Joint O-Ring ............2 ....PLD1200004 4 ..... Screw ............... 8 ....PLD1100025 5 ..... Washer ..............8 ....PLD1120006 6 .....
  • Page 26: Cbm100Ss & Cbm130Ss

    CBM100SS & CBM 130SS...
  • Page 27 CBM100SS & CBM 130SS No. Description Qty Part No, No. Description Qty Part No, Pump housing LPS3220002 30 Screw LPP1100006 Joint O.Ring LPP1200004 31 Cap capacitor holder LPS3500218 Screw 3/8" GAS LPS3500009 32 Spring-washer LPP1120003 Non-return valve M/M 1" LPS3600098...
  • Page 28: Cbm250Ss

    CBM250SS CBM250SS...
  • Page 29 CBM250SS No. Description Qty Part No, No. Description Qty Part No, Tab Terminal LDP1390011 39 Cap Capacitor Holder LDS3500218 40 Spring washer LDP1120003 Joint LDP1240025 41 Cable fastener LDP1510004 Flexible Pipe LDP1690044 Cross Screw LDP1100039 42 Earth screw LDP1100055 Spring Washer LDP1120021 43 Washer LDP1120051...
  • Page 30: Accessories

    ACCESSORIES Please contact your CLARKE dealer who will be happy to advise you regarding the accessories listed below. 1” Foot Valve Filter ..............7950561 1” BSP Spigot Hose Connector ..........7950210 1” I.D. Reinforced Hose for suction and delivery....7955010 1”...
