Summary of Contents for Clarke CSD4

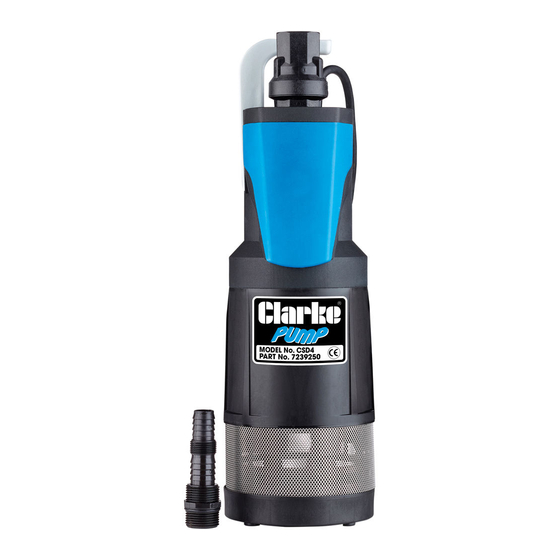

- Page 1 MULTISTAGE SUBMERSIBLE PUMP MODEL NO: CSD4 PART NO: 7239250 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0819 - ISS 1...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE submersible pump. The pump is designed for domestic use, such as drying out basements and garages subject to flooding, and for pumping drainage wells, rainwater collecting traps etc. Due to its compact shape, it is also used as a portable pump for emergency situations such as for drawing water from tanks or rivers, draining swimming pools and fountains, excavations or underpasses. -
Page 3: Specifications
SPECIFICATIONS Dimensions (D x H) 148 mm (major diameter) x 400 mm Weight 9.35 kg Cable Length 15 m Power Supply 230V ~ 50Hz Ingress Protection IPX8 Outlet Thread Diameter 1”BSP Rated Power 1100 W Maximum Head Height 48 m Maximum Flow 95 l/min Lowest Residual Water... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS GENERAL 1. Read all these instructions before use and save them for future reference. 2. An approved residual current device (RCD) which has a tripping current of less then 30 mA MUST be used for all operations. 3. The electrical supply must be the same as that on the rating plate. 4. -
Page 5: Electrical Connections
8. NEVER use the submersible pump in a swimming pool when there are people or animals in the pool. 9. Keep the pump clear of any sediment by standing it on a platform or brick or suspending it at a suitable depth. ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS... -
Page 6: Installing The Pump
(not supplied) to either the screwed end or push-fit. • Suitable hoses are available from your local CLARKE dealer. • The stepped adaptor can be cut off with a hacksaw if a larger hose is to be used. -
Page 7: Operating The Pump
• The water inlet must be fully submerged before the pump is switched on and the pump be standing upright. 5. Connect the power cable to a high sensitivity residual current device (RCD) which has a tripping current of less then 30mA. OPERATING THE PUMP WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY. -
Page 8: Maintenance
This pump should require no maintenance other than regular cleaning. If the pump shows signs of wear or damage contact your CLARKE dealer for advice. GENERAL CLEANING Check the pump regularly to ensure the water inlet is clear of leaves or other debris. -
Page 9: Troubleshooting
5. The impeller may be jammed. Disconnect from the mains supply and remove any objects that may be obstructing the impeller. 6. If the pump still fails to start, consult your CLARKE dealer for advice. PUMP WILL 1. Check that the inlet is not blocked. - Page 10 COMPONENT PART KITS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
