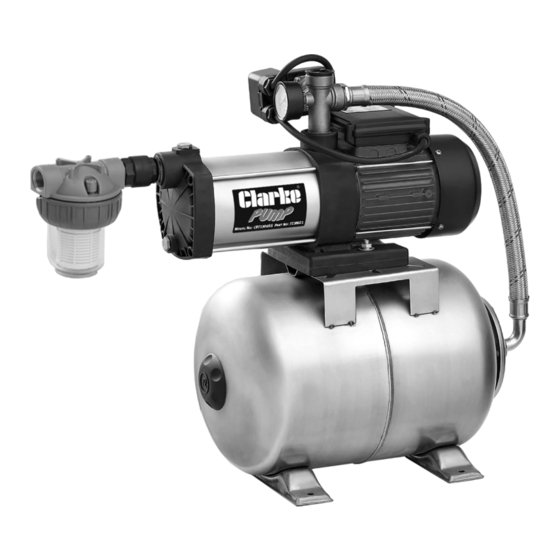

Booster pump

Advertisement

Quick Links

BOOSTER PUMP
MODEL NO: CBT1300SS
PART NO: 7238020
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC09/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBT1300SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke CBT1300SS

  • Page 1 BOOSTER PUMP MODEL NO: CBT1300SS PART NO: 7238020 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC09/22...
  • Page 2: Environmental Recycling Policy

    INTRODUCTION Thank you for purchasing this CLARKE Booster Pump. which is suitable for a variety of applications involving the transfer of clean, cold water (up to a maximum of 35 C) for domestic and gardening applications. Please read this manual thoroughly and ensure you are familiar with all aspects relating to your particular pump before its connection and use.
  • Page 3: Specification

    SPECIFICATION Model CBT1300SS Maximum Delivery 90 L/min Maximum Head 35 m (as set with pressure switch) Operating Pressure 3.5 Bar Ingress Protection Rating IPx5 Supply 230V ~ 50Hz Rated Input Power 1350 W Rated output Power 1050 W Input current @ Maximum Head 5.42 A...
  • Page 4: General Safety Precautions

    The use of non standard parts could be hazardous. 10. NEVER use this product if any part is damaged. Have it inspected and repaired by your local Clarke dealer. Always turn the pump off before carrying out any maintenance. 11. NEVER allow the pump to run dry.
  • Page 5: Electrical Installation

    ELECTRICAL INSTALLATION WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch. This product may be fitted with a non-rewireable plug.
  • Page 6: Installation Of The Pump

    Because of the variety of possible installations, no plumbing accessories are supplied as standard with your pump. However, accessories designed specifically for this range of pumps are available from your CLARKE dealer. The performance of your pump will be effected by the diameter of the inlet pipe - any restriction will greatly reduce the flow.
  • Page 7: Preparation For Use

    THE INLET FILTER An inlet filter is supplied with the CBT1300SS pump. The filter bowl is transparent, allowing a visual check as to the condition of the filter cartridge. The filter cartridge is a...
  • Page 8: Priming The Pump

    These pressures are factory set but can be adjusted using the plastic screw on the pressure switch. The pump may continue to operate for a short while after the supply valve is turned off until the cut-out pressure is reached. In order for the system to operate correctly it is necessary to pressurise the air chamber to 3.5 Bar (50psi),...
  • Page 9: Care And Maintenance

    The pump should not be taken apart by the user if overhaul is required, but should be taken to your nearest CLARKE dealer for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 10: Troubleshooting

    Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your CLARKE making poor seal. dealer for repair. Impeller / mechanical Return to your CLARKE seal is badly worn. dealer for repair.
  • Page 11 Stop pump and unstable. re-position. Air pocket in pump or Release plug in impeller pipeline. housing to release air. Damaged impeller Return to your CLARKE dealer for repair. PF1 FILTER SUPPLIED WITH THE PUMP Description Transparent body Filter cartridge O-ring Top body...
  • Page 12: Component Parts

    COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 13 COMPONENT PARTS ID DESCRIPTION ID DESCRIPTION Brass screw plug Terminal box screw Suction end casing Seal Self priming cover Terminal box Locking nut Cable clamp Impeller Screw s/t Diffuser Terminal block End bushing Screw s/t Pump housing Terminal box cover Circlip Capacitor Discharge section...
  • Page 14 DECLARATION OF CONFORMITY - UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 15: Declaration Of Conformity (Ce)

    DECLARATION OF CONFORMITY - CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
