Summary of Contents for Clarke CEB103

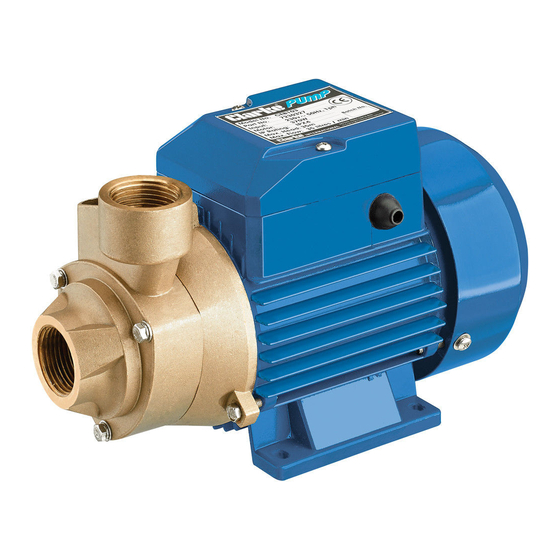

- Page 1 NON-SUBMERSIBLE WATER PUMP MODEL NO: CEB103 PART NO: 7230327 OPERATION & MAINTENANCE INSTRUCTIONS LS0716...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Water Pump, which is a general purpose pump, suitable for a variety of applications involving the transfer of clean, cold water ONLY. To help ensure long, trouble free performance and the protection afforded by the warranty, please follow carefully all the instructions and recommendations given in this booklet. -
Page 3: Safety Precautions
11. ALWAYS install a foot valve/filter when lifting water (suction lifting) Foot filters are available from your CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: THIS MACHINE MUST BE EARTHED. It is strongly recommended that installation should only be carried out by a qualified electrician in accordance with I.E.E. Regulations. However, in the further interests of safety we would emphasize the following:- This pump should be connected to a standard domestic 230 volt (50Hz), electrical supply and we strongly recommend that the connection be made via a Residual Current Device (RCD) and a suitably rated circuit breaker. -
Page 5: Water Connections
Because of the variety of possible installations, no plumbing accessories are supplied as standard with your pump. However, accessories designed specifically for this range of pumps are available from your CLARKE dealer and are listed on page 7. The pump must always be installed and operated in a horizontal position i.e. -
Page 6: Troubleshooting
Do not place any such restriction on the suction side of the pump unless it serves only to isolate a gravity fed water supply. To prevent unnecessary strain or possible distortion to the pump, ensure that adequate support is provided to the hoses and/or pipes. Remember they will be considerably heavier when filled with water. -
Page 7: Specifications
5.4 kg Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the pump’s data plate... -
Page 8: Parts List And Diagram
PARTS LIST AND DIAGRAM Description Part No Description Part No Screw ZGCEB10301 Cable Seal ZGCEB10316 Pump Body ZGCEB10302 Power Cable Lock ZGCEB10317 Impeller ZGCEB10303 Terminal Block ZGCEB10318 Screw ZGCEB10304 Seal ZGCEB10319 Motor Front Cover ZGCEB10305 Capacitor ZGCEB10320 Ball Bearing ZGCEB10306 Screw ZGCEB10321 Motor Rotor... -
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 10 ALSO AVAILABLE FROM YOUR CLARKE DEALER INDUSTRIAL WATER PUMPS - CPE RANGE Heavy duty self-priming pumps suitable for domestic, agricultural & industrial applications, particularly for boosting mains pressures and general water transfer. • 1.5” & 2” models supplied with hose couplings.
- Page 11 ELECTRONIC CONTROL UNIT IN-LINE FILTER EPC1000 In-Line Filter Top quality fi lter ideal for use with This in-line device maintains water SPP3 and SPP6 swimming pool pumps. pressure from booster pumps by This fi lter can also be used with many instantly sensing water usage and of our other 1”...
