- Page 1 HD - TVI/ AHD/ HD - CVI/ CVBS Distributor Series User Manual Model : C D102HD 1 x 2 HD- TVI/AHD/HDCVI/CVBS Video Distributor Smart Cabling & Transmission Corp. V1.0...

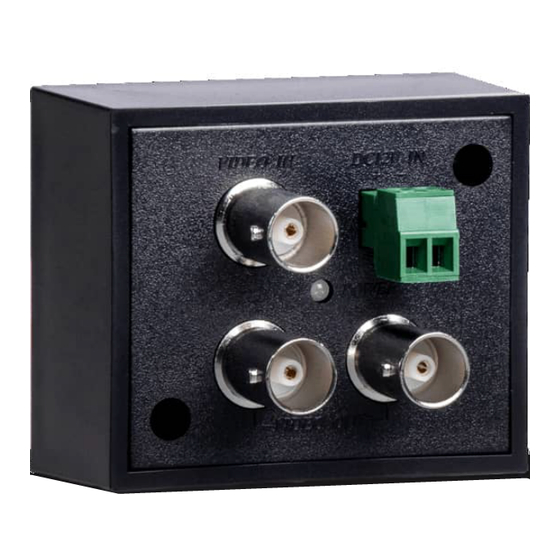

- Page 2 User Manual CD102HD Introduction CD102HD is a video distributor that can split an HD-TVI/ AHD/ HDCVI/ CVBS signal into 2 ones with up to 4K (8MP) resolution. Features Extends and splits a video signal into 2 ones. Supports HD-TVI, AHD, HDCVI, 960H, NTSC, PAL video signal. ...
- Page 3 User Manual CD102HD Specifications ITEM NO. CD102HD Support Video Format HD-TVI, AHD, HDCVI, 960H, NTSC, PAL Max. Video Resolution Video Bandwidth 350 MHz -3dB Bandwidth 50Hz to 60MHz (-3dB) Ports & Interfaces Video Input 1 x BNC (0.8 to 1.2Vp-p, 75Ω) Video Output 2 x BNC (1V p-p, 75Ω) Power...
