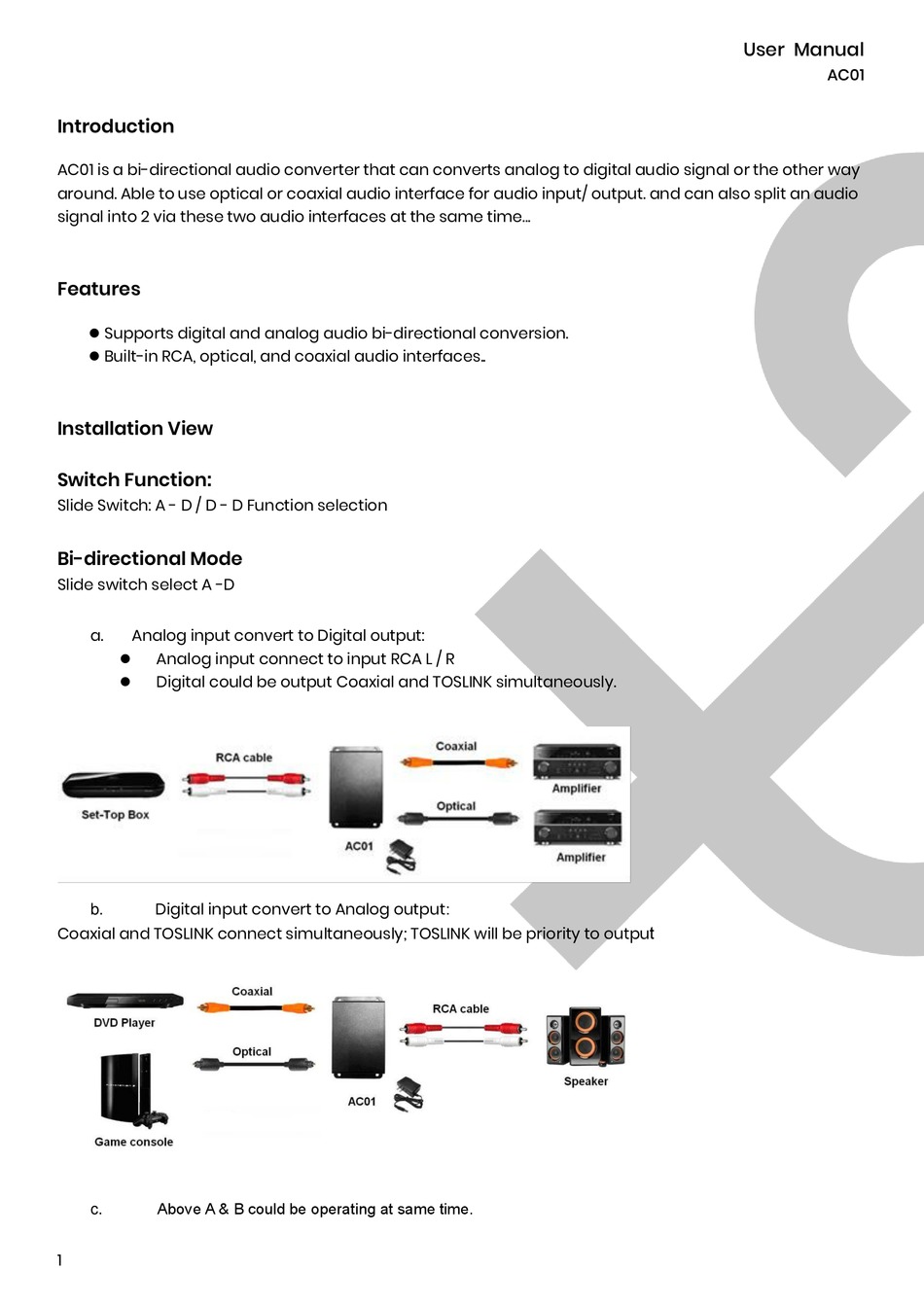

SC&T Audio Converter Series User Manual page 2

Introduction
AC01 is a bi-directional audio converter that can converts analog to digital audio signal or the other way
around. Able to use optical or coaxial audio interface for audio input/ output. and can also split an audio
signal into 2 via these two audio interfaces at the same time...
Features
 Supports digital and analog audio bi-directional conversion.
 Built-in RCA, optical, and coaxial audio interfaces..
Installation View
Switch Function:
Slide Switch: A - D / D - D Function selection
Bi-directional Mode
Slide switch select A -D
a. Analog input convert to Digital output:
Analog input connect to input RCA L / R

Digital could be output Coaxial and TOSLINK simultaneously.

Digital input convert to Analog output:
b.
Coaxial and TOSLINK connect simultaneously; TOSLINK will be priority to outpu
Above A & B could be operating at same time.
c.
1
User Manual
t
AC01
