Install Mounting Bracket; Assemble End Gable - Teknion transit Installation Manuals

transit
Installation Guides
Section: WORKSURFACE SUPPORTS AND ACCESSORIES
Description: FIXED HEIGHT MOUNT BRACKET & END GABLE

INSTALL MOUNTING BRACKET

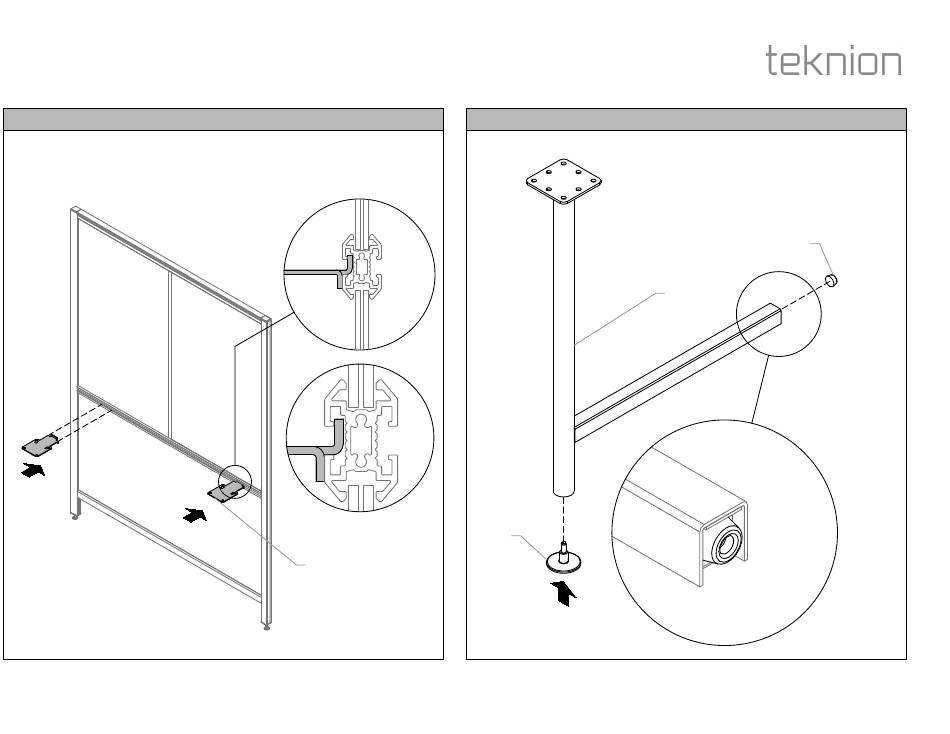

STEP 1: Install Mounting Bracket by engaging it onto the Transit Frame.
A1, B1
STEP 2: Assemble End Gable by using Leveler and End Bumper.

ASSEMBLE END GABLE

B4
B8
Date: May 2018 Page No: 2 of 8
TST_267
B6
