Section: WORKSURFACE SUPPORTS AND ACCESSORIES
Description: FIXED HEIGHT MOUNT BRACKET & END GABLE

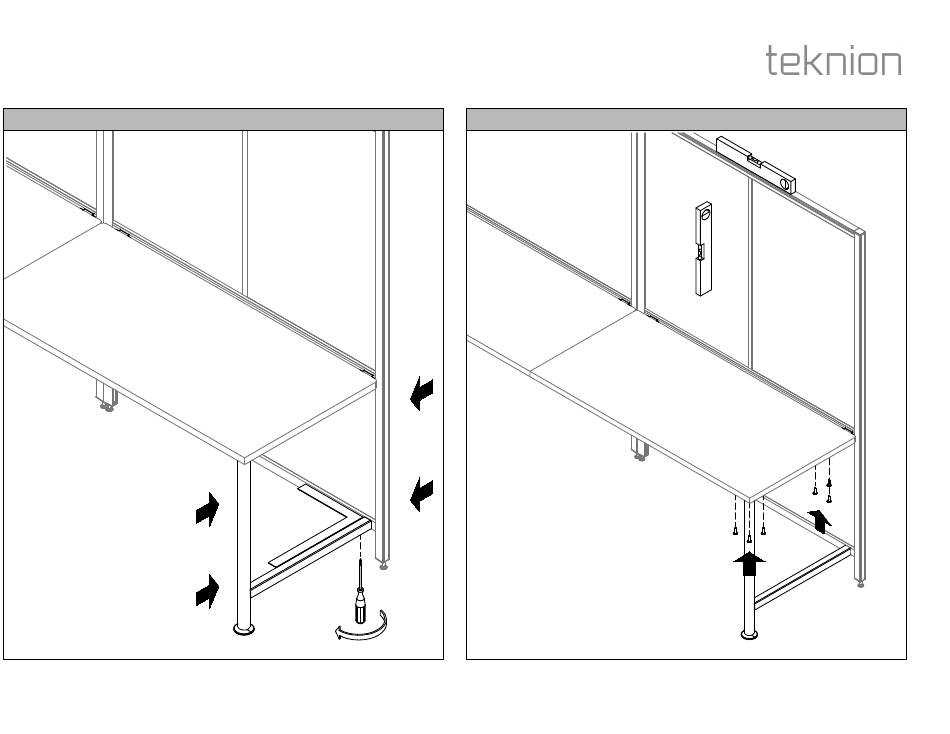

SECURE END GABLE

STEP 7: Push End Gable against the Panel and tighten screws of End Gable Tether to bottom
rail of Lyft Panel.
NOTE: Ensure End Gable Weldment is square.

SECURE WORKSURFACE

STEP 8: Fasten End Gable and Fixed Height Mounting Bracket to the Worksurface by using
Wood Screws provided.
Date: May 2018 Page No: 5 of 8
TST_267
