transit
Installation Guides
Section:
WORKSURFACE SUPPORTS AND ACCESSORIES
Description:
FIXED HEIGHT MOUNT BRACKET & END GABLE

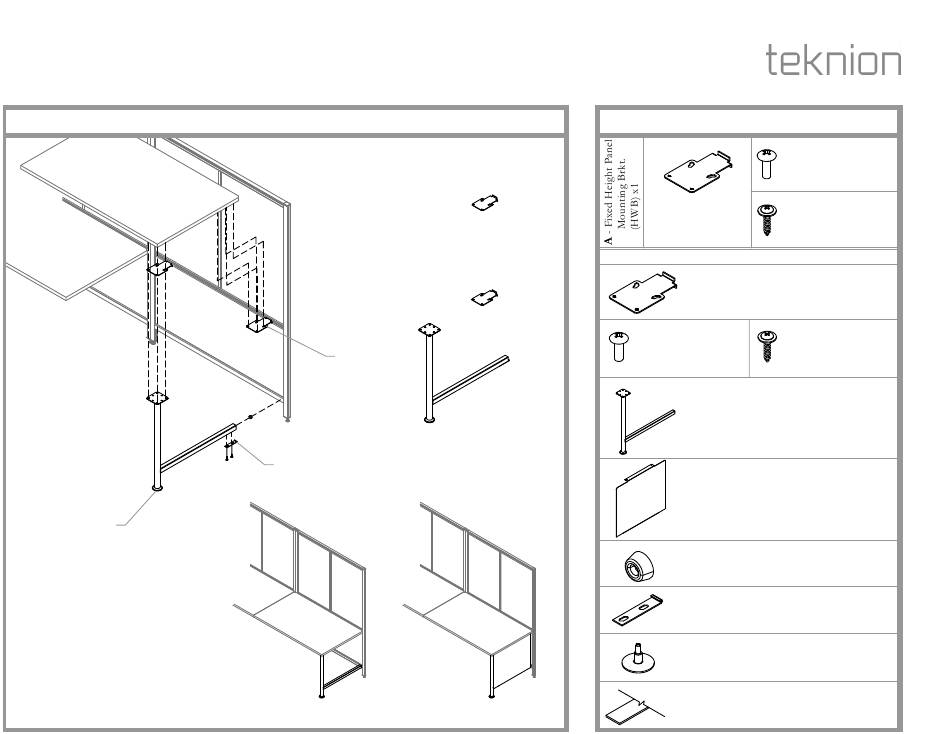

Fixed Height Mount Bracket (HWB), End Gable (HEG)
B4
A1, B1
B7
Without Infill Panel
HWB
HEG
With Infill Panel
Date:
May 2018
TST_267
Part and Product Identification
A3 - #10x0.875" LG.
A1 - Thin Panel
Screw, Quad Pan
Mounting Bracket
Washer
(A15-5489) x2
(E07-0077) x8
B - End Gable (HEG) x1
B1 - Thin Panel Mounting Bracket
(A15-5489) x1
B2 - 1/4-20x3/4" Mach.
B3 - #10x0.875" LG.
Screw, Quad Truss
(E01-2010) x10
B4 - End Gable with Inserts
(N09-0836) x1
B5 - Infill, Flush End Gable
(A15-5492) x1
B6 - End Gable Bumper
(D06-4027) x1
B7 - End Gable Tether
(A15-5490) x1
B8 - Leg Leveler
(N09-0308) x1
B9 - Foam Tape
(E08-0092) x1
Page No:
1 of 8
Rev. No: 1
Screw, Quad Pan
Washer
(E07-0077) x14
Advertisement
Table of Contents
Related Manuals for Teknion transit
Summary of Contents for Teknion transit
- Page 1 Installation Guides Section: WORKSURFACE SUPPORTS AND ACCESSORIES Date: May 2018 Page No: 1 of 8 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 Rev. No: 1 Fixed Height Mount Bracket (HWB), End Gable (HEG) Part and Product Identification A3 - #10x0.875"...
- Page 2 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 INSTALL MOUNTING BRACKET ASSEMBLE END GABLE A1, B1 STEP 1: Install Mounting Bracket by engaging it onto the Transit Frame. STEP 2: Assemble End Gable by using Leveler and End Bumper.
- Page 3 Installation Guides Section: WORKSURFACE SUPPORTS AND ACCESSORIES Date: May 2018 Page No: 3 of 8 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 INSTALL END GABLE ASSEMBLY INSTALL WORKSURFACE A2, B2 STEP 3: Install the End Gable Assembly in place by loose tightening the Screws.
- Page 4 Installation Guides Section: WORKSURFACE SUPPORTS AND ACCESSORIES Date: May 2018 Page No: 4 of 8 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 LEVEL ASSEMBLY FASTEN FRONT SCREW STEP 5: Level the assembly to make sure the Worksurface and Panel are at right position.
- Page 5 Installation Guides Section: WORKSURFACE SUPPORTS AND ACCESSORIES Date: May 2018 Page No: 5 of 8 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 SECURE END GABLE SECURE WORKSURFACE STEP 7: Push End Gable against the Panel and tighten screws of End Gable Tether to bottom STEP 8: Fasten End Gable and Fixed Height Mounting Bracket to the Worksurface by using rail of Lyft Panel.
- Page 6 Installation Guides Section: WORKSURFACE SUPPORTS AND ACCESSORIES Date: May 2018 Page No: 6 of 8 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 INFILL FLUSH END GABLE INSTALLATION STEP 9: Mount the Gable Infill onto the Gable Assembly as illustrated.
- Page 7 Installation Guides Section: WORKSURFACE SUPPORTS AND ACCESSORIES Date: May 2018 Page No: 7 of 8 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 SECURE GABLE INFILL STEP 10: Secure Gable Infill in place by using the screws provided.
- Page 8 Installation Guides Section: WORKSURFACE SUPPORTS AND ACCESSORIES Date: May 2018 Page No: 8 of 8 Description: FIXED HEIGHT MOUNT BRACKET & END GABLE TST_267 NOTES:...
