Teknion transit Installation Manuals

transit

Installation Guides

Section:

WORKSURFACES & COUNTERTOPS

Description:

P-TOP & MODIFIED P-TOP WORKSURFACE

P-Top Worksurface (TWPS), Modified P-Top Worksurface (TWMP)

Date:

May 2018

TST_204

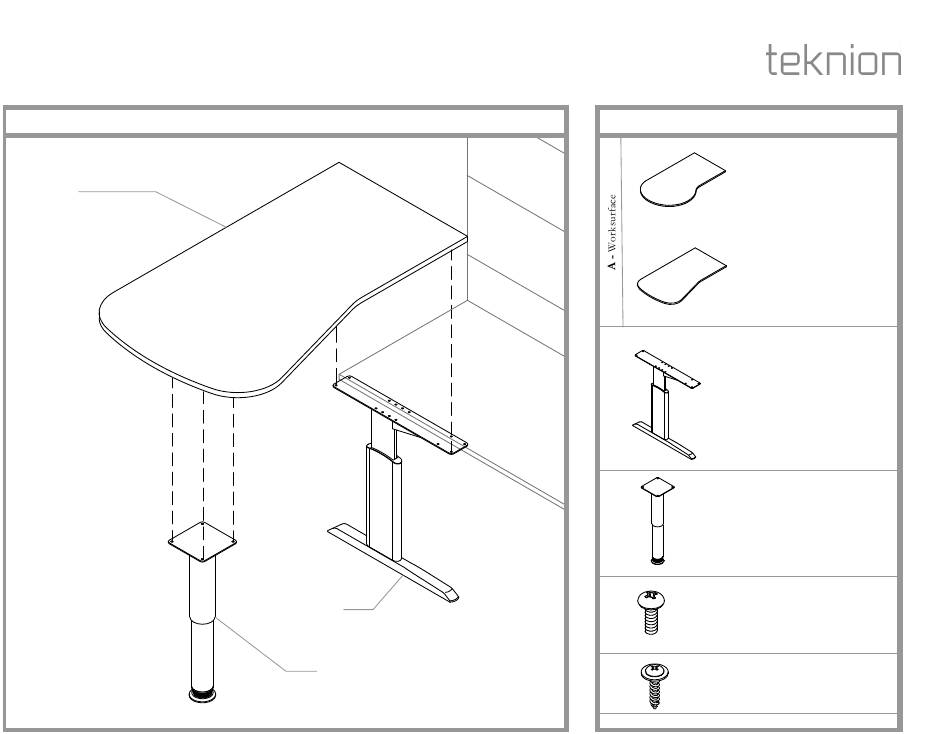

Part and Product Identification

A1 - P-Top Worksurface

(TWPS) x1

A2 - Modified P-Top

Worksurface

(TWMP) x1

B - C-Leg Assembly

(TLCL) *

C - Semi-Suspended Monoleg

(TLSM) *

D - 1/4"-20 x 5/8" UNC-2A

Cross/Square Comb Truss

Hd Machine Screw Zinc

(E01-0098) *

E - #10 x 1" LG. Quadrex, Pan

Washer Head. ZP.

(E07-0077) *

* Parts/Products listed for reference ONLY.

Page No:

1 of 4

Rev. No: 01

Table of Contents

Need help?

Do you have a question about the transit and is the answer not in the manual?

Page 1 Installation Guides Section: WORKSURFACES & COUNTERTOPS Date: May 2018 Page No: 1 of 4 Description: P-TOP & MODIFIED P-TOP WORKSURFACE TST_204 Rev. No: 01 P-Top Worksurface (TWPS), Modified P-Top Worksurface (TWMP) Part and Product Identification A1 - P-Top Worksurface...
Page 2 Installation Guides Section: WORKSURFACES & COUNTERTOPS Date: May 2018 Page No: 2 of 4 Description: P-TOP & MODIFIED P-TOP WORKSURFACE TST_204 INSTALL SUPPORTS FLIP ASSEMBLED WORKSURFACE STEP 1: Lay the Worksurface upside down onto a clean surface. Align the holes on the Support STEP 2: Flip the assembled Worksurface and Supports back into the original orientation.
Page 3 Installation Guides Section: WORKSURFACES & COUNTERTOPS Date: May 2018 Page No: 3 of 4 Description: P-TOP & MODIFIED P-TOP WORKSURFACE TST_204 CONNECT WORKSURFACE SECURE WORKSURFACE STEP 3: Connect the Worksurface to the perpendicular Worksurface. STEP 4: Align the holes on the C-Leg (TLCL) with the holes on the perpendicular...
Page 4 Installation Guides Section: WORKSURFACES & COUNTERTOPS Date: May 2018 Page No: 4 of 4 Description: P-TOP & MODIFIED P-TOP WORKSURFACE TST_204 LEVEL THE WORKJSURFACE STEP 5: Level the Worksurface by adjusting the glide on the Semi-Suspended Monoleg (TLSM) and the C-Leg (TLCL).
