interpret
Section:
Description:
Chicago Power Module - Single Sided Frame (WWEPMCH), Power Tray
(WWEPTS)
B
E
F
A
NOTE: Please refer to
Installation Guide No. INT_405
for information on Power Tray.
Date:
Feb 2017
INT_408b

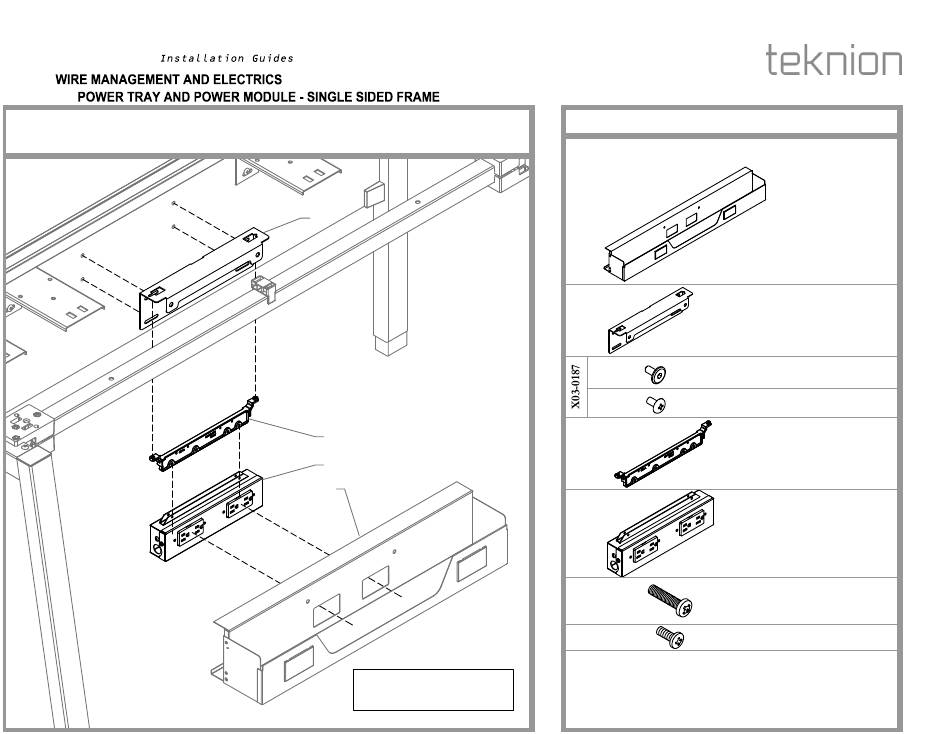

Part and Product Identification
A - Interpret Single Sided Power
Tray (WWEPTS) x 1
B - Mounting Bracket Assembly
(
N09-4250) x 1
C - 1/4 - 20 x 15 mm, Zinc
Murakoshi Screw (E01-0635) x 2
D - 1/4 - 20 UNC x 0.500" Cross
Head Mach Screw (E01-0110) x 4
E - Hook for plastic ERQ
(MPA25-E071) x 1
F - Chicago Power Module - Single
Sided Table (
WWEPMCH) x 1
G - 8-32 3/4" Pan Head Quad
Machine Screw
(FS8-32X0.75QRZ) x 2
H -10-32 1/2" Long Pan Head Quad.
Mach. (FS10 x 32X0.50QRZ) x 2
For Customer Support please contact
product.support@teknion.com
Page No:
1 of 7
Rev. No: 1
Advertisement
Related Manuals for Teknion Interpret Chicago WWEPMCH
Summary of Contents for Teknion Interpret Chicago WWEPMCH
- Page 1 G - 8-32 3/4" Pan Head Quad Machine Screw (FS8-32X0.75QRZ) x 2 H -10-32 1/2" Long Pan Head Quad. Mach. (FS10 x 32X0.50QRZ) x 2 For Customer Support please contact product.support@teknion.com NOTE: Please refer to Installation Guide No. INT_405 for information on Power Tray.
- Page 2 interpret Section: Date: Feb 2017 Page No: 2 of 7 Description: INT_408b ATTACH BRACKET TO MODESTY STEP 1: Fasten Bracket to Modesty Panel using screws provided.
- Page 3 interpret Section: Date: Feb 2017 Page No: 3 of 7 Description: INT_408b INSERT HOOK INTO BRACKET INSERT HOOK INTO BRACKET STEP 2: Insert Hook for plastic ERQ to cut out of bracket. STEP 3: Slide Hook.
- Page 4 interpret Section: Date: Feb 2017 Page No: 4 of 7 Description: INT_408b SLIDE TO THE RIGHT Final Position STEP 4: Insert right Hook to other cut out of Bracket and slide to the right to secure in place.
- Page 5 interpret Section: Date: Feb 2017 Page No: 5 of 7 Description: INT_408b FASTEN HOOK STEP 5: Fasten Hook to Bracket with screws provided.
- Page 6 interpret Section: Date: Feb 2017 Page No: 6 of 7 Description: INT_408b POWER MODULE TO HOOK SCREW LOCATION STEP 6: Bring Power Module to Hook and fasten using screws provided.
- Page 7 interpret Section: Date: Feb 2017 Page No: 7 of 7 Description: INT_408b PLUG IN BASED FEED FASTEN POWER TRAY Cord from Chicago Base Feed NOTE: Licensed Electrician to install Chicago Base Feed NOTE: Please refer to Installation Guide No. INT_405 for information on Power Tray.
