transit
Installation Guides
Section:
WORKSURAFE SUPPORTS & ACCESSORIES
Description:
PEDESTAL SUPPORTING BRACKET
Pedestal Supporting Bracket (KSB)
Date:
May 2018
TST_269

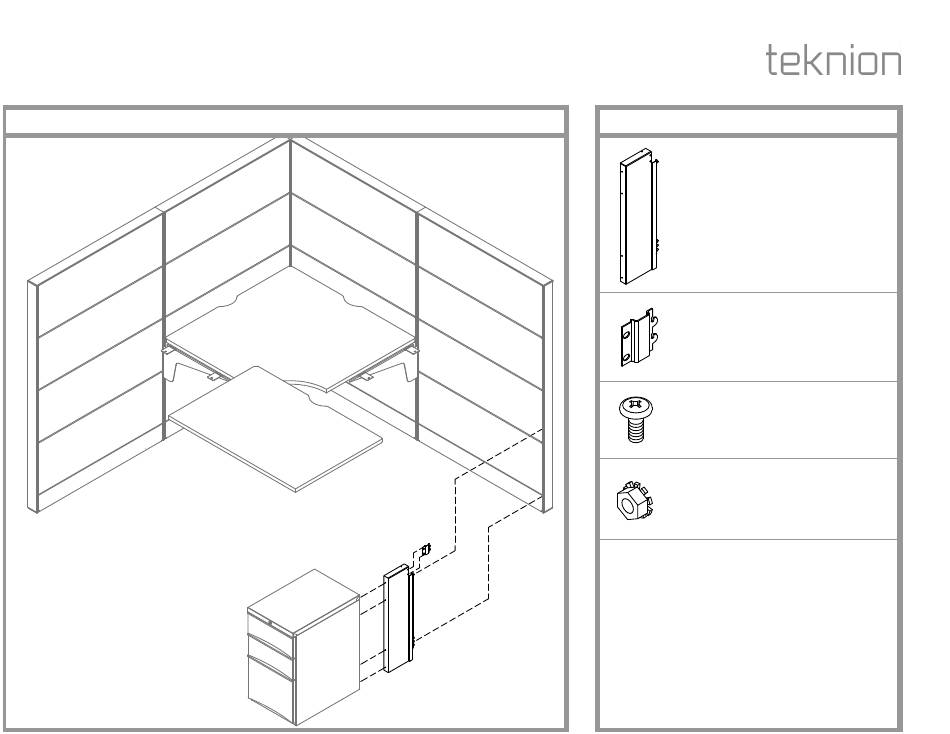

Part and Product Identification
A - Pedestal Support
Bracket Sub-Assy
(N01-2265) x1
B - Anti Dislodgement
Bracket
(A15-7972) x1
C - Machine Screw,
1/4-20x 1", Pan,
Quadrex, Black
(E07-0081) x4
D - 1/4-20 UNC. Nut
Hex Keps Zinc
(E03-0059) x2
Page No:
1 of 3
Rev. No: 1
Advertisement
Table of Contents
Related Manuals for Teknion Transit KSB
Summary of Contents for Teknion Transit KSB
- Page 1 transit Installation Guides Section: WORKSURAFE SUPPORTS & ACCESSORIES Date: May 2018 Page No: 1 of 3 Description: PEDESTAL SUPPORTING BRACKET TST_269 Rev. No: 1 Pedestal Supporting Bracket (KSB) Part and Product Identification A - Pedestal Support Bracket Sub-Assy (N01-2265) x1 B - Anti Dislodgement Bracket (A15-7972) x1...
- Page 2 transit Installation Guides Section: WORKSURAFE SUPPORTS & ACCESSORIES Date: May 2018 Page No: 2 of 3 Description: PEDESTAL SUPPORTING BRACKET TST_269 INSTALL PEDESTAL BRACKET INSTALL PEDESTAL & BRACKET ASSEMBLY STEP 1: Install Pedestal Bracket onto the Pedestal Back using the screws provided. STEP 2: Install Pedestal and Bracket Assembly by engaging the Bracket ends into the slots of Transit Frame.
- Page 3 transit Installation Guides Section: WORKSURAFE SUPPORTS & ACCESSORIES Date: May 2018 Page No: 3 of 3 Description: PEDESTAL SUPPORTING BRACKET TST_269 LEVEL PEDESTAL INSTALL ANTI-DISLODGEMENT BRACKET STEP 3: Make sure to Level the Pedestal after it is attached to the frame. STEP 4: Install Anti-Dislodgement Bracket by using the Screws provided.
