24" - 48" wide Return Frame for Single Worksurface (WWSRS),
24" - 48" wide Single Return Worksurface (WWWRRS)
G
Curve Leg without infill shown
F
D
B1
A1
A2
For Customer Support please contact
product.support@teknion.com
Date:
Jan. 2017
INT_003b

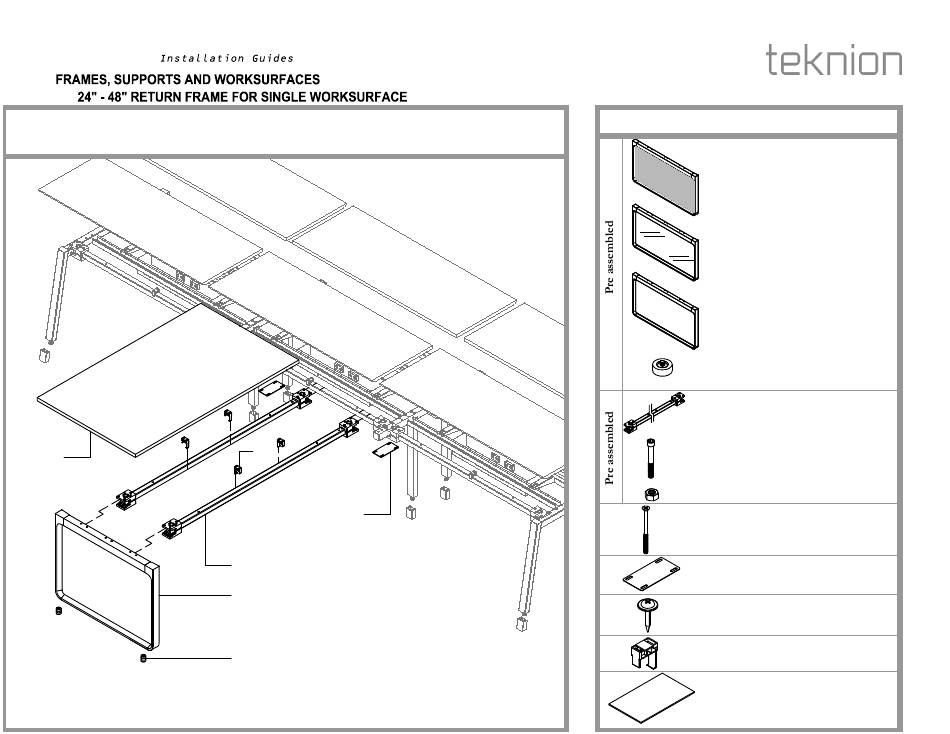

Part and Product Identification

A1 - Curve Leg with Wood Infill
(N02-2365) x1
OR
or
Curve Leg with Glass Infill
(N02-2349) x1
OR
or
Curve Leg Open
(N02-2363) x1
A2 - Curve Leg Leveler Add-on
Puck
(A18-0242) x8
B1 - Reverse Transverse Beam
Assembly
(N02-3696) x2
B2 - 5/16-18x2.5 Long, Socket Head
Cap Screw
(E01-0756) x14
B3 - 5/16-18 Hex Nut, 1/2 A/F, .265
(E01-0755) x14
C - 1/4-20x3-12 Flat Head Machine
Screw Quadrex Drive
(E01-0771) x2
D - Flush Plate
(A15-6948) x2
E - #10x0.875" LG. Screw, Quad. Pan
Washer
(E07-0077) x8
F - Front Standoff
(B02-0658) x4
G - Single Return Worksurface
(WWWRRS) x1
Page No:
1 of 6
Rev. No: 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the interpret and is the answer not in the manual?

Questions and answers

Related Manuals for Teknion interpret

Summary of Contents for Teknion interpret

  • Page 1 Section: Date: Jan. 2017 Page No: 1 of 6 Description: INT_003b Rev. No: 02 24" - 48" wide Return Frame for Single Worksurface (WWSRS), Part and Product Identification 24" - 48" wide Single Return Worksurface (WWWRRS) A1 - Curve Leg with Wood Infill...
  • Page 2 Section: Date: Jan. 2017 Page No: 2 of 6 Description: INT_003b REMOVE MOUNTING SCREWS CLAMP RELOCATION DETAIL Mid Gable Connection Mid Gable Connection Beam and Screw position during future installation End Gable Connection (Curve Leg) Beam Connection STEP 1: Remove pairs of Screws and Nuts on both ends of Wing Beams Assemblies as shown.
  • Page 3 Section: Date: Jan. 2017 Page No: 3 of 6 Description: INT_003b FASTEN BEAMS TO THE LEG ASSEMBLY ATTACH TO DOUBLE SIDED FRAME End Gable Connection Double Sided Frames Position End Gable with holes facing inward. NOTE: Revere Screws and Nuts when Curve Leg has a solid or glass infill.
  • Page 4 Section: Date: Jan. 2017 Page No: 4 of 6 Description: INT_003b FASTEN TO DOUBLE SIDED FRAME LEVEL, SQUARE, INSERT LEVELER COVERS Part of Double Sided Frame Kit NOTE:Use as many Pucks as required. They have to be FULLY ENGAGED and there should be NO...
  • Page 5 Section: Date: Jan. 2017 Page No: 5 of 6 Description: INT_003b INSERT FRONT STANDOFFS WORKSURFACE ALIGNMENT Double sided Frame Worksurface. Wire Gap shown. Align edges Step 7: Line up inserts under the Worksurface and holes in Clamp Brackets and drop STEP 6: Insert Front Standoffs, spacing them evenly along both beams.
  • Page 6 Section: Date: Jan. 2017 Page No: 6 of 6 Description: INT_003b FASTEN WORKSURFACE DETAILS STEP 8: Attach Worksurface to the Frame using machine screws. Connect Worksurfaces with Flush plates. Tighten all screws.
