Section:
ERGONOMICS AND ACCESSORIES
Description:

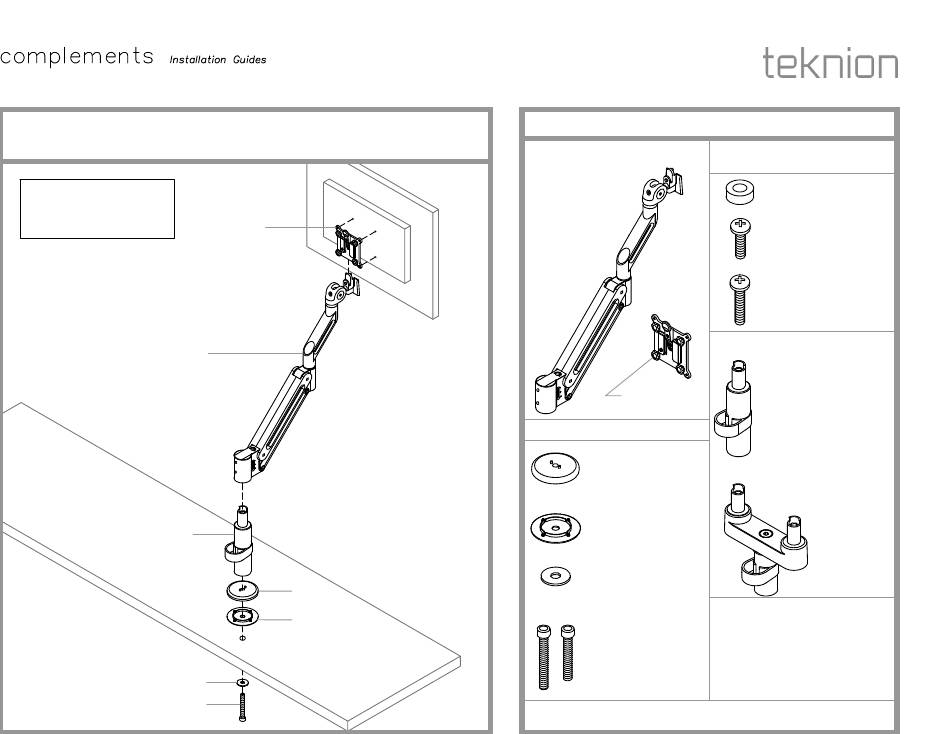

MAST DYNAMIC ARM - BOLT THRU MOUNT
Mast Dynamic Arm with Bolt Thru Mount (YMSTD) and
Mast Dynamic Arm Light with Bolt Thru Mount (YMSTX)
NOTE: Mast Single Dynamic
Arm shown.
Please refer to Page 7 and 8 for
Monitor Removal.
G
VESA
PLATE
A
C1
C2
C3
C4
Part and Product Identification
A - Dynamic Arm (N09-5874) x1
Mast VESA Plate
(N09-5826) x1
C - Bolt Thru Mount (D06-4176) x1
C1 - Mast Stanchion
Base Through
Clamp
(MST-069) x1
C2 - Through Clamp
Cover Plate
(MST-143) x1
C3 - M12 Fender Washer
(MST-107) x1
C4 - M12x1.75 SHCS
90mm Bolt
(MST-164) x1
OR
M12x1.75 SHCS
80mm Bolt
(MST-165) x1
Date:
Sep 2021
Page No:
1 of 7
COM_210a
Rev. No: 7
VESA Plate Mounting Kit(optional)
(must be ordered seperately)
D - Black Spacer
(E03-0806) x4
E - M4x16mm Pan Head
Machine Screw
(E01-0999) x4
F - M4x10mm Pan Head
Machine Screw
(E01-1096) x4
G - Single Arm Stanchion
(N09-5875) x1
OR
H - Dual Arm Stanchion
(N09-5876) x1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion YMSTR
Summary of Contents for Teknion YMSTR
- Page 1 Section: ERGONOMICS AND ACCESSORIES Date: Sep 2021 Page No: 1 of 7 Description: MAST DYNAMIC ARM - BOLT THRU MOUNT COM_210a Rev. No: 7 Mast Dynamic Arm with Bolt Thru Mount (YMSTD) and Part and Product Identification Mast Dynamic Arm Light with Bolt Thru Mount (YMSTX) VESA Plate Mounting Kit(optional) A - Dynamic Arm (N09-5874) x1 (must be ordered seperately)
-
Page 2: Drill Holes
Section: ERGONOMICS AND ACCESSORIES Date: Sep 2021 Page No: 2 of 7 Description: Descriptions COM_210a DRILL HOLES ASSEMBLE STANCHION WORKSURFACE STEP 1: Pre-drill a "(12.7mm) diameter hole on Worksurface as per specification drawings. (See Application Guide for Guidelines.) NOTE: Make sure the distance from the back edge of the Worksurface to the center of the drilled hole is minimum of 3". - Page 3 Section: ERGONOMICS AND ACCESSORIES Date: Sep 2021 Page No: 3 of 7 Description: Descriptions COM_210a DYNAMIC ARM ASSEMBLY VESA PLATE ASSEMBLY VESA Plate Dual Arm Stanchion Installation (OPTIONAL) VESA Plate STEP 4: Mount Arm onto the Stanchion. STEP 5a: Screw VESA Plate to the back of computer monitor and fasten by turning the Knob clockwise.
- Page 4 Section: ERGONOMICS AND ACCESSORIES Date: Sep 2021 Page No: 4 of 7 Description: Descriptions COM_210a VESA PLATE ASSEMBLY (OPTIONAL) INSERT VESA PLATE VESA Plate STEP 5b: This step is optional. If inserts in the monitor are recessed use longer Screws and STEP 6: Slide VESA Plate on Dynamic Arm, make sure the spring tab clicks into the secure Spacers(Ordered Separately).
- Page 5 Section: ERGONOMICS AND ACCESSORIES Date: Sep 2021 Page No: 5 of 7 Description: Descriptions COM_210a ARM ROTATION AND STIFFNESS ADJUSTMENT ARM COUNTERBALANCE LOAD ADJUSTMENT Screw to adjust angle of rotation from 360° to 180° Screw to adjust stiffness of the arm rotation NOTE: Rotate Allen Key to "+"...
-
Page 6: Cable Management
Section: ERGONOMICS AND ACCESSORIES Date: Sep 2021 Page No: 6 of 7 Description: Descriptions COM_210a CABLE MANAGEMENT EXTEND DYNAMIC ARM (MONITOR REMOVAL) MONITOR REMOVAL Underside View Arm Wire Clip STEP 1: Move monitor to the highest position and make sure the arm is fully extended. NOTE: Lead cables into the Clip before clipping to Stanchion. - Page 7 Section: ERGONOMICS AND ACCESSORIES Date: Sep 2021 Page No: 7 of 7 Description: Descriptions COM_210a LOOSEN SET SCREW REMOVE MONITOR Hold Monitor in highlighted area STEP 3: Loosen the quick release override set screw if this has been tightened. Ensure the STEP 4: Hold the bottom of the monitor with one hand, depress and hold the Library Green Library Green safety latch is oriented upward.
