interpret
Section:
Description:
Solid End Gable Overlay - Single Sided (WWCBSS)
For Customer Support please contact
product.support@teknion.com

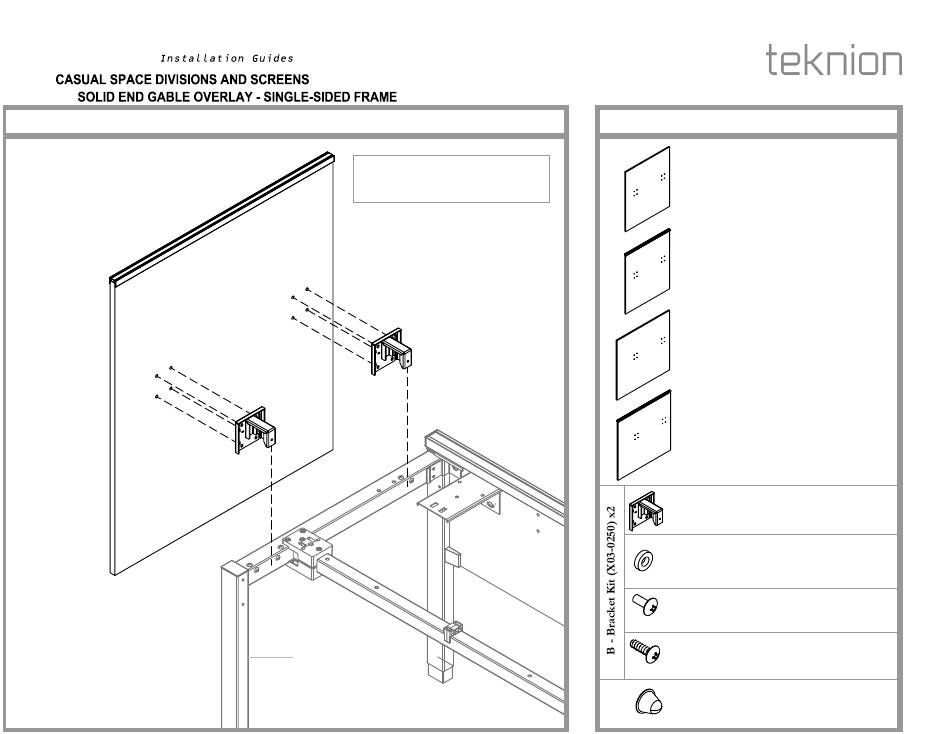

NOTE: Single Sided Frame and End
Gable Screen, Single Sided, Flush,
No Rail Shown as an example.
Single Sided End
Gable Frame
Date:
Feb. 2017
INT_210b
Part and Product Identification
A - End Gable Screen - Single Sided, Flush,
No Rail
(C05-7400) x1
or
End Gable Screen - Single Sided, Flush,
Top Rail
(N09-4495) x1
or
End Gable Screen - Single Sided,
Overhang, No Rail
(C05-8089) x1
or
End Gable Screen - Single Sided,
Overhang, Top Rail
(N09-4496) x1
B1 - End Gable Mounting Bracket, Interpret
(N09-4739) x1
B2 - 1/4ID x 1/2OD A 1/8Thick SBR
Flat Washer BLK
(E03-0582) x4
B3 - 1/4-20x5/8" Machine screw quad.
Truss HD
(E01-0098) x4
B4 - 1/4-20x7/8 QUADREX, Truss
Head Mach. Screw, Zinc
(E01-0872) x1
C - Clear Bumper, BS37, Self Adhesive,
.560"H
(E03-0574) x2
Page No:
1 of 4
Rev. No: 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the interpret and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknion interpret

Summary of Contents for Teknion interpret

  • Page 1 Overhang, No Rail (C05-8089) x1 End Gable Screen - Single Sided, Overhang, Top Rail (N09-4496) x1 B1 - End Gable Mounting Bracket, Interpret (N09-4739) x1 B2 - 1/4ID x 1/2OD A 1/8Thick SBR Flat Washer BLK (E03-0582) x4 B3 - 1/4-20x5/8" Machine screw quad.
  • Page 2 Section: Date: Feb. 2017 Page No: 2 of 4 Description: INT_210b ATTACH BRACKETS (L-HANDED SIDE SCREEN) MOUNT SCREEN Align NOTE: Left Handed Side NOTE: Make sure to align Screen shown as an example. the End Gable Screen with the Center Rail as shown.
  • Page 3 Section: Date: Feb.2017 Page No: 3 of 4 Description: INT_210b BUMPER LOCATIONS ATTACH CLEAR BUMPERS NOTE: Make sure Bumpers are on the location against the Legs and 1/4" away from the FRONT edge of the Screen. Side View Straight Leg...
  • Page 4 Section: Date: Feb. 2017 Page No: 4 of 4 Description: INT_210b SECURE SCREEN STEP 4: Secure Brackets to the Frame with Screws provided.
