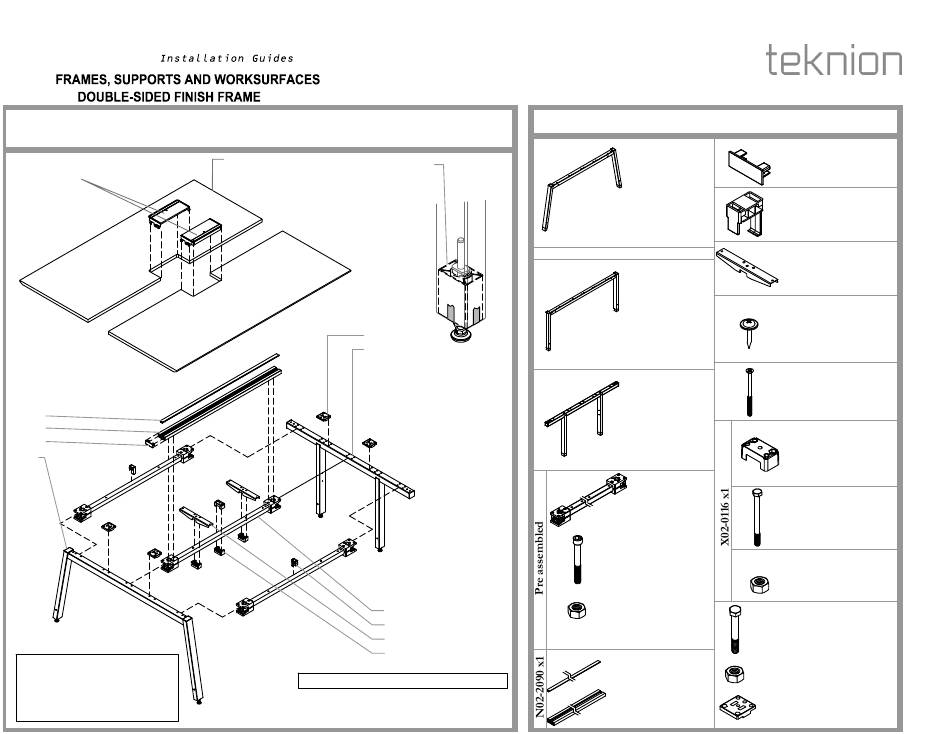

Teknion Interpret Installation Manuals

Hide thumbs Also See for Interpret:

Advertisement

Quick Links

Download this manual
interpret
Section:
Description:
Double- Sided Beginning Frame (WWSDB),
Power Cut-Out Worksurface (WWWRP)
Power Access
Doors
(WWEDR)
For installation see
Electrics section,
IG# INT_404
AE1
AE2
AF
AA
NOTE: Quantities of Front
Standoff (AG), Spacer (AN)
and Hardware (AI), (AL) &
(AM) change with the length
of the Frame.
Power Cut Out
Leveler Cover is
Worksurface
located inside Leg,
(WWWRP) x as
assembled and
per order
secured in place
with tape.
AN
AC
AD1
AG
AH
AK1
Angled Leg 78" Frame Assembly shown
For Customer Support please contact
product.support@teknion.com
Date:
INT_002a
Part and Product Identification
AA - Angled Leg
Assembly
(N02-3687) x1
OR
AB - Straight Leg
Assembly
(N02-3686) x1
AC - Mid Gable
Assembly
(N02-2053) x1
AD1 -Transverse
Beam Assembly
(N02-3688) x3
AD2 -5/16-18x2.5
Socket Head
Cap Screw
(E01-0756) x24
AD3 -5/16-18 Hex
Nut 1/2 A/F
AL - 5/16-18 x 2 1/2 LG,
.265 Th.
(E01-0755) x24
AE1 - Central Rail Cap
AM - 5/16-18 Hex Nut, 1/2
(A23-4058) x1
AE2 - Central Rail
AN - Spacer Bracket
Assembly
(A21-0888) x1
Feb 2017
Page No:
1 of 17
Rev. No: 8
AF - Central Rail Cap
Assembly
(N02-2149) x1
AG - Front Standoff
(B02-0658)
48"-72" x2
78"-96" x4
AH - Cantilever Brkt
(A16-4882\12)
x2
AI - #10x0.875" LG
Quad, Pan Wash.
(E07-0077)
48"-72" x4
78"-96" x8
AJ - 1/4-20x3-1/2 Fl
Mach. Quadrex
(E01-0771) x4
AK1 - Worksurface
Spacer Block
(A25-0547) x4
AK2 - 5/16-18x3.75
Hex Cap Screw
(E01-0799) x10
AK3 - 5/16-18 Hex
Nut1/2 A/F.265
(E01-0755) x10
Hex, Zinc (E01-1136)
78"-96" x4
A/F.265 (E01-0755)
78"-96" x4
(A25-0548) 78"-96" x4
